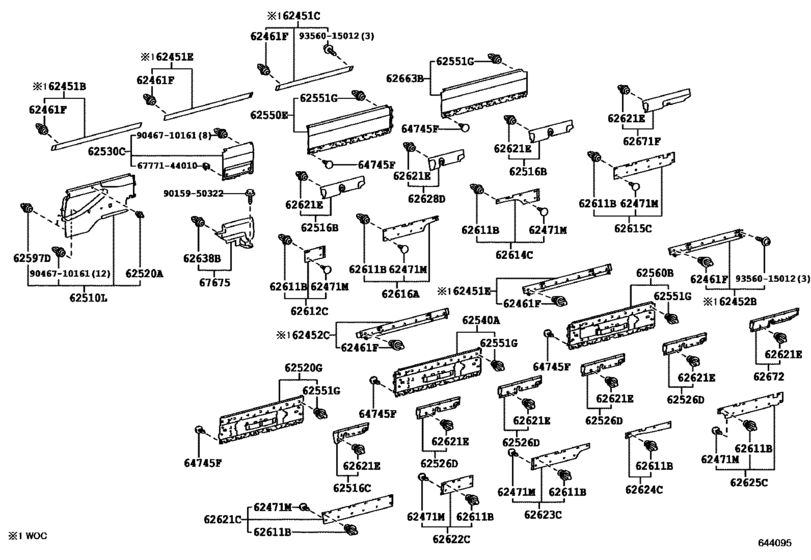

Inside Trim Board ([01.2017 - ] SIDE GARNISH & TRIM (1701- )BB60,TRB60..LHD..GEN) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62471M
|
62471M
90467-08104-B4 Clip[01.2017 -] BB60,BZB60,TRB60,XZB60 MD.GRAY,TRIM1# |
90467-08104-B4 |
US $1.10 |
||
|
62510L
|
62510L
62510-36480-B0
Trim Assy, Side No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
62510-36480-B0 |
— | ||
|
62510L
|
62510L
62510-36550-B0 Trim Assy, Side No.1[01.2017 -] BB60,HZB70..LHD..WC..GEN;TRB60,70,XZB70..(19S,20S,23S,25S,29S,30S)..STD..WC SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1# |
62510-36550-B0 |
US $214.99 |
||
|
62516B
|
62516B
62516-36100-B0 Cover, Side Trim Base, No.2 Rh[01.2017 -] BZB60,XZB60;BB60,TRB60,70..LHD..(19S,23S,26S) LT.GRAY,TRIM1# |
62516-36100-B0 |
US $42.52 |
||
|
62516C
|
62516C
62627-36010-B0
Cover, Side Trim Base, No.1 Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) LT.GRAY,TRIM1# |
62627-36010-B0 |
— | ||
|
62520A
|
62520A
90530-06009-B3 Fastener, Hook[01.2017 -] XZB70..DX;HZB70,TRB60..(20S,25S,30S)..WC;BB60,TRB70,XZB70..STD..WC..(GCC,GEN) SIDE WINDOW CURTAIN-WITH(FRONT & REAR),LT.GRAY,TRIM1# |
90530-06009-B3 |
US $1.76 |
||
|
62520G
|
62520G
62560-36460-B0
Trim Assy, Side No.1, Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
62560-36460-B0 |
— | ||
|
62526D
|
62526D
62526-36090-B0 Cover, Side Trim Base, No.2 Lh[01.2017 -] BB60,TRB60..LHD..GEN LT.GRAY,TRIM1# |
62526-36090-B0 |
US $42.52 |
||
|
62530C
|
62530C
62530-36410-B0
Trim Assy, Side No.2
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD..(GCC,GEN) LT.GRAY,TRIM1# |
62530-36410-B0 |
— | ||
|
62540A
|
62540A
62550-36310-B0 Trim Assy, Side No.2, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
62550-36310-B0 |
US $227.14 |
||
|
62550E
|
62550E
62550-36260-B0 Trim Assy, Side No.3, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
62550-36260-B0 |
US $238.06 |
||
|
62551G
|
62551G
90467-10161 Clip[01.2017 -] BB60,BZB60,TRB60,XZB60 |
90467-10161 |
from US $0.92 |
||
|
62560B
|
62560B
62560-36320-B0 Trim Assy, Side No.4 Lh[01.2017 -] BB60,TRB60..LHD LT.GRAY,TRIM1# |
62560-36320-B0 |
US $227.14 |
||
|
62597D
|
62597D
75867-12040 ClipROCKER PANEL MOULDING [01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
75867-12040 |
from US $1.44 |
||
|
62611B
|
62611B
63395-12150 Clip (For Center Pillar Garnish Panel, Upper)[01.2017 -] BB60,BZB60,TRB60,XZB60 |
63395-12150 |
from US $0.96 |
||
|
62612C
|
62612C
62612-36A60-B1
Board, Side Trim No.2, Rh
[01.2017 -] BB60,TRB60..LHD MD.GRAY,TRIM1# |
62612-36A60-B1 |
— | ||
|
62614C
|
62614C
62614-36680-B1 Board, Side Trim No.4, Rh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW MD.GRAY,TRIM1# |
62614-36680-B1 |
US $23 |
||
|
62615C
|
62615C
62615-36B60-B1
Board, Side Trim No.5, Rh
[01.2017 -] TRB70..23S,30S;BB60,HZB70,TRB60,XZB70..(20S,26S,29S,30S)..STD MD.GRAY,TRIM1# |
62615-36B60-B1 |
— | ||
|
62616A
|
62616A
62613-36440-B0 Board, Side Trim No.3, Rh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD..(GCC,GEN) MD.GRAY,TRIM1# |
62613-36440-B0 |
US $38.58 |
||
|
62621C
|
62621C
62621-36220-B1
Board, Side Trim No.1, Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
62621-36220-B1 |
— | ||
|
62621E
|
62621E
62217-13010 Clip(For Rear Floor Mat Plate)[01.2017 -] BB60,TRB60 |
62217-13010 |
from US $1.01 |
||
|
62622C
|
62622C
62622-36820-B1
Board, Side Trim No.2, Lh
[01.2017 -] BB60,TRB60..LHD MD.GRAY,TRIM1# |
62622-36820-B1 |
— | ||
|
62623C
|
62623C
62623-36790-B0 Board, Side Trim No.3, Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW MD.GRAY,TRIM1# |
62623-36790-B0 |
US $38.58 |
||
|
62624C
|
62624C
62624-36740-B1 Board, Side Trim No.4, Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW MD.GRAY,TRIM1# |
62624-36740-B1 |
US $23 |
||
|
62625C
|
62625C
62625-36B60-B1
Board, Side Trim No.5, Lh
[01.2017 -] TRB70..23S,30S;BB60,HZB70,TRB60,XZB70..LHD..(20S,26S,29S,30S) MD.GRAY,TRIM1# |
62625-36B60-B1 |
— | ||
|
62628D
|
62628D
62628-36040-B0
Cover, Side Trim, No.2 Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
62628-36040-B0 |
— | ||
|
62638B
|
62638B
90467-10161 Clip[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
90467-10161 |
from US $0.92 |
||
|
62663B
|
62663B
62550-36320-B0 Trim Assy, Side No.3, Rh[01.2017 -] BB60,TRB60..LHD LT.GRAY,TRIM1# |
62550-36320-B0 |
US $227.14 |
||
|
62671F
|
62671F
62517-36170-B0
Cover, Side Trim Board, No.1 Rh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..02S,26S,29S,30S LT.GRAY,TRIM1# |
62517-36170-B0 |
— | ||
|
62672
|
62672
62518-36170-B0
Cover, Side Trim Board, No.1 Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..02S,26S,29S,30S LT.GRAY,TRIM1# |
62518-36170-B0 |
— | ||
|
64745F
|
64745F
67771-26230-B6 Retainer, Quarter Trim[01.2017 -] BB60,BZB60,TRB60,XZB60 LT.GRAY,TRIM1# |
67771-26230-B6 |
US $1.60 |
||
|
67675
|
67675
67675-36060-B1
Cover, Side Trim Board, Front Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD MD.GRAY,TRIM1# |
67675-36060-B1 |
— | ||
|
6777144010
|
6777144010
67771-44010 Retainer, Cowl Side Trim |
67771-44010 |
US $1.60 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.12 |
