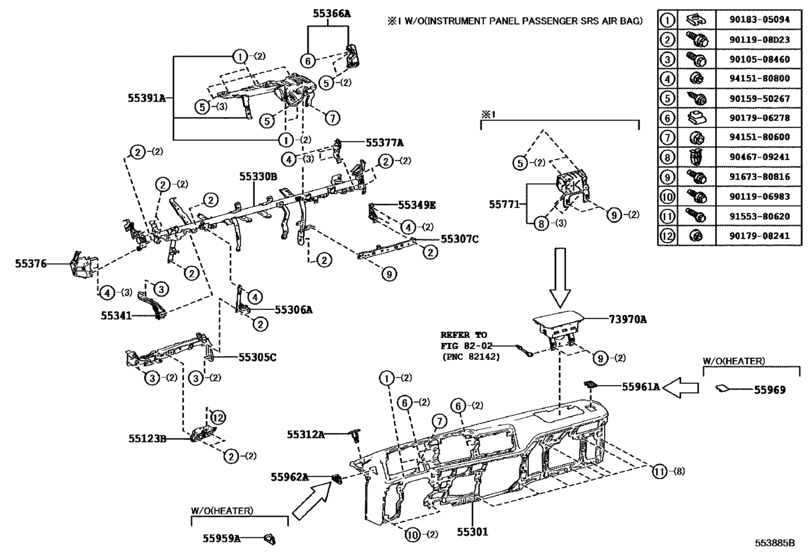

Instrument Panel & Glove Compartment ([01.2017 - ] (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55123B
|
55123B
55123-36040
Reinforcement, Steering Support
[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..5F..(GEN,TAIW) |
55123-36040 |
— | ||
|
55301
|
55301
55311-36140-B0
Panel Sub-Assy, Instrument
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) MD.GRAY,TRIM1# |
55311-36140-B0 |
— | ||
|
55305C
|
55305C
55305-36060
Reinforcement Sub-Assy, Instrument Panel
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55305-36060 |
— | ||
|
55306A
|
55306A
55306-36060
Brace Sub-Assy, Instrument Panel, No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55306-36060 |
— | ||
|
55307C
|
55307C
55307-36060
Brace Sub-Assy, Instrument Panel, No.2
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55307-36060 |
— | ||
|
55312A
|
55312A
90467-07117 Clip, Radiator Support To Frame[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
90467-07117 |
from US $0.92 |
||
|
55330B
|
55330B
55330-36030
Reinforcement Assy, Instrument Panel
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55330-36030 |
— | ||
|
55341
|
55341
55341-36020
Brace, Instrument Panel, No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55341-36020 |
— | ||
|
55349E
|
55349E
55349-36020
Bracket, Instrument Panel Brace Mounting, Lower
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55349-36020 |
— | ||
|
55366A
|
55366A
55366-36030
Bracket, Radio Mounting, No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55366-36030 |
— | ||
|
55376
|
55376
55376-36030
Bracket, Instrument Panel Mounting, No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55376-36030 |
— | ||
|
55377A
|
55377A
55377-36020
Bracket, Instrument Panel Mounting, No.2
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55377-36020 |
— | ||
|
55391A
|
55391A
55391-36030
Panel, Instrument Panel Reinf, Inner No.1
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
55391-36030 |
— | ||
|
55771
|
55771
55771-36010 Bracket, Instrument Panel, Upper[01.2017 -] BB60,BZB70,HZB70,TRB60,70,XZB70..GEN,TAIW |
55771-36010 |
US $46.88 |
||
|
55959A
|
55959A
55959-36050-B0
Cover, Defroster Nozzle Opening, No.1
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN MD.GRAY,TRIM1# |
55959-36050-B0 |
— | ||
|
55961A
|
55961A
55962-36040-B0
Nozzle, Side Defroster, Rh
[01.2017 -] TRB60,70,XZB70..GCC,TAIW MD.GRAY,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..GEN FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
55962-36040-B0 |
— | ||
|
55962A
|
55962A
55961-36050-B0
Nozzle, Side Defroster, Lh
[01.2017 -] TRB60,70,XZB70..GCC,TAIW MD.GRAY,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..GEN FRONT HEATER-MANUAL 120W,MD.GRAY,TRIM1# |
55961-36050-B0 |
— | ||
|
55969
|
55969
55969-36040-B0
Cover, Defroster Nozzle Opening, No.2
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN MD.GRAY,TRIM1# |
55969-36040-B0 |
— | ||
|
9011908D23
|
9011908D23
90119-08D23 New Genuine Part |
90119-08D23 |
US $0.96 |
||
|
9010508460
|
9010508460
90105-08460 New Genuine Part |
90105-08460 |
US $1.02 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9015950267
|
9015950267
90159-50267 SCREW WWASHER |
90159-50267 |
US $1.12 |
||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.60 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
US $1.28 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046709241
|
9046709241
90467-09241 Clip(For Back Door Side Garnish) |
90467-09241 |
US $1.28 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $0.96 |
||
|
9167380816
|
9167380816
91673-80816 Bolt (For Transmission Control Cable Bracket) |
91673-80816 |
from US $0.72 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
