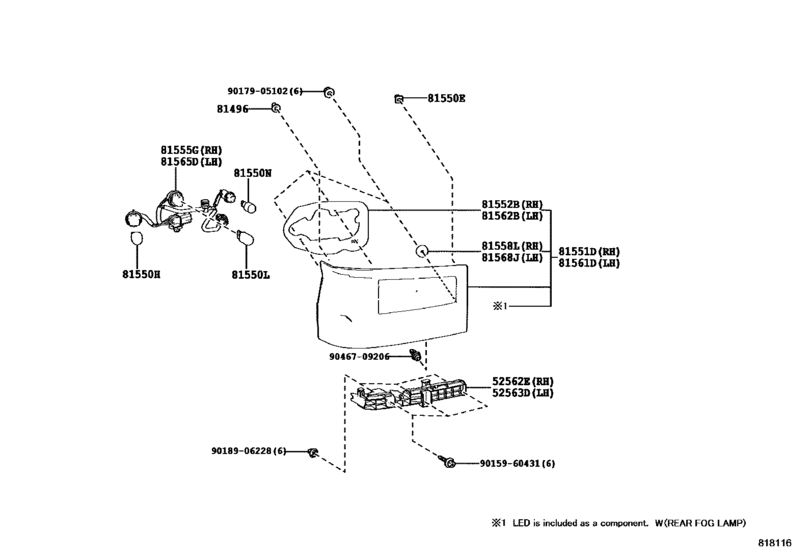

Rear Combination Lamp ([01.2017 - ] (1701- )) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52562E
|
52562E
52562-36010 Retainer, Rear Bumper, Upper Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
52562-36010 |
from US $18.54 |
||
|
52563D
|
52563D
52563-36010 Retainer, Rear Bumper, Upper Lh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
52563-36010 |
from US $18.54 |
||
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81496-52020 |
from US $0.88 |
||
|
81550E
|
81550E
76817-26040 Clip, Back Door Outside Garnish[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
76817-26040 |
from US $1.37 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW 12V 21/5W |
90981-13044 |
from US $3.65 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW 12V 21W,AMBER |
90981-15021 |
from US $3.51 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81551D
|
81551D
81551-36540 Lens & Body, Rear Combination Lamp, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..GEN,TAIW |
81551-36540 |
from US $166.43 |
||
|
81552B
|
81552B
81552-36540 Packing, Rear Combination Lamp Body, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81552-36540 |
US $8.44 |
||
|
81555G
|
81555G
81555-36540 Cord, Rear Combination Lamp, Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81555-36540 |
from US $24.61 |
||
|
81558L
|
81558L
81558-24040 Gasket, Rear Combination Lamp Body, No.1 Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81558-24040 |
US $3.04 |
||
|
81561D
|
81561D
81561-36380 Lens & Body, Rear Combination Lamp, Lh[01.2017 -] BB60,BZB70,HZB70,TRB60,70,XZB70..ARL,GEN |
81561-36380 |
from US $174.99 |
||
|
81562B
|
81562B
81562-36380 Packing, Rear Combination Lamp Body, Lh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81562-36380 |
US $8.44 |
||
|
81565D
|
81565D
81565-36380 Cord, Rear Combination Lamp, Lh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81565-36380 |
from US $24.61 |
||
|
81568J
|
81568J
81558-24040 Gasket, Rear Combination Lamp Body, No.1 Rh[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..ARL,GEN,TAIW |
81558-24040 |
US $3.04 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.78 |
||
|
9018906228
|
9018906228
90189-06228 Grommet(For Rear Bumper) |
90189-06228 |
from US $0.76 |
||
|
9046709206
|
9046709206
90467-09206 Clip, Front Air Shutter Seal |
90467-09206 |
from US $0.49 |
