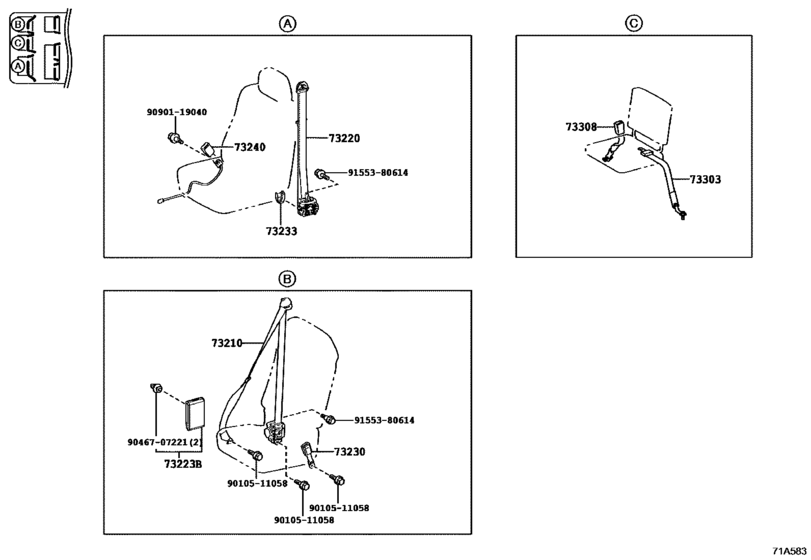

Seat Belt ([01.2017 - ] *DRS & *RES(NO.1) & SUB SEAT(NO.1) (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73210
|
73210
73360-36170-C0
Belt Assy, Front Seat Outer, Rh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
73360-36170-C0 |
— | ||
|
73220
|
73220
73220-36010-C0
Belt Assy, Front Seat Outer, Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
73220-36010-C0 |
— | ||
|
73220
|
73220
73220-36020-C0
Belt Assy, Front Seat Outer, Lh
[01.2017 -] TRB60,70..GCC BLACK,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT BELT-WITH(*DRS-PRETENSIONER),WITH(*PAS),BLACK,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT BELT-W(*DRS-PRETENSIONER),W(*PAS & SUB SEAT),BLACK,TRIM |
73220-36020-C0 |
— | ||
|
73223B
|
73223B
73173-36010-B0
Cover, Front Seat Belt Retractor, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD LT.GRAY,TRIM1# |
73173-36010-B0 |
— | ||
|
73230
|
73230
73380-36210-C1 Belt Assy, Front Seat Inner, Lh[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD BLACK,TRIM1# |
73380-36210-C1 |
US $40.19 |
||
|
73233
|
73233
73233-60020-C1 Cover, Lap Belt Outer Anchor[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW BLACK,TRIM1# |
73233-60020-C1 |
from US $4.97 |
||
|
73240
|
73240
73230-36110-C0
Belt Assy, Front Seat Inner, Rh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(GEN,TAIW) BLACK,TRIM1# |
73230-36110-C0 |
— | ||
|
73303
|
73303
73303-36040-C0
Belt Sub-Assy, Sub Seat, Outer
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) BLACK,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT-HIGH BACK TYPE&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER),WITH(*PAS),BLACK ,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT |
73303-36040-C0 |
— | ||
|
73308
|
73308
73308-36031-C0
Belt Sub-Assy, Sub Seat, Inner
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) BLACK,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT-HIGH BACK TYPE&FRONT SEAT BELT-WITH(*DRS-PRETENSIONER),WITH(*PAS),BLACK ,TRIM1#; BB60,HZB70,TRB60,70,XZB70..LHD..(26S,30S) FRONT SEAT |
73308-36031-C0 |
— | ||
|
9010511058
|
9010511058
90105-11058 BOLT FLANGE |
90105-11058 |
from US $0.99 |
||
|
9046707221
|
9046707221
90467-07221 Retainer, Side Mudguard, No.3 |
90467-07221 |
US $1.28 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $1.92 |
||
| replacement | |||||
|
9090119040
|
9090119040
90084-11055 New Genuine Part |
90084-11055 |
US $6.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
