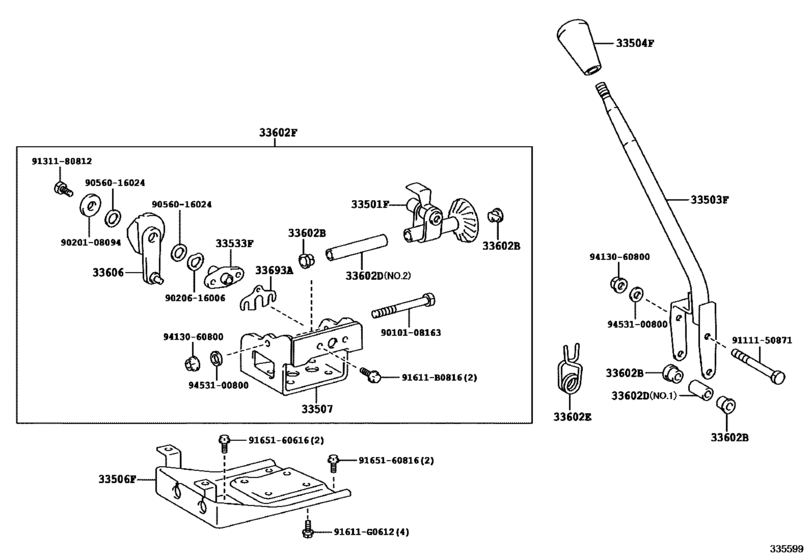

Shift Lever & Retainer ([01.2017 - ] (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-36240 Shaft Sub-Assy, Control (For Floor Shift)CONTROL (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33501-36240 |
US $21.40 |
||
|
33503F
|
33503F
33055-36070 Lever Sub-Assy, Shift(For Floor Shift)SHIFT(FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33055-36070 |
US $55.76 |
||
|
33504F
|
33504F
33504-36051-C0 Knob Sub-Assy, Shift Lever[01.2017 -] TRB60,70;BB60,BZB70,HZB70,XZB70..5F..(ARL,GEN,TAIW) BLACK,TRIM1# |
33504-36051-C0 |
US $25.99 |
||
|
33506F
|
33506F
33506-36020 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)CONTROL SHIFT LEVER (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33506-36020 |
US $115.02 |
||
|
33507
|
33507
33507-36040 Bracket Sub-Assy, Shift Lever HousingSHIFT LEVER HOUSING [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33507-36040 |
US $78.62 |
||
|
33533F
|
33533F
33533-36050 Shaft, Bellcrank (For Floor Shift)BELLCRANK (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33533-36050 |
US $6.99 |
||
|
33602B
|
33602B
90386-13007 Bush(For Clutch Pedal)[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
90386-13007 |
from US $2.56 |
||
|
33602D
|
33602D
90387-08153 Collar (For Select Lever)[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD NO.2:REFER ILLUST. |
90387-08153 |
US $4.80 |
||
|
33602D
|
33602D
90440-13002 Collar (For Select Lever)[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD NO.1:REFER ILLUST. |
90440-13002 |
US $4.08 |
||
|
33602E
|
33602E
90949-03066 Spring, Torsion (For Select Lever)TORSION (FOR SELECT LEVER) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
90949-03066 |
from US $1.60 |
||
|
33602F
|
33602F
33602-36040 Lever Sub-Assy, Select (For Floor Shift)SELECT (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33602-36040 |
US $88.82 |
||
|
33606
|
33606
33606-36020
Lever Sub-Assy, Wire Pull
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
33606-36020 |
— | ||
|
33693A
|
33693A
33693-36050 Shim, Shift Lever Adjusting (For Floor Shift)SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD T=0.6 |
33693-36050 |
US $1.75 |
||
|
33693A
|
33693A
33693-36060 Shim, Shift Lever Adjusting (For Floor Shift)SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD T=0.8 |
33693-36060 |
US $2.48 |
||
|
33693A
|
33693A
33693-36070 Shim, Shift Lever Adjusting (For Floor Shift)SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD T=1.0 |
33693-36070 |
US $3.06 |
||
|
33693A
|
33693A
33693-36080 Shim, Shift Lever Adjusting (For Floor Shift)SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD T=1.2 |
33693-36080 |
US $3.06 |
||
|
33693A
|
33693A
33693-36090 Shim, Shift Lever Adjusting (For Floor Shift)SHIFT LEVER ADJUSTING (FOR FLOOR SHIFT) [01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD T=1.4 |
33693-36090 |
US $3.06 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9010108163
|
9010108163
90101-08163 New Genuine Part |
90101-08163 |
US $2.48 |
||
|
9020108094
|
9020108094
90201-08094
WASHER PLATE
|
90201-08094 |
— | ||
|
9020616006
|
9020616006
90206-16006
New Genuine Part
|
90206-16006 |
— | ||
|
9056016024
|
9056016024
90560-16024
SPACER
|
90560-16024 |
— | ||
|
9111150871
|
9111150871
91111-50871
New Genuine Part
|
91111-50871 |
— | ||
| replacement | |||||
|
9111150871
|
9111150871
91111-50870 BOLT |
91111-50870 |
from US $0.70 |
||
|
9131180812
|
9131180812
91311-80812
BOLT
|
91311-80812 |
— | ||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.56 |
||
