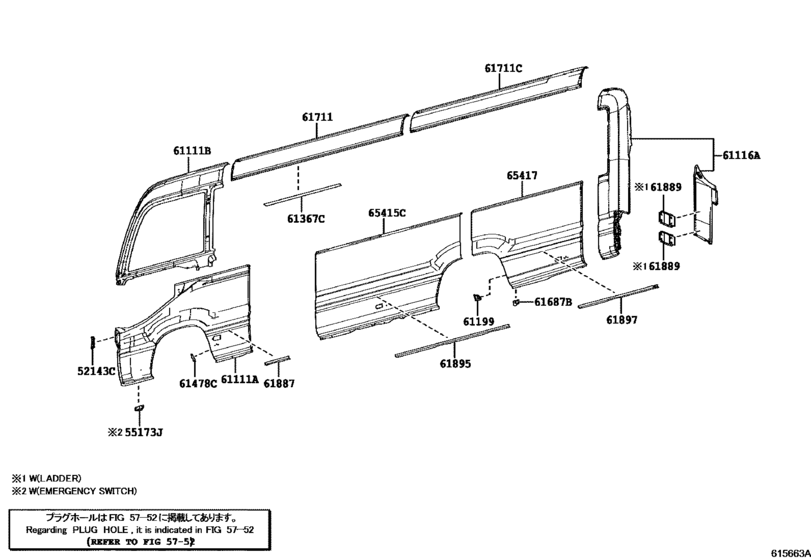

Side Member ([01.2017 - ] OUTER PANEL RH (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52143C
|
52143C
61814-36050
Blacket, Front Bumper Side, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61814-36050 |
— | ||
|
61111A
|
61111A
61133-36020
Panel, Front Side, Outer Rh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..GEN |
61133-36020 |
— | ||
|
61111B
|
61111B
61256-36060
Panel, No.1 Side, Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61256-36060 |
— | ||
|
61116A
|
61116A
61703-36020 Panel, Back Side, Rh[01.2017 -] TRB70..23S,30S;BB60,HZB70,TRB60,XZB70..(20S,26S,29S,30S)..STD |
61703-36020 |
US $1,016.29 |
||
|
61116A
|
61116A
61703-36030
Panel, Back Side, Rh
[01.2017 -] HZB70..RHD;HZB70..WOC;BB60,TRB60,70,XZB70..26S,29S,30S ROOF RACK-WITH(LOAD CAPASITY=100KG); HZB70..LHD..30S..WC ROOF RACK-WITH(LOAD CAPASITY=70KG); BB60,TRB60..GEN ROOF RACK-WITH(LOAD CAPASITY=160KG) |
61703-36030 |
— | ||
|
61199
|
61199
61159-36020 Bracket, Side Panel To Rear Mudguard[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61159-36020 |
US $4.37 |
||
|
61367C
|
61367C
61367-36040 Channel, Roof Drip Side, Center No.1[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61367-36040 |
US $24.90 |
||
|
61478C
|
61478C
61478-36020 Bracket, Mudguard, Front Rh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61478-36020 |
US $5.39 |
||
|
61687B
|
61687B
61687-36020 Bracket, Mudguard, Rear Rh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61687-36020 |
US $4.37 |
||
|
61711
|
61711
61113-36030
Panel, Roof Side, Outer Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61113-36030 |
— | ||
|
61711C
|
61711C
61225-36030 Panel, Roof Side, Outer Rh, No.2[01.2017 -] BB60,BZB60,TRB60,XZB60 |
61225-36030 |
US $184.91 |
||
|
61887
|
61887
61887-36040
Rail, Side Panel Dust Proof, No.1 Rh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61887-36040 |
— | ||
|
61889
|
61889
61889-36020
Retainer, Side Panel
[01.2017 -] HZB70..RHD;HZB70..WOC;BB60,TRB60,70,XZB70..26S,29S,30S ROOF RACK-WITH(LOAD CAPASITY=100KG),LOWER SIDE; HZB70..LHD..30S..WC ROOF RACK-WITH(LOAD CAPASITY=70KG),LOWER SIDE; BB60,TRB60..GEN ROOF RACK-WITH(LOAD CAPASITY=160KG),LOWER SIDE; XZB70..29 |
61889-36020 |
— | ||
|
61889
|
61889
61889-36030
Retainer, Side Panel
[01.2017 -] HZB70..RHD;HZB70..WOC;BB60,TRB60,70,XZB70..26S,29S,30S ROOF RACK-WITH(LOAD CAPASITY=100KG),UPPER SIDE; HZB70..LHD..30S..WC ROOF RACK-WITH(LOAD CAPASITY=70KG),UPPER SIDE; BB60,TRB60..GEN ROOF RACK-WITH(LOAD CAPASITY=160KG),UPPER SIDE; XZB70..29 |
61889-36030 |
— | ||
|
61895
|
61895
61895-36060 Rail, Side Panel Dust Proof, No.2 Rh[01.2017 -] BB60,BZB60,TRB60,XZB60 |
61895-36060 |
US $19.22 |
||
|
61897
|
61897
61897-36030 Rail, Side Panel Dust Proof, No.3 Rh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61897-36030 |
US $22.01 |
||
|
65415C
|
65415C
65415-36180
Panel, Rear Body, Front Rh
[01.2017 -] BB60,TRB60..LHD..GEN |
65415-36180 |
— | ||
|
65417
|
65417
65417-36070
Panel, Rear Body, Rear Rh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
65417-36070 |
— |
