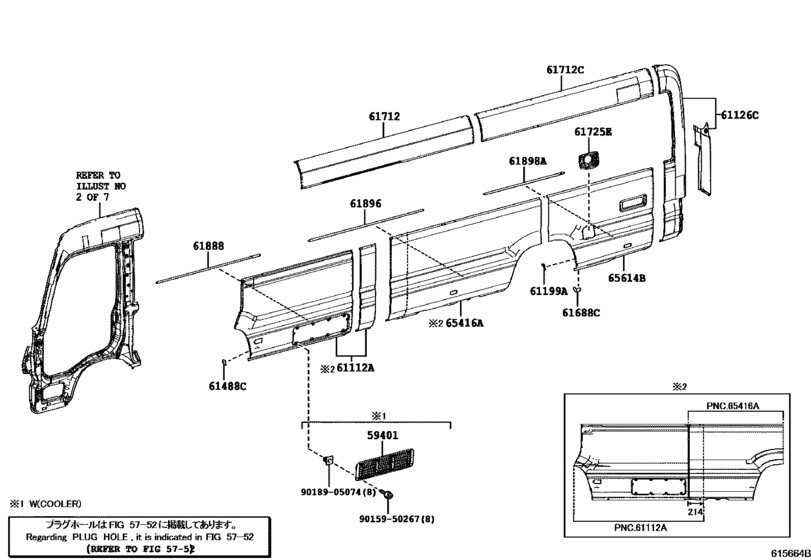

Side Member ([01.2017 - ] OUTER PANEL LH (1701- )LHD) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
59401
|
59401
61705-36900 Cover Sub-Assy, Cooler Condenser[01.2017 -] HZB70..WC..GEN;BB60,TRB60,70,XZB60,70..WC |
61705-36900 |
from US $55.56 |
||
|
61112A
|
61112A
61009-36010
Panel, Front Side, Outer Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..LHD..WC..GEN |
61009-36010 |
— | ||
|
61126C
|
61126C
61704-36020 Panel, Back Side, Lh[01.2017 -] TRB70..23S,30S;BB60,HZB70,TRB60,XZB70..(20S,26S,29S,30S)..STD |
61704-36020 |
US $1,016.29 |
||
|
61199A
|
61199A
61169-36010 Bracket, Side Panel To Rear Mudguard, Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61169-36010 |
US $5.28 |
||
|
61488C
|
61488C
61488-36020 Bracket, Mudguard, Front Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61488-36020 |
US $5.09 |
||
|
61688C
|
61688C
61688-36020 Bracket, Mudguard, Rear Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61688-36020 |
US $5.28 |
||
|
61712
|
61712
61123-36040
Panel, Roof Side, Outer Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61123-36040 |
— | ||
|
61712C
|
61712C
61226-36040 Panel, Roof Side, Outer Lh, No.2[01.2017 -] BB60,BZB60,TRB60,XZB60 |
61226-36040 |
US $184.91 |
||
|
61725E
|
61725E
61725-36020 Box, Fuel Inlet[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61725-36020 |
US $29.34 |
||
|
61888
|
61888
61888-36050
Rail, Side Panel Dust Proof, No.1 Lh
[01.2017 -] HZB70..LHD..GEN;BB60,TRB60,70,XZB70..LHD |
61888-36050 |
— | ||
|
61896
|
61896
61896-36070 Rail, Side Panel Dust Proof, No.2 Lh[01.2017 -] BB60,BZB60,TRB60,XZB60 |
61896-36070 |
US $19.22 |
||
|
61898A
|
61898A
61898-36040 Rail, Side Panel Dust Proof, No.3 Lh[01.2017 -] TRB60,70;BB60,BZB60,70,HZB70,XZB60,70..ARL,GEN,TAIW |
61898-36040 |
US $22.01 |
||
|
65416A
|
65416A
65416-36310
Panel, Rear Body, Front Lh
[01.2017 -] BB60,TRB60..LHD..GEN |
65416-36310 |
— | ||
|
65614B
|
65614B
65614-36070
Panel, Rear Body, Rear Lh
[01.2017 -] BB60,HZB70,TRB60,70,XZB70..STD..GEN |
65614-36070 |
— | ||
|
9015950267
|
9015950267
90159-50267 SCREW WWASHER |
90159-50267 |
US $1.12 |
||
|
9018905074
|
9018905074
90189-05074 GROMMET SCREW |
90189-05074 |
US $1.44 |
