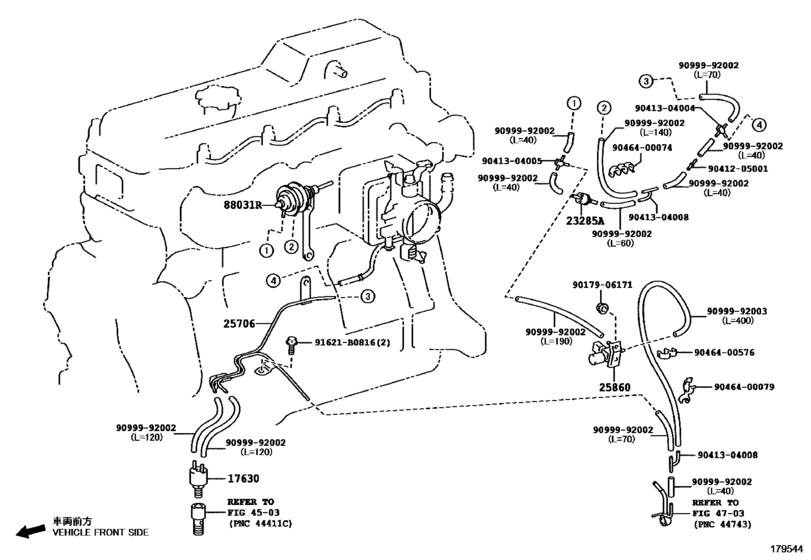

Vacuum Piping ([01.2017 - ] (1701- )14B..WC) Diagram Toyota COASTER
- Year
- 2017 - 2018
- Sales region
- General
- Frame
- BB60
- grade
- STD
- Roof
- HRF
- ENGINE
- 14B
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.2017
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- DSL
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17630
|
17630
17630-15010 Valve Assy, Air Control[01.2017 -] 1HZ..HZB70..GEN; 14B..BB60 |
17630-15010 |
US $134.53 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[01.2017 -] 14B..BB60..WC; 1HZ..HZB70..WC..GEN |
90917-10049 |
from US $6.59 |
||
|
25706
|
25706
25706-58050 Pipe Sub-Assy, Vacuum Transmitting, No.1[01.2017 -] 14B..BB60 |
25706-58050 |
US $21.11 |
||
|
25860
|
25860
25860-58050
Valve Assy, Vacuum Switching, No.1
[01.2017 -] 14B..BB60..WC |
25860-58050 |
— | ||
|
88031R
|
88031R
88031-36120
Actuator Set, Idle-Up
[01.2017 -] BB60 |
88031-36120 |
— | ||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.92 |
||
|
9041205001
|
9041205001
90412-05001 Way, 2 |
90412-05001 |
US $2.77 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400079
|
9046400079
90464-00079 Clamp, Vacuum Tube |
90464-00079 |
US $5.59 |
||
|
9046400576
|
9046400576
90464-00576 Clamp, No.1 (For Transfer Vacuum) |
90464-00576 |
US $1.14 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— |
