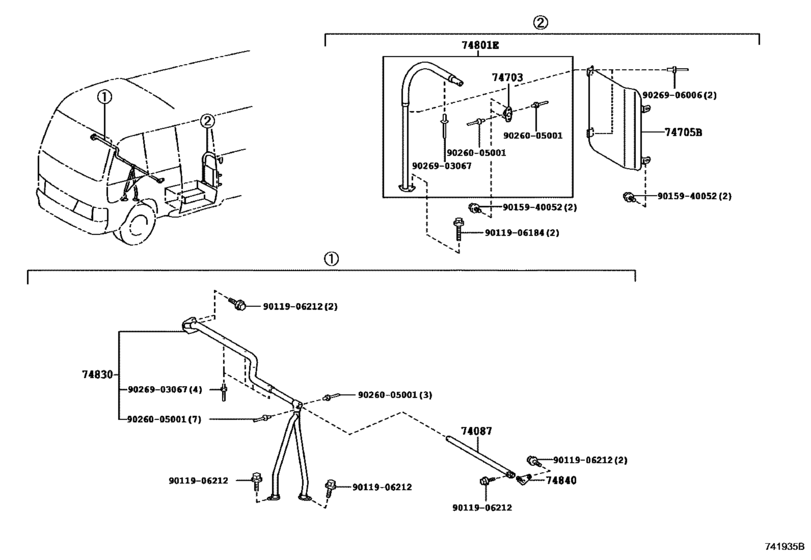

Protector Pipe, Roll Bar & Handrail ([04.2006 - ] W(PROTECTOR PIPE) (0604- )BZB40,50,XZB40,50..17S) Diagram Toyota COASTER
- Year
- 2001 - 2016
- Sales region
- General
- Frame
- BZB40
- grade
- STD
- Roof
- HRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2001
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74087
|
74087
74087-36010-B0 Pipe Sub-Assy, Rear ProtectorREAR PROTECTOR [10.2004 - 04.2006] BZB40 MD.CHARCOAL,TRIM1# |
74087-36010-B0 |
US $396.03 |
||
|
74087
|
74087
74087-36020
Pipe Sub-Assy, Rear Protector
[04.2006 - 01.2015] BZB40,50,XZB40..STD |
74087-36020 |
— | ||
|
74703
|
74703
74703-90B00 Frame Sub-Assy, Hand Grip Side[10.2004 - 01.2015] BZB40 |
74703-90B00 |
US $24.46 |
||
|
74705B
|
74705B
74705-36031-B0 Net Sub-Assy, Hand Grip ProtectorHAND GRIP PROTECTOR [08.2001 - 08.2004] BB50,BZB40,50..17S MD.CHARCOAL,TRIM1# |
74705-36031-B0 |
US $203.84 |
||
|
74705B
|
74705B
74705-36032-B0
Net Sub-Assy, Hand Grip Protector
[03.2008 - 01.2015] BZB40,50,XZB40 MD.CHARCOAL,TRIM1# |
74705-36032-B0 |
— | ||
|
74801E
|
74801E
74801-36010-B0 Pipe Sub-Assy, Front ProtectorFRONT PROTECTOR [10.2004 - 01.2015] BZB40 MD.CHARCOAL,TRIM1# |
74801-36010-B0 |
US $297.02 |
||
|
74830
|
74830
74830-36040 Pipe Assy, Front Protector, RhFRONT PROTECTOR, RH [07.1999 - 08.2004] BZB40 |
74830-36040 |
US $340.70 |
||
|
74830
|
74830
74830-36050-B0 Pipe Assy, Front Protector, RhFRONT PROTECTOR, RH [10.2004 - 04.2006] BZB40 MD.CHARCOAL,TRIM1# |
74830-36050-B0 |
US $690.14 |
||
|
74830
|
74830
74830-36060-B0
Pipe Assy, Front Protector, Rh
[04.2006 - 01.2015] BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1# |
74830-36060-B0 |
— | ||
|
74840
|
74840
74840-36021 Pipe Assy, Front Protector, LhFRONT PROTECTOR, LH [07.1999 - 08.2004] BB50,BZB40,50..17S |
74840-36021 |
US $413.50 |
||
|
74840
|
74840
74840-36040
Pipe Assy, Front Protector, Lh
[04.2006 - 01.2015] BZB40,50,XZB40,50..STD..GEN |
74840-36040 |
— | ||
|
9011906184
|
9011906184
90119-06184 New Genuine Part |
90119-06184 |
US $0.87 |
||
|
9011906212
|
9011906212
90119-06212 New Genuine Part |
90119-06212 |
US $0.87 |
||
|
9015940052
|
9015940052
90159-40052 New Genuine Part |
90159-40052 |
US $4.08 |
||
|
9026005001
|
9026005001
90260-05001 New Genuine Part |
90260-05001 |
US $1.31 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.96 |
||
|
9026906006
|
9026906006
90269-06006 PIN |
90269-06006 |
from US $1.68 |
