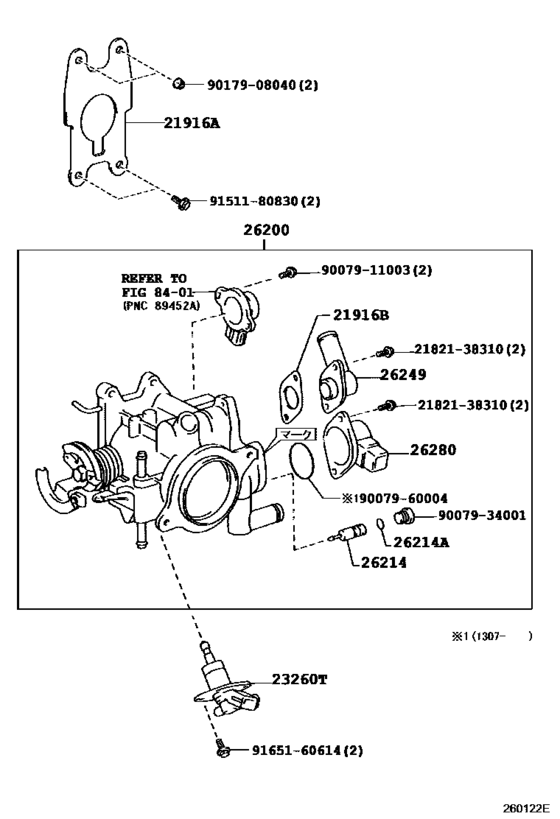

Lpg Carburetor ([03.2002 - ] (0203- )1BZFPE) Diagram Toyota COASTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Frame
- BZB50
- grade
- STD
- Roof
- SRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 10.2003
- To
- 08.2011
- Gear Shift Type
- 5F
- Seating Capacity
- 49S
- Vehicle Model
- Coaster
- Fuel Induction
- LPG
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21916A
|
21916A
21916-48010 Gasket, Carburetor, No.2[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
21916-48010 |
from US $7.43 |
||
|
21916B
|
21916B
21916-73010 Gasket, Lpg Fuel Hose Union[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
21916-73010 |
from US $4.56 |
||
|
23260T
|
23260T
23260-48010 Injector Assy, Lpg[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
23260-48010 |
from US $85.90 |
||
|
26200
|
26200
26200-48011 Carburetor Assy, Lpg[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
26200-48011 |
from US $1,080.35 |
||
| replacement | |||||
|
26200
|
26200
26200-48012 Carburetor Assy, Lpg[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
26200-48012 |
US $981.34 |
||
|
26214
|
26214
26214-73130 Screw, Power Adjust[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
26214-73130 |
US $2.89 |
||
|
26214A
|
26214A
90079-60005 Ring, O(For Power Adjust)[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
90079-60005 |
US $3.20 |
||
|
26249
|
26249
26249-48010 Union, Fuel Hose(For Lpg)[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
26249-48010 |
US $18.64 |
||
|
26280
|
26280
26280-48010 Motor Assy, Air Fuel Ratio Control[03.2002 - 08.2004] 1BZFPE..BZB40,50 |
26280-48010 |
from US $260.62 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.56 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9007934001
|
9007934001
90079-34001 New Genuine Part |
90079-34001 |
US $2.20 |
||
|
9007960004
|
9007960004
90079-60004 Ring, O(For Power Adjust) |
90079-60004 |
US $3.36 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9151180830
|
9151180830
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
