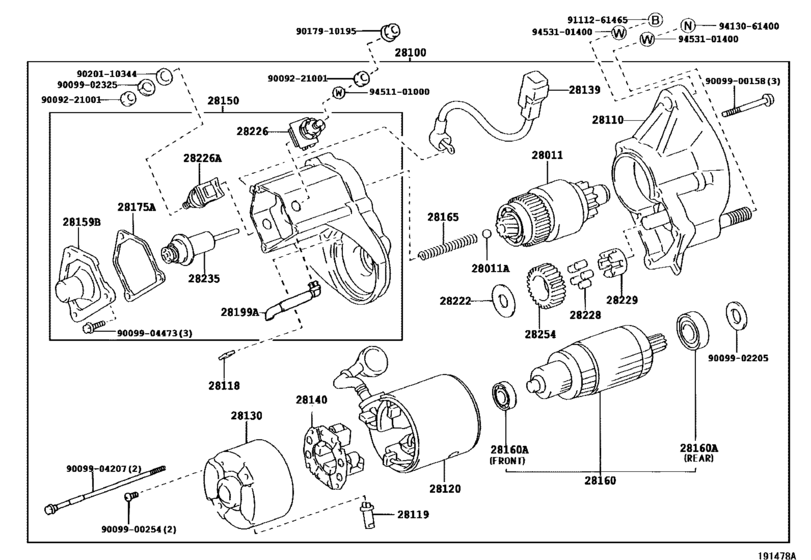

Starter ([08.2001 - 07.2010] 12V 2.5KW (0108-1007)1BZFPE) Diagram Toyota COASTER
- Year
- 2003 - 2015
- Sales region
- Europe
- Frame
- BZB50
- grade
- STD
- Roof
- HRF
- ENGINE
- 1BZFPE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 02.2003
- To
- 01.2015
- Gear Shift Type
- 5F
- Seating Capacity
- 17S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF ..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F |
28011-54010 |
from US $200.05 |
||
|
28011A
|
28011A
90099-12009
Ball, Starter Clutch
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..S RF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1H Z..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,2 |
90099-12009 |
— | ||
|
28100
|
28100
28100-56311 Starter Assy[08.2001 - 08.2004] 1BZFPE..BZB40,50 12V 2.5KW |
28100-56311 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-56312 Starter Assy[08.2001 - 08.2004] 1BZFPE..BZB40,50 12V 2.5KW |
28100-56312 |
US $1,241.97 |
||
|
28100
|
28100
28100-56312 Starter Assy[06.2009 - 01.2015] 1BZFPE..BZB40,50 12V 2.5KW |
28100-56312 |
US $1,241.97 |
||
|
28110
|
28110
28110-56151 Housing Assy, Starter Drive[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28110-56151 |
from US $123.90 |
||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28118-77090 |
— | ||
|
28119
|
28119
28199-46080 Cover, Starter End Frame[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;14B..BB42..LHD..HRF..WO C;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU ..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC; 1HZ..HZB50..LHD..WOC 12 |
28199-46080 |
from US $2.97 |
||
|
28120
|
28120
28120-56231
Yoke Assy, Starter
[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28120-56231 |
— | ||
|
28130
|
28130
28130-56260
Frame Assy, Starter Commutator End
[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28130-56260 |
— | ||
|
28139
|
28139
28139-56310
Wire, Lead, No.1(For Starter)
[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28139-56310 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28140-77090 |
from US $60.98 |
||
|
28150
|
28150
28150-56310 Switch Assy, Magnet Starter[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28150-56310 |
US $195.10 |
||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28159-56310 |
— | ||
|
28160
|
28160
28160-47040
Armature Assy, Starter
[07.1999 - 03.2003] 1BZFPE..BZB40,50;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;14B..BB42..SRF..WOC ..GEN 12V 2.5KW |
28160-47040 |
— | ||
| replacement | |||||
|
28160
|
28160
28160-54140 Armature Assy, Starter[07.1999 - 03.2003] 1BZFPE..BZB40,50;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;14B..BB42..SRF..WOC ..GEN 12V 2.5KW |
28160-54140 |
from US $193.85 |
||
|
28160
|
28160
28160-54140 Armature Assy, Starter[03.2003 - 08.2004] 1BZFPE..BZB40,50;14B,1HZ..BB42,HZB50..WOC 12V 2.5KW |
28160-54140 |
from US $193.85 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC FRO |
90099-10107 |
US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC REA |
90099-10119 |
from US $7.34 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28175-56310 |
from US $1.92 |
||
|
28199A
|
28199A
28199-58020
Protector, Dust Starter
[08.2001 - 08.2004] 1BZFPE..BZB40,50 |
28199-58020 |
— | ||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28222-77090 |
— | ||
|
28226
|
28226
28226-17030
Starter Kit, Battery Terminal
[07.1999 - 08.2004] 14B..BB42..26S..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F; 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;14B..BB42..SRF.. WOC..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC 24V |
28226-17030 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[07.1999 - 08.2004] 14B..BB42..26S..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F; 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;14B..BB42..SRF.. WOC..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC 24V |
28226-54320 |
from US $10.80 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[07.1999 - 08.2004] 1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..LHD..SRF..WC;1BZFPE,1HZ..BZB4 0,50,HZB50..HRF..(17S,21S,30S)..WC |
28226-54220 |
from US $12.44 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28235-17030 |
from US $25.68 |
||
|
28254
|
28254
28254-77090
Pinion, Starter Drive
[07.1999 - 08.2004] 14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14 B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT ..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.76 |
||
|
9020110344
|
9020110344
90201-10344 Washer, Plate(For Cylinder Head Set) |
90201-10344 |
from US $1.03 |
||
|
9111261465
|
9111261465
91112-61465 Bolt |
91112-61465 |
US $4.80 |
||
|
9413061400
|
9413061400
94130-61400 Nut, Lock |
94130-61400 |
US $1.60 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9453101400
|
9453101400
94531-01400 New Genuine Part |
94531-01400 |
US $0.87 |
||
