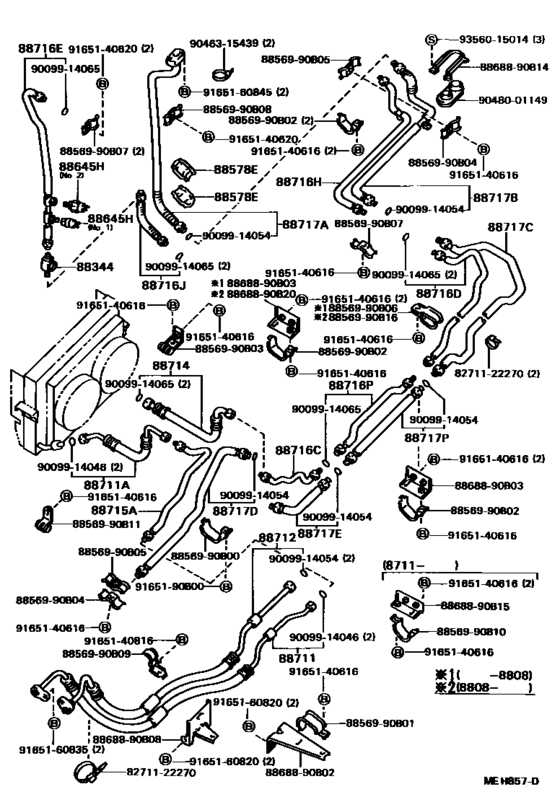

Heating & Air Conditioning - Cooler Piping ([10.1986 - ] (8610- )FB30) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88344
|
88344
88344-90B00
Glass Sub-Assy, Sight
[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88344-90B00 |
— | ||
|
88578E
|
88578E
88578-90B01
Packing, Cooler Pipe, No.1
[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88578-90B01 |
— | ||
|
88645H
|
88645H
88645-30250
Switch, Pressure
[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC NO.2 |
88645-30250 |
— | ||
|
88645H
|
88645H
88645-90B00
Switch, Pressure No.1
[09.1984 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC NO.1 |
88645-90B00 |
— | ||
|
88711
|
88711
88711-90B10 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [10.1986 - 01.1993] FB30..WC |
88711-90B10 |
US $228.59 |
||
|
88711A
|
88711A
88711-90B03 Hose, Cooler Refrigerant Discharge, No.2[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88711-90B03 |
US $104.83 |
||
|
88712
|
88712
88712-90B10 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [10.1986 - 01.1993] FB30..WC |
88712-90B10 |
US $382.93 |
||
|
88714
|
88714
88721-90B00 Hose, Cooler Refrigerant Liquid, No.1[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88721-90B00 |
US $141.23 |
||
|
88715A
|
88715A
88715-90B04 Pipe, Cooler Refrigerant Discharge, A[10.1986 - 01.1990] FB30..WC |
88715-90B04 |
US $88.82 |
||
|
88715A
|
88715A
88715-90B11 Pipe, Cooler Refrigerant Discharge, A[01.1990 - 01.1993] BB2#,FB30,HZB30,RB20..WC |
88715-90B11 |
US $94.64 |
||
|
88716C
|
88716C
88716-90B03 Pipe, Cooler Refrigerant Liquid, C[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88716-90B03 |
US $38.29 |
||
|
88716D
|
88716D
88716-90B04 Pipe, Cooler Refrigerant Liquid, D[05.1982 - 08.1988] BB2#,FB30,HB30,RB20..WC |
88716-90B04 |
US $138.32 |
||
|
88716D
|
88716D
88716-90B11 Pipe, Cooler Refrigerant Liquid, D[08.1988 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88716-90B11 |
US $136.86 |
||
|
88716E
|
88716E
88716-90B07 Pipe, Cooler Refrigerant Liquid, E[05.1982 - 01.1993] BB20,21,FB30,HZB30,RB20..SRF..WC |
88716-90B07 |
US $132.50 |
||
|
88716H
|
88716H
88716-90B05 Pipe, Cooler Refrigerant Liquid, H[05.1982 - 03.1987] BB20..15S;BB2#,FB30,HB30,RB20..WC |
88716-90B05 |
US $123.76 |
||
|
88716H
|
88716H
88716-90B10 Pipe, Cooler Refrigerant Liquid, H[03.1987 - 01.1993] BB21,22,FB30,HB30,HZB30,RB20 |
88716-90B10 |
US $154.34 |
||
|
88716J
|
88716J
88716-90B08 Pipe, Cooler Refrigerant Liquid, J[05.1982 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88716-90B08 |
US $32.47 |
||
|
88716P
|
88716P
88716-90B06 Pipe, Cooler Refrigerant Liquid, P[10.1986 - 01.1993] FB30,HB30,HZB30..WC |
88716-90B06 |
US $78.62 |
||
|
88717A
|
88717A
88717-90B08 Pipe, Cooler Refrigerant Suction, A[05.1982 - 01.1993] BB20,21,FB30,HZB30,RB20..SRF..WC |
88717-90B08 |
US $345.07 |
||
|
88717B
|
88717B
88717-90B04 Pipe, Cooler Refrigerant Suction, B[05.1982 - 01.1993] BB2#,FB30,HB30,RB20..WC |
88717-90B04 |
US $317.41 |
||
|
88717C
|
88717C
88717-90B03 Pipe, Cooler Refrigerant Suction, C[05.1982 - 08.1988] BB2#,FB30,HB30,RB20..WC |
88717-90B03 |
US $327.60 |
||
|
88717C
|
88717C
88717-90B22 Pipe, Cooler Refrigerant Suction, C[08.1988 - 01.1993] BB2#,FB30,HB30,HZB30,RB20..WC |
88717-90B22 |
US $346.53 |
||
|
88717D
|
88717D
88717-90B18 Pipe, Cooler Refrigerant Suction, D[10.1986 - 08.1988] FB30..WC |
88717-90B18 |
US $264.99 |
||
|
88717P
|
88717P
88717-90B05 Pipe, Cooler Refrigerant Suction, P[05.1982 - 01.1993] FB30,HB30,HZB30..WC |
88717-90B05 |
US $182 |
||
|
8856990B00
|
8856990B00
88569-90B00
Clamp (for Cooler Relay)
|
88569-90B00 |
— | ||
|
8856990B01
|
8856990B01
88569-90B01
Clamp (for Cooler Relay)
|
88569-90B01 |
— | ||
|
8856990B02
|
8856990B02
88569-90B02
Clamp (for Cooler Relay)
|
88569-90B02 |
— | ||
|
8856990B03
|
8856990B03
88569-90B03
Clamp (for Cooler Relay)
|
88569-90B03 |
— | ||
|
8856990B04
|
8856990B04
88569-90B04
Clamp (for Cooler Relay)
|
88569-90B04 |
— | ||
|
8856990B05
|
8856990B05
88569-90B05
Clamp (for Cooler Relay)
|
88569-90B05 |
— | ||
|
8856990B06
|
8856990B06
88569-90B06
Clamp (for Cooler Relay)
|
88569-90B06 |
— | ||
|
8856990B07
|
8856990B07
88569-90B07
Clamp (for Cooler Relay)
|
88569-90B07 |
— | ||
|
8856990B08
|
8856990B08
88569-90B08
Clamp (for Cooler Relay)
|
88569-90B08 |
— | ||
|
8856990B09
|
8856990B09
88569-90B09
Clamp (for Cooler Relay)
|
88569-90B09 |
— | ||
|
8856990B10
|
8856990B10
88569-90B10
Clamp (for Cooler Relay)
|
88569-90B10 |
— | ||
|
8856990B11
|
8856990B11
88569-90B11
Clamp (for Cooler Relay)
|
88569-90B11 |
— | ||
|
8856990B16
|
8856990B16
88569-90B16
Clamp (for Cooler Relay)
|
88569-90B16 |
— | ||
|
8868890B02
|
8868890B02
88688-90B02
Bracket, Cooler Diaphragm
|
88688-90B02 |
— | ||
|
8868890B03
|
8868890B03
88688-90B03
Bracket, Heater Water Hose
|
88688-90B03 |
— | ||
|
8868890B08
|
8868890B08
88688-90B08
Bracket, Cooler Diaphragm
|
88688-90B08 |
— | ||
|
8868890B14
|
8868890B14
88688-90B14
Bracket, Cooler Diaphragm
|
88688-90B14 |
— | ||
|
8868890B15
|
8868890B15
88688-90B15
Bracket, Cooler Diaphragm
|
88688-90B15 |
— | ||
|
8868890B20
|
8868890B20
88688-90B20
Bracket, Cooler Diaphragm
|
88688-90B20 |
— | ||
|
9165190B00
|
9165190B00
91651-90B00
New Genuine Part
|
91651-90B00 |
— | ||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
US $0.55 |
||
|
9009914054
|
9009914054
90099-14054
RING
|
90099-14054 |
— | ||
|
9009914065
|
9009914065
90099-14065
RING
|
90099-14065 |
— | ||
|
9046315439
|
9046315439
90463-15439 New Genuine Part |
90463-15439 |
US $2.62 |
||
|
9048001149
|
9048001149
90480-01149
New Genuine Part
|
90480-01149 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
