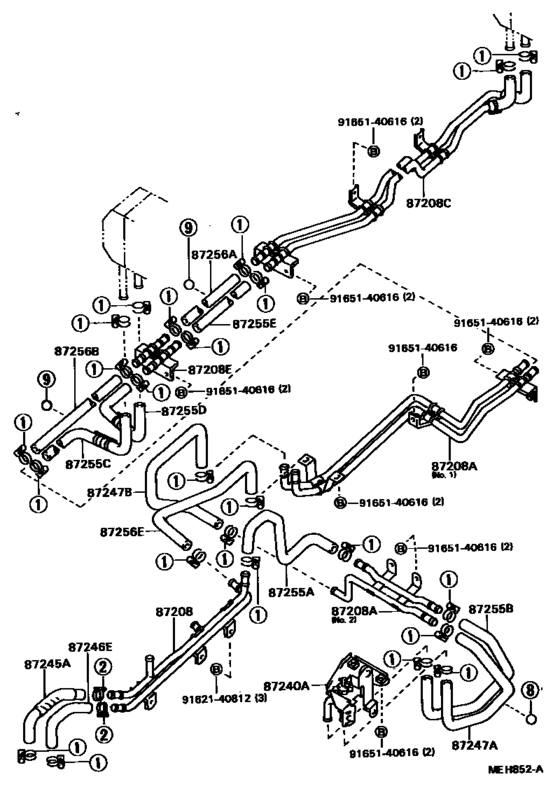

Heating & Air Conditioning - Water Piping ([10.1986 - ] (8610- )FB30) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208
|
87208
87208-90B21
Pipe Sub-Assy, Heater Water
[10.1986 - 01.1993] FB30 |
87208-90B21 |
— | ||
|
87208A
|
87208A
87208-90B06
Pipe Sub-Assy, Heater Water, A
[05.1982 - 01.1993] BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD HB30,FB30,HDB30,HZB30:NO.1 |
87208-90B06 |
— | ||
|
87208A
|
87208A
87208-90B17
Pipe Sub-Assy, Heater Water, A
[10.1986 - 01.1993] HB31 NO.2; FB30,HB30..LHD NO.2 |
87208-90B17 |
— | ||
|
87208C
|
87208C
87209-90B15 Pipe Sub-Assy, Heater Water, CHEATER WATER, C [10.1986 - 01.1993] FB30,HB30,HDB30,HZB30..LHD |
87209-90B15 |
US $168.90 |
||
|
87208E
|
87208E
87208-90B09
Pipe Sub-Assy, Heater Water, E
[10.1986 - 01.1993] FB30,HDB30,HZB30 |
87208-90B09 |
— | ||
|
87240A
|
87240A
87240-90B03 Valve Assy, Rear Heater WaterREAR HEATER WATER [05.1982 - 01.1993] BB20,21,FB30,HB30,HDB30,HZB30,RB20..LHD |
87240-90B03 |
US $43.68 |
||
|
87245A
|
87245A
87245-90B47 Hose, Heater Water, Inlet AHEATER WATER, INLET A [10.1986 - 01.1993] FB30 |
87245-90B47 |
US $17.91 |
||
|
87246E
|
87246E
87245-90B56 Hose, Heater Water, Outlet EHEATER WATER, OUTLET E [10.1986 - 01.1993] FB30 |
87245-90B56 |
US $34.07 |
||
|
87247A
|
87247A
87245-90B51 Hose, Heater Water, AHEATER WATER, A [10.1986 - 01.1993] FB30,HB30..LHD |
87245-90B51 |
US $25.77 |
||
|
87247B
|
87247B
87245-90B52 Hose, Heater Water, BHEATER WATER, B [10.1986 - 01.1993] FB30,HB30..LHD |
87245-90B52 |
US $13.40 |
||
|
87255A
|
87255A
87245-90B49 Hose, Rear Heater Water Inlet, A(From Engine)REAR HEATER WATER INLET, A(FROM ENGINE) [10.1986 - 01.1993] FB30 |
87245-90B49 |
US $22.42 |
||
|
87255B
|
87255B
87245-90B50 Hose, Rear Heater Water Inlet, BREAR HEATER WATER INLET, B [10.1986 - 01.1993] FB30,HB30..LHD |
87245-90B50 |
US $25.77 |
||
|
87255C
|
87255C
87209-90B11 Hose, Rear Heater Water Inlet, C[10.1986 - 01.1993] HZB30..DLX,STD;FB30,HB30,HDB30 |
87209-90B11 |
US $32.76 |
||
| replacement | |||||
|
87255C
|
87255C
87209-90B10 Hose, Rear Heater Water Inlet, CREAR HEATER WATER INLET, A(FROM ENGINE) [10.1986 - 01.1993] HZB30..DLX,STD;FB30,HB30,HDB30 |
87209-90B10 |
US $38.44 |
||
|
87255D
|
87255D
87209-90B12 Hose, Rear Heater Water Inlet, D[10.1986 - 01.1993] HZB30..DLX,STD;FB30,HB30,HDB30 |
87209-90B12 |
US $29.27 |
||
| replacement | |||||
|
87255D
|
87255D
87209-90B10 Hose, Rear Heater Water Inlet, CREAR HEATER WATER INLET, A(FROM ENGINE) [10.1986 - 01.1993] HZB30..DLX,STD;FB30,HB30,HDB30 |
87209-90B10 |
US $38.44 |
||
|
87255E
|
87255E
99556-30700
Hose, Heater Water, Inlet A
[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=630 |
99556-30700 |
— | ||
| replacement | |||||
|
87255E
|
87255E
99556-31000 Hose, Heater Water, Inlet B[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=630 |
99556-31000 |
from US $22.19 |
||
|
87256A
|
87256A
99556-30700
Hose, Heater Water, Inlet A
[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=630 |
99556-30700 |
— | ||
| replacement | |||||
|
87256A
|
87256A
99556-31000 Hose, Heater Water, Inlet B[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=630 |
99556-31000 |
from US $22.19 |
||
|
87256B
|
87256B
99556-30980 Hose, Heater Water, Inlet A[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=730 |
99556-30980 |
US $26.06 |
||
| replacement | |||||
|
87256B
|
87256B
99556-31000 Hose, Heater Water, Inlet B[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30 *H,L=730 |
99556-31000 |
from US $22.19 |
||
|
87256E
|
87256E
87245-90B53 Hose, Rear Heater Water Outlet, E (To Engine)REAR HEATER WATER OUTLET, E (TO ENGINE) [10.1986 - 01.1993] FB30 |
87245-90B53 |
US $21.69 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
