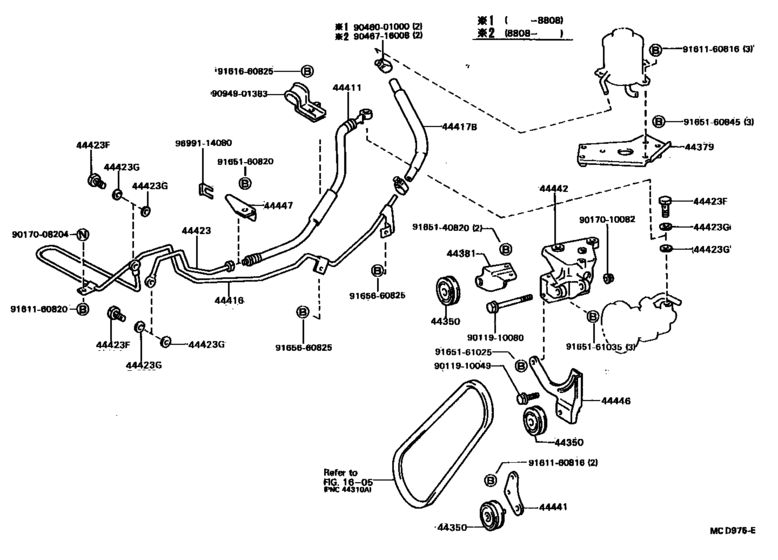

Power Steering Tube ([10.1986 - ] (8610- )FB30) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44350
|
44350
44350-36040
Pulley Assy, Idle
[10.1986 - 01.1993] FB30 INSIDE |
44350-36040 |
— | ||
|
44350
|
44350
44350-36050 Pulley Assy, Power Steering IdlePOWER STEERING IDLE [10.1986 - 01.1993] FB30 OUTSIDE |
44350-36050 |
US $109.20 |
||
|
44379
|
44379
44379-36140 Bracket, Oil Reservoir, No.2OIL RESERVOIR, NO.2 [10.1986 - 01.1993] FB30 |
44379-36140 |
US $70.18 |
||
|
44381
|
44381
44381-36010 Bracket, Power Steering Idle PulleyPOWER STEERING IDLE PULLEY [10.1986 - 01.1993] FB30 |
44381-36010 |
US $18.05 |
||
|
44411
|
44411
44411-36250 Hose, Pressure FeedPRESSURE FEED [10.1986 - 01.1993] FB30 |
44411-36250 |
US $165.98 |
||
|
44416
|
44416
44416-36160 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [10.1986 - 08.1988] FB30 |
44416-36160 |
US $136.86 |
||
|
44416
|
44416
44416-36270 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [08.1988 - 01.1993] FB30 |
44416-36270 |
US $131.04 |
||
|
44417B
|
44417B
90447-18032 Hose, Return Tube(For Return Tube To Vane Pump)RETURN TUBE(FOR RETURN TUBE TO VANE PUMP) [10.1986 - 01.1993] FB30 |
90447-18032 |
US $24.61 |
||
|
44423
|
44423
44423-36080 Tube, Oil Pump To Gear BoxOIL PUMP TO GEAR BOX [10.1986 - 08.1988] FB30,HB30..LHD |
44423-36080 |
US $84.45 |
||
|
44423
|
44423
44423-36210 Tube, Oil Pump To Gear BoxOIL PUMP TO GEAR BOX [08.1988 - 01.1993] RB20..LHD; FB30,HB30,HDB30,HZB30..LHD |
44423-36210 |
US $49.94 |
||
|
44423F
|
44423F
90401-14003 Bolt, Union(For Oil Cooler)[10.1985 - 01.1993] BB22,FB30,HB3#,HDB30,HZB30,RB20 GEAR HOUSING SIDE |
90401-14003 |
US $5.92 |
||
|
44423F
|
44423F
90401-16004 Bolt, Union(For Pressure Feed Hose)[05.1982 - 01.1993] BB22,FB30,HB3#,HDB30,HZB30,RB20 PUMP SIDE |
90401-16004 |
US $7.86 |
||
| replacement | |||||
|
44423F
|
44423F
90401-16027 Bolt, Union(For Pressure Feed Tube)[05.1982 - 01.1993] BB22,FB30,HB3#,HDB30,HZB30,RB20 PUMP SIDE |
90401-16027 |
from US $9.01 |
||
|
44423G
|
44423G
90430-14235 Gasket, W/head Taper Screw Plug[10.1985 - 01.1993] BB22,FB30,HB3#,HDB30,HZB30,RB20 GEAR HOUSING SIDE; BB20,23,3# GEAR HOUSING SIDE |
90430-14235 |
US $3.68 |
||
|
44423G
|
44423G
90430-16168 Gasket(For Pressure Feed Tube)[08.1984 - 01.1993] BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..ARL,GEN,ME PUMP SIDE |
90430-16168 |
from US $1.25 |
||
|
44441
|
44441
44441-36090 Bracket, Pump, FrontPUMP, FRONT [10.1986 - 01.1993] FB30 |
44441-36090 |
US $24.61 |
||
|
44442
|
44442
44442-36100 Bracket, Pump, RearPUMP, REAR [10.1986 - 01.1993] FB30 |
44442-36100 |
US $131.04 |
||
|
44446
|
44446
44446-36010 Strut, AdjustingADJUSTING [10.1986 - 01.1993] FB30 |
44446-36010 |
US $37.56 |
||
|
44447
|
44447
44447-36071 Bracket, Power Steering Oil Cooler Tube Support[10.1986 - 01.1993] FB30,HB30,HDB30,HZB30..LHD |
44447-36071 |
US $20.24 |
||
|
9011910049
|
9011910049
90119-10049 Bolt, Center Support Bearing Bracket |
90119-10049 |
from US $1.58 |
||
|
9011910080
|
9011910080
90119-10080 New Genuine Part |
90119-10080 |
US $16.89 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.82 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9046001000
|
9046001000
90460-01000
New Genuine Part
|
90460-01000 |
— | ||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
US $4.80 |
||
|
9094901383
|
9094901383
90949-01383
New Genuine Part
|
90949-01383 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161660825
|
9161660825
91616-60825
Bolt(for Head To Camshaft Bearing Cap)
|
91616-60825 |
— | ||
| replacement | |||||
|
9161660825
|
9161660825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165161035
|
9165161035
91651-61035 BOLT |
91651-61035 |
US $3.20 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9699114080
|
9699114080
96991-14080 CLIP |
96991-14080 |
US $0.87 |
||
