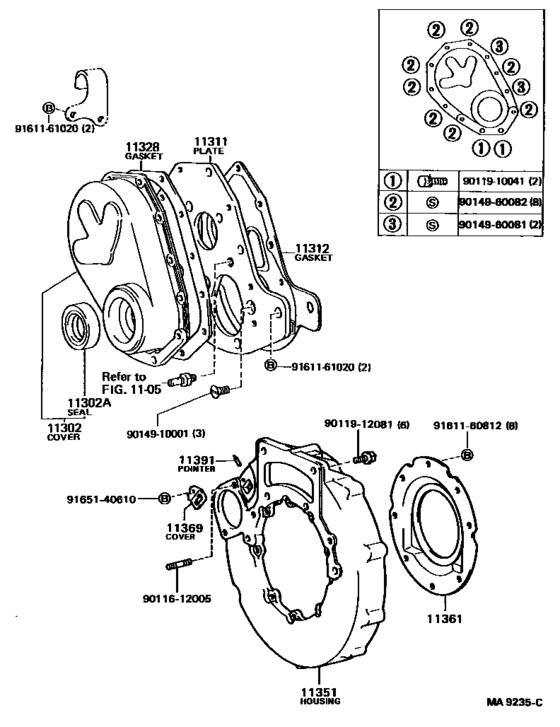

Timing Gear Cover & Rear End Plate ([10.1986 - ] (8610- )3F) Diagram Toyota COASTER
- Year
- 1986 - 1993
- Sales region
- Europe
- Frame
- FB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 3F
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-61031
Cover Sub-Assy, Timing Chain Or Belt
[10.1986 - 01.1993] 3F..FB30 |
11302-61031 |
— | ||
|
11302A
|
11302A
90311-45008 Seal, Oil(For Timing Chain Or Belt Cover)[10.1986 - 01.1993] 3F..FB30 |
90311-45008 |
from US $8.64 |
||
|
11311
|
11311
11311-61020
Plate, Front End
[10.1986 - 01.1993] 3F..FB30 |
11311-61020 |
— | ||
|
11312
|
11312
11312-61020
Gasket, Front End Plate
[10.1986 - 01.1990] 3F..FB30 |
11312-61020 |
— | ||
| replacement | |||||
|
11312
|
11312
11312-61021 Gasket, Front End Plate[10.1986 - 01.1990] 3F..FB30 |
11312-61021 |
US $17.63 |
||
|
11312
|
11312
11312-61021 Gasket, Front End Plate[01.1990 - 01.1993] 3F..FB30 |
11312-61021 |
US $17.63 |
||
|
11328
|
11328
11328-61010 Gasket, Timing Gear Or Chain Cover[10.1986 - 01.1993] 3F..FB30 |
11328-61010 |
US $8.32 |
||
|
11351
|
11351
11351-61020 Housing, FlywheelFLYWHEEL [10.1986 - 01.1993] 3F..FB30 |
11351-61020 |
US $2,853.76 |
||
|
11361
|
11361
11361-61010 Cover, Flywheel Housing UnderFLYWHEEL HOUSING UNDER [10.1986 - 01.1993] 3F..FB30 |
11361-61010 |
US $91.73 |
||
|
11369
|
11369
11369-60011
Cover, Flywheel Housing Front
[10.1986 - 01.1993] 3F..FB30 |
11369-60011 |
— | ||
|
11391
|
11391
11391-60010
Pointer, Timing
[10.1986 - 01.1993] 3F..FB30 |
11391-60010 |
— | ||
|
9011612005
|
9011612005
90116-12005 Bolt, Stud(For Manifold To Cylinder Head) |
90116-12005 |
US $2.88 |
||
|
9011910041
|
9011910041
90119-10041 New Genuine Part |
90119-10041 |
US $2.91 |
||
|
9011912081
|
9011912081
90119-12081 New Genuine Part |
90119-12081 |
US $2.18 |
||
|
9014910001
|
9014910001
90149-10001 New Genuine Part |
90149-10001 |
US $2.18 |
||
|
9014960081
|
9014960081
90149-60081
New Genuine Part
|
90149-60081 |
— | ||
|
9014960082
|
9014960082
90149-60082
SCREW
|
90149-60082 |
— | ||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
