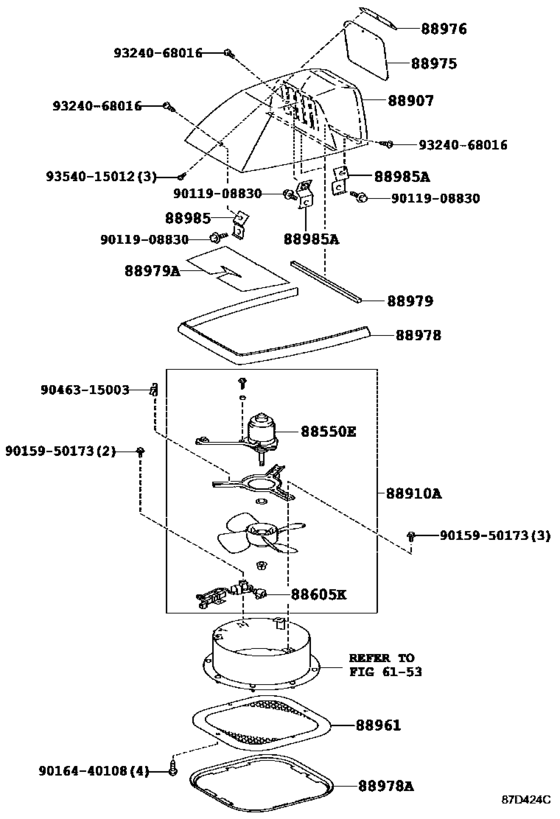

Ventilator ([01.2013 - 07.2015] (1301-1507)EX,LX) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- EX
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88550E
|
88550E
88550-0S050
Motor Assy, Blower
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88550-0S050 |
— | ||
|
88605K
|
88605K
88605-0S410
Harness Sub-Assy, Wiring Air Conditioner
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88605-0S410 |
— | ||
|
88907
|
88907
88907-0S010-A0
Cover Sub-Assy, Boost Ventilator
[01.2013 - 07.2015] GRB53,XZB53..EX,LX WHITE,058 ,2DT ,2HL; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,WHITE,058 ,2DT ,2HL |
88907-0S010-A0 |
— | ||
|
88907
|
88907
88907-0S010-E0
Cover Sub-Assy, Boost Ventilator
[01.2013 - 07.2015] GRB53,XZB53..EX,LX BEIGE,2FU; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,BEIGE,2FU |
88907-0S010-E0 |
— | ||
|
88907
|
88907
88907-0S010-E1
Cover Sub-Assy, Boost Ventilator
[01.2013 - 07.2015] GRB53,XZB53..EX,LX BEIGE ME.,4R4; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,BEIGE ME.,4R4 |
88907-0S010-E1 |
— | ||
|
88907
|
88907
88907-0S020-A0
Cover Sub-Assy, Boost Ventilator
[07.2015 -] GRB53..EX,LX WHITE,058 ,2DT ,2HL; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN,WHITE,058 ,2DT ,2HL |
88907-0S020-A0 |
— | ||
|
88907
|
88907
88907-0S020-E0
Cover Sub-Assy, Boost Ventilator
[07.2015 -] GRB53..EX,LX BEIGE,2FU; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN,BEIGE,2FU |
88907-0S020-E0 |
— | ||
|
88907
|
88907
88907-0S020-E1
Cover Sub-Assy, Boost Ventilator
[07.2015 -] GRB53..EX,LX BEIGE ME.,4R4; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN,BEIGE ME.,4R4 |
88907-0S020-E1 |
— | ||
|
88910A
|
88910A
88910-0S010
Ventilator Assy, Boost
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88910-0S010 |
— | ||
|
88961
|
88961
88961-0S010-A0
Grille, Boost Ventilator
[01.2013 - 07.2015] GRB53,XZB53..EX,LX IVORY,TRIM4#; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,IVORY,TRIM4# |
88961-0S010-A0 |
— | ||
|
88975
|
88975
88975-36020 Butterfly, Boost Ventilator[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88975-36020 |
US $8.30 |
||
|
88975
|
88975
88975-36030
Butterfly, Boost Ventilator
[07.2015 -] GRB53..EX,LX; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN |
88975-36030 |
— | ||
|
88976
|
88976
88976-0S010
Plate, Boost Ventilator Butterfly
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88976-0S010 |
— | ||
|
88976
|
88976
88976-0S020
Plate, Boost Ventilator Butterfly
[07.2015 -] GRB53..EX,LX; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN |
88976-0S020 |
— | ||
|
88978
|
88978
88978-36040
Trim, Boost Ventilator Cover
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88978-36040 |
— | ||
|
88978
|
88978
88978-36050
Trim, Boost Ventilator Cover
[07.2015 -] GRB53..EX,LX; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN |
88978-36050 |
— | ||
|
88978A
|
88978A
88978-36020-A0 Trim, Boost Ventilator Cover[01.2013 - 07.2015] GRB53,XZB53..EX,LX IVORY,TRIM4#; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR,IVORY,TRIM4# |
88978-36020-A0 |
US $9.03 |
||
|
88979
|
88979
88979-36030 Seal, Boost Ventilator[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88979-36030 |
US $6.33 |
||
|
88979A
|
88979A
88979-0S010
Seal, Boost Ventilator No.2
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88979-0S010 |
— | ||
|
88979A
|
88979A
88979-0S020
Seal, Boost Ventilator No.2
[07.2015 -] GRB53..EX,LX; GRB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN |
88979-0S020 |
— | ||
|
88985
|
88985
88985-0S010
Bracket, Boost Ventilator
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88985-0S010 |
— | ||
|
88985A
|
88985A
88985-0S020
Bracket, Boost Ventilator No.2
[01.2013 - 07.2015] GRB53,XZB53..EX,LX; GRB53,XZB53..EX,LX SIDE GLASS-SLIDEGLASS:GREEN REINFOR |
88985-0S020 |
— | ||
|
9011908830
|
9011908830
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
| replacement | |||||
|
9011908830
|
9011908830
47327-60232 Tube, Rear Brake, No.7 |
47327-60232 |
US $14.40 |
||
|
9015950173
|
9015950173
90159-50173 Screw |
90159-50173 |
US $0.52 |
||
|
9016440108
|
9016440108
90164-40108 New Genuine Part |
90164-40108 |
US $0.73 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9324068016
|
9324068016
93240-68016 New Genuine Part |
93240-68016 |
US $0.83 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
