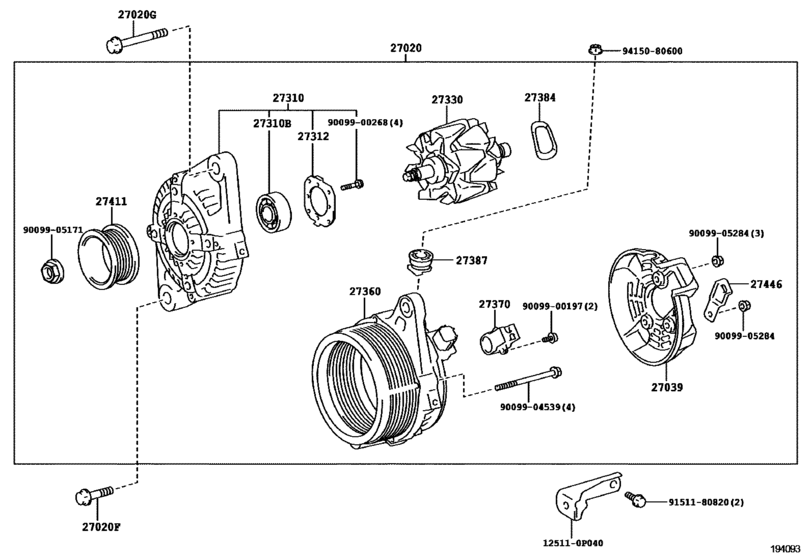

Alternator ([01.2013 - ] 12V 100A (1301- )6GRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0P160
Alternator Assy
[01.2013 - 07.2015] 6GRFE..GRB53 12V 100A |
27060-0P160 |
— | ||
|
27020F
|
27020F
90105-C0170
Bolt, No.1(For Alternator)
[01.2013 - 07.2015] 6GRFE..GRB53 |
90105-C0170 |
— | ||
|
27020G
|
27020G
90105-C0098
Bolt(For Alternator)
[01.2013 - 07.2015] 6GRFE..GRB53 |
90105-C0098 |
— | ||
|
27039
|
27039
27039-0P070
Cover, Alternator Rear End
[01.2013 - 07.2015] 6GRFE..GRB53 |
27039-0P070 |
— | ||
|
27310
|
27310
27310-0P070
Frame Assy, Drive End, Alternator
[01.2013 - 07.2015] 6GRFE..GRB53 |
27310-0P070 |
— | ||
|
27310B
|
27310B
90068-10042
Bearing(For Alternator Drive End Frame)
[01.2013 - 07.2015] 6GRFE..GRB53 |
90068-10042 |
— | ||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[01.2013 - 07.2015] 6GRFE..GRB53 |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-0P070
Rotor Assy, Alternator
[01.2013 - 07.2015] 6GRFE..GRB53 |
27330-0P070 |
— | ||
|
27360
|
27360
27360-0P280
Coil Assy, Alternator
[01.2013 - 07.2015] 6GRFE..GRB53 |
27360-0P280 |
— | ||
|
27370
|
27370
27370-0T030
Holder Assy, Alternator Brush
[01.2013 - 07.2015] 6GRFE..GRB53 |
27370-0T030 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[01.2013 - 07.2015] 6GRFE..GRB53 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-0H110
Insulator, Alternator Terminal
[01.2013 - 07.2015] 6GRFE..GRB53 |
27387-0H110 |
— | ||
|
27411
|
27411
27411-0P280
Pulley, Alternator
[01.2013 - 07.2015] 6GRFE..GRB53 |
27411-0P280 |
— | ||
|
27446
|
27446
27446-31390
Clip, Alternator Cord
[01.2013 - 07.2015] 6GRFE..GRB53 |
27446-31390 |
— | ||
|
125110P040
|
125110P040
12511-0P040
Bracket, Alternator, No.1
|
12511-0P040 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.86 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
