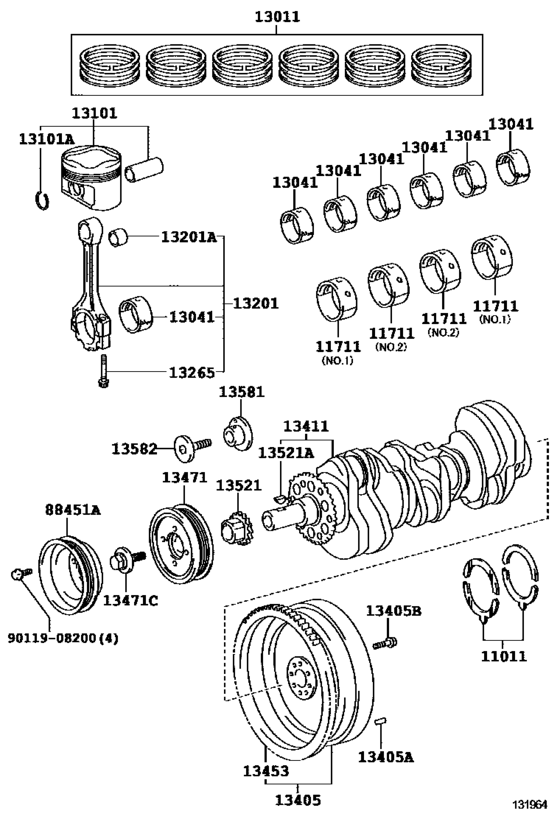

Crankshaft & Piston ([01.2013 - ] (1301- )6GRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-31071 Washer Set, Crankshaft Thrust[01.2013 - 07.2015] 6GRFE..GRB53 STD |
11011-31071 |
from US $23.56 |
||
|
11711
|
11711
11071-31050-01 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 1,NO.2,REFER R/M |
11071-31050-01 |
from US $19.31 |
||
|
11711
|
11711
11071-31050-02 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 2,NO.2,REFER R/M |
11071-31050-02 |
from US $19.07 |
||
|
11711
|
11711
11071-31050-03 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 3,NO.2,REFER R/M |
11071-31050-03 |
from US $19.40 |
||
|
11711
|
11711
11071-31050-04 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 4,NO.2,REFER R/M |
11071-31050-04 |
from US $19.11 |
||
|
11711
|
11711
11071-31050-05 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 5,NO.2,REFER R/M |
11071-31050-05 |
US $36.34 |
||
|
11711
|
11711
11701-31080-01 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 1,NO.1,REFER R/M |
11701-31080-01 |
from US $20.20 |
||
|
11711
|
11711
11701-31080-02 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 2,NO.1,REFER R/M |
11701-31080-02 |
from US $20.18 |
||
|
11711
|
11711
11701-31080-03 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 3,NO.1,REFER R/M |
11701-31080-03 |
from US $19.89 |
||
|
11711
|
11711
11701-31080-04 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 4,NO.1,REFER R/M |
11701-31080-04 |
from US $20.69 |
||
|
11711
|
11711
11701-31080-05 Bearing, CrankshaftCRANKSHAFT [01.2013 - 07.2015] 6GRFE..GRB53 MARK 5,NO.1,REFER R/M |
11701-31080-05 |
from US $20.32 |
||
|
13011
|
13011
13011-31210 Ring Set, PistonPISTON [01.2013 - 07.2015] 6GRFE..GRB53 STD |
13011-31210 |
from US $225.39 |
||
|
13041
|
13041
13041-31090-01 Bearing, Connecting RodCONNECTING ROD [01.2013 - 07.2015] 6GRFE..GRB53 MARK 1,REFER REPAIR MANUAL |
13041-31090-01 |
from US $11.64 |
||
|
13041
|
13041
13041-31090-02 Bearing, Connecting Rod[01.2013 - 07.2015] 6GRFE..GRB53 MARK 2,REFER REPAIR MANUAL |
13041-31090-02 |
from US $13.05 |
||
|
13041
|
13041
13041-31090-03 Bearing, Connecting Rod[01.2013 - 07.2015] 6GRFE..GRB53 MARK 3,REFER REPAIR MANUAL |
13041-31090-03 |
from US $12.15 |
||
|
13041
|
13041
13041-31090-04 Bearing, Connecting RodCONNECTING ROD [01.2013 - 07.2015] 6GRFE..GRB53 MARK 4,REFER REPAIR MANUAL |
13041-31090-04 |
from US $11.56 |
||
|
13101
|
13101
13101-31120-A0 Piston Sub-Assy, W/pin[01.2013 - 07.2015] 6GRFE..GRB53 STD,MARK A,REFER R/M |
13101-31120-A0 |
from US $52.07 |
||
|
13101
|
13101
13101-31120-B0 Piston Sub-Assy, W/pin[01.2013 - 07.2015] 6GRFE..GRB53 STD,MARK B,REFER R/M |
13101-31120-B0 |
from US $56.36 |
||
|
13101
|
13101
13101-31120-C0 Piston Sub-Assy, W/pin[01.2013 - 07.2015] 6GRFE..GRB53 STD,MARK C,REFER R/M |
13101-31120-C0 |
US $63.77 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[01.2013 - 07.2015] 6GRFE..GRB53 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-39235-A0 Rod Sub-Assy, Connecting[01.2013 - 07.2015] 6GRFE..GRB53 MARK A,REFER R/M |
13201-39235-A0 |
from US $167.73 |
||
|
13201
|
13201
13201-39235-B0 Rod Sub-Assy, Connecting[01.2013 - 07.2015] 6GRFE..GRB53 MARK B,REFER R/M |
13201-39235-B0 |
from US $156.96 |
||
|
13201
|
13201
13201-39235-C0 Rod Sub-Assy, Connecting[01.2013 - 07.2015] 6GRFE..GRB53 MARK C,REFER R/M |
13201-39235-C0 |
US $143.27 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[01.2013 - 07.2015] 6GRFE..GRB53 |
90999-73144 |
from US $2.52 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[01.2013 - 07.2015] 6GRFE..GRB53 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[01.2013 - 07.2015] 6GRFE..GRB53 |
13265-28020 |
from US $3 |
||
|
13405
|
13405
13405-31081 Flywheel Sub-Assy[01.2013 - 07.2015] 6GRFE..GRB53 |
13405-31081 |
from US $326.20 |
||
|
13405A
|
13405A
90250-10017 Pin, Straight(For Clutch Housing Set)[01.2013 - 07.2015] 6GRFE..GRB53 L=20,OD=10 |
90250-10017 |
from US $2.08 |
||
|
13405B
|
13405B
90105-10294 Bolt, Flywheel Setting[01.2013 - 07.2015] 6GRFE..GRB53 |
90105-10294 |
from US $1.07 |
||
|
13411
|
13411
13401-31060 Crankshaft[01.2013 - 07.2015] 6GRFE..GRB53 |
13401-31060 |
from US $1,202.10 |
||
|
13453
|
13453
13453-31020 Gear, Flywheel RingFLYWHEEL RING [01.2013 - 07.2015] 6GRFE..GRB53 |
13453-31020 |
US $77.93 |
||
|
13471
|
13471
13470-31070
Pulley, Crankshaft
[01.2013 - 07.2015] 6GRFE..GRB53 |
13470-31070 |
— | ||
|
13471C
|
13471C
90119-16020 Bolt(For Crankshaft Pulley Set)[01.2013 - 07.2015] 6GRFE..GRB53 |
90119-16020 |
from US $5.44 |
||
|
13521
|
13521
13521-31041 Gear Or Sprocket, Crankshaft Timing[01.2013 - 07.2015] 6GRFE..GRB53 |
13521-31041 |
from US $19.09 |
||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[01.2013 - 07.2015] 6GRFE..GRB53 |
95161-30516 |
from US $1.17 |
||
|
13581
|
13581
13581-31030 Shaft, Idle Gear, No.1[01.2013 - 07.2015] 6GRFE..GRB53 |
13581-31030 |
from US $6.44 |
||
|
13582
|
13582
13582-31031 Shaft, Idle Gear, No.2[01.2013 - 07.2015] 6GRFE..GRB53 |
13582-31031 |
from US $2.50 |
||
|
88451A
|
88451A
88451-0S010
Pully,crankshaft
[01.2013 - 07.2015] GRB53 |
88451-0S010 |
— | ||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
