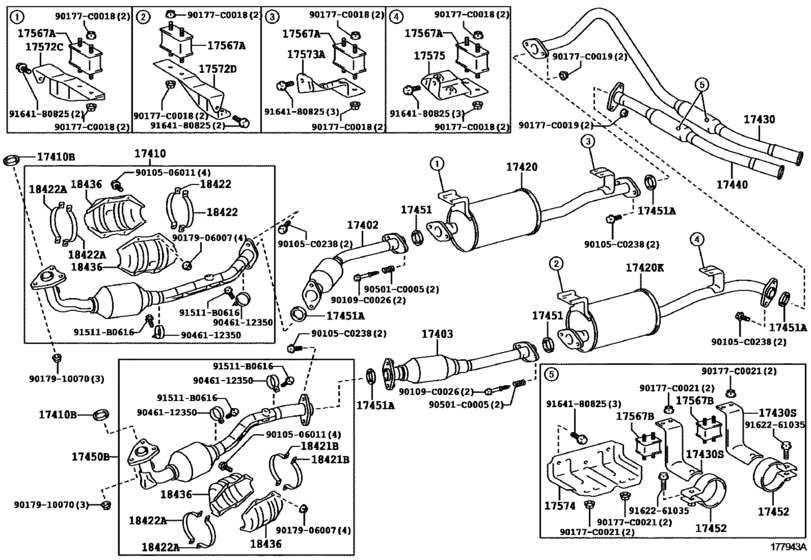

Exhaust Pipe ([01.2013 - ] (1301- )6GRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17402
|
17402
17403-0P140
Pipe Sub-Assy, Exhaust, Front No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17403-0P140 |
— | ||
|
17403
|
17403
17404-0P100
Pipe Sub-Assy, Exhaust, Front No.3
[01.2013 - 07.2015] 6GRFE..GRB53 |
17404-0P100 |
— | ||
|
17410
|
17410
17410-0P420
Pipe Assy, Exhaust, Front
[01.2013 - 07.2015] 6GRFE..GRB53 |
17410-0P420 |
— | ||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[01.2013 - 07.2015] 6GRFE..GRB53 |
90917-06066 |
from US $5.05 |
||
|
17420
|
17420
17420-0P340
Pipe Assy, Exhaust, Center
[01.2013 - 07.2015] 6GRFE..GRB53 |
17420-0P340 |
— | ||
|
17420K
|
17420K
17480-0P010
Pipe Assy, Exhaust, Center No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17480-0P010 |
— | ||
|
17430
|
17430
17430-0P320
Pipe Assy, Exhaust, Tail
[01.2013 - 07.2015] 6GRFE..GRB53 |
17430-0P320 |
— | ||
|
17430S
|
17430S
17561-17010 Bracket, Exhaust Tail Pipe (For Rear)[01.2013 - 07.2015] 6GRFE..GRB53 |
17561-17010 |
from US $12.48 |
||
|
17440
|
17440
17440-0P090
Pipe, Exhaust Tail, Lh
[01.2013 - 07.2015] 6GRFE..GRB53 |
17440-0P090 |
— | ||
|
17450B
|
17450B
17450-0P260
Pipe Assy, Exhaust, Front No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17450-0P260 |
— | ||
|
17451
|
17451
17451-74040 Gasket, Exhaust Pipe[01.2013 - 07.2015] 6GRFE..GRB53 |
17451-74040 |
from US $19.29 |
||
|
17451A
|
17451A
90917-06089 Gasket, Exhaust Pipe[01.2013 - 07.2015] 6GRFE..GRB53 |
90917-06089 |
US $8 |
||
|
17452
|
17452
90461-32033 Clamp, Exhaust Pipe[01.2013 - 07.2015] 6GRFE..GRB53 |
90461-32033 |
US $13.12 |
||
|
17567A
|
17567A
17567-58020
Cushion, Exhaust Pipe Support
[01.2013 - 07.2015] 6GRFE..GRB53 |
17567-58020 |
— | ||
|
17567B
|
17567B
17567-58030
Cushion, Exhaust Pipe Support, No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17567-58030 |
— | ||
|
17572C
|
17572C
17572-75240 Bracket, Exhaust Pipe Support, No.2EXHAUST PIPE SUPPORT, NO.2 [01.2013 - 07.2015] 6GRFE,3TRFE..GRB53,TRB53 |
17572-75240 |
US $20.82 |
||
|
17572D
|
17572D
17572-0P120
Bracket, Exhaust Pipe Support, No.1
[01.2013 - 07.2015] 6GRFE..GRB53 |
17572-0P120 |
— | ||
|
17573A
|
17573A
17573-17010 Bracket, Exhaust Pipe Support, No.3[01.2013 - 07.2015] N041,6GRFE,3TRFE..GRB53,TRB53,XZB53 |
17573-17010 |
US $14.27 |
||
|
17574
|
17574
17574-0P160
Bracket, Exhaust Pipe Support, No.4
[01.2013 - 07.2015] 6GRFE..GRB53 |
17574-0P160 |
— | ||
|
17575
|
17575
17573-31060
Bracket, Exhaust Pipe Support, No.5
[01.2013 - 07.2015] 6GRFE..GRB53 |
17573-31060 |
— | ||
|
18421B
|
18421B
18421-22020 Stay, Converter Protector, No.2[01.2013 - 07.2015] 6GRFE..GRB53 |
18421-22020 |
US $15.14 |
||
|
18422
|
18422
18421-22020 Stay, Converter Protector, No.2[01.2013 - 07.2015] 6GRFE..GRB53 |
18421-22020 |
US $15.14 |
||
|
18422A
|
18422A
18421-50010 Stay, Converter Protector, Lh[01.2013 - 07.2015] 6GRFE..GRB53 |
18421-50010 |
US $14.56 |
||
|
18436
|
18436
18435-50130 Protector, Monolithic Converter[01.2013 - 07.2015] 6GRFE..GRB53 |
18435-50130 |
US $40.33 |
||
|
90105C0238
|
90105C0238
90105-C0238
New Genuine Part
|
90105-C0238 |
— | ||
|
90109C0026
|
90109C0026
90109-C0026
New Genuine Part
|
90109-C0026 |
— | ||
|
90177C0018
|
90177C0018
90177-C0018
New Genuine Part
|
90177-C0018 |
— | ||
|
90177C0019
|
90177C0019
90177-C0019
New Genuine Part
|
90177-C0019 |
— | ||
|
90177C0021
|
90177C0021
90177-C0021
New Genuine Part
|
90177-C0021 |
— | ||
|
90501C0005
|
90501C0005
90501-C0005
New Genuine Part
|
90501-C0005 |
— | ||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.80 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9046112350
|
9046112350
90461-12350 Clamp, Exhaust Pipe |
90461-12350 |
US $7.36 |
||
|
9162261035
|
9162261035
91622-61035 BOLT WWASHER |
91622-61035 |
US $1.60 |
||
|
9164180825
|
9164180825
91641-80825 BOLT WWASHER |
91641-80825 |
US $2.08 |
||
