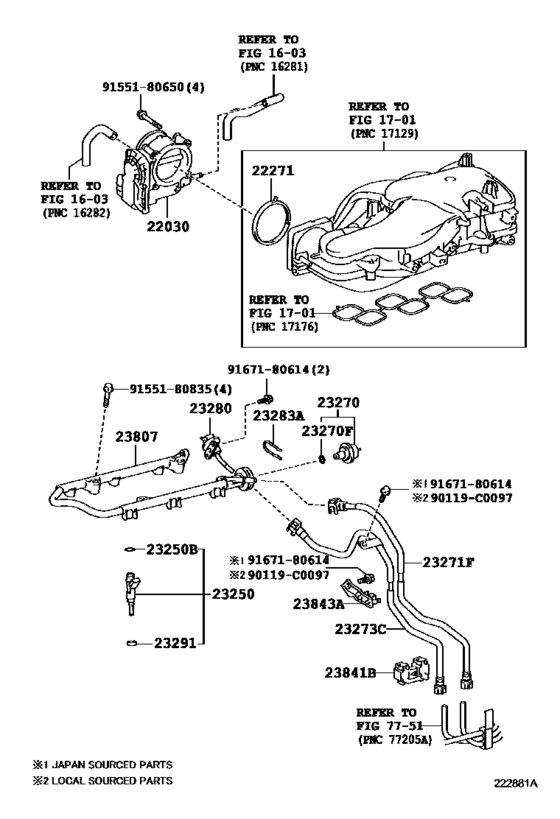

Fuel Injection System ([01.2013 - ] (1301- )6GRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31060 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [01.2013 - 07.2015] 6GRFE..GRB53 |
22030-31060 |
from US $829.92 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[01.2013 - 07.2015] 6GRFE..GRB53 |
22271-31040 |
US $5.44 |
||
|
23250
|
23250
23209-39215
Injector Assy, Fuel
[01.2013 - 07.2015] 6GRFE..GRB53 |
23209-39215 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39445 Injector Set Fuel[01.2013 - 07.2015] 6GRFE..GRB53 |
23209-39445 |
from US $174.12 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[01.2013 - 07.2015] 6GRFE..GRB53 |
90301-07033 |
from US $2.24 |
||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[01.2013 - 07.2015] 6GRFE..GRB53 |
23270-31140 |
from US $48.05 |
||
|
23270F
|
23270F
90301-07033 Ring, O(For Fuel Injector)[01.2013 - 07.2015] 6GRFE..GRB53 |
90301-07033 |
from US $2.24 |
||
|
23271F
|
23271F
23271-31090
Hose, Fuel
[01.2013 - 07.2015] 6GRFE..GRB53 |
23271-31090 |
— | ||
|
23273C
|
23273C
23273-31100
Hose, Fuel, No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
23273-31100 |
— | ||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[01.2013 - 07.2015] 6GRFE..GRB53 |
23280-31051 |
from US $67.86 |
||
|
23283A
|
23283A
23283-31010 Holder, Fuel Pressure Regulator[01.2013 - 07.2015] 6GRFE..GRB53 |
23283-31010 |
US $2.27 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[01.2013 - 07.2015] 6GRFE..GRB53 |
23291-23010 |
from US $2.98 |
||
|
23807
|
23807
23807-31120 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [01.2013 - 07.2015] 6GRFE..GRB53 |
23807-31120 |
from US $46.78 |
||
|
23841B
|
23841B
23841-0P080
Clamp, Fuel Pipe, No.1(For Efi)
[01.2013 - 07.2015] 6GRFE..GRB53 |
23841-0P080 |
— | ||
|
23843A
|
23843A
23847-31010
Clamp,fuel Pipe, No.3(For Efi)
[01.2013 - 07.2015] 6GRFE..GRB53 |
23847-31010 |
— | ||
|
90119C0097
|
90119C0097
90119-C0097
New Genuine Part
|
90119-C0097 |
— | ||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.86 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
