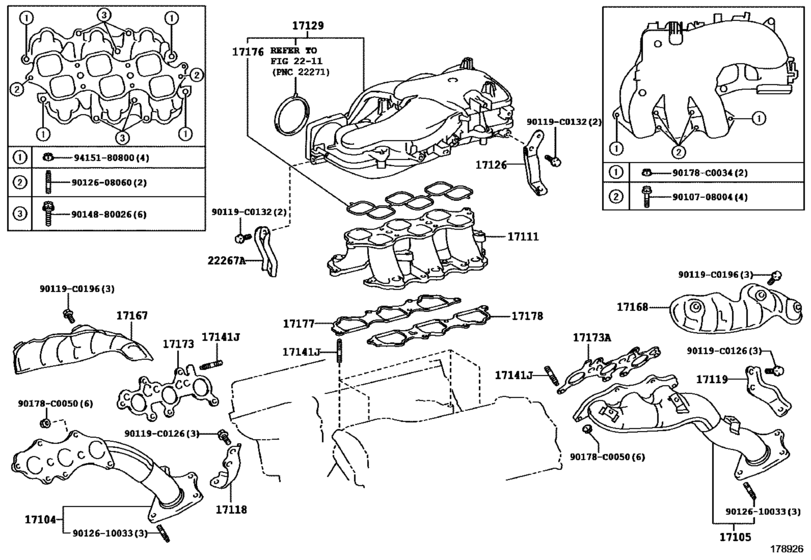

Manifold ([07.2015 - ] (1507- )6GRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17140-31A70
Manifold Sub-Assy, Exhaust, Rh
[01.2013 - 07.2015] 6GRFE..GRB53 |
17140-31A70 |
— | ||
|
17105
|
17105
17150-31A70
Manifold Sub-Assy, Exhaust, Lh
[01.2013 - 07.2015] 6GRFE..GRB53 |
17150-31A70 |
— | ||
|
17111
|
17111
17111-31200 Manifold, IntakeINTAKE [01.2013 - 07.2015] 6GRFE..GRB53 |
17111-31200 |
US $352.35 |
||
|
17118
|
17118
17118-31160
Stay, Manifold
[01.2013 - 07.2015] 6GRFE..GRB53 |
17118-31160 |
— | ||
|
17119
|
17119
17119-31160
Stay, Manifold, No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17119-31160 |
— | ||
|
17126
|
17126
17126-31061 Stay, Surge Tank, No.2[01.2013 - 07.2015] 6GRFE..GRB53 |
17126-31061 |
US $9.90 |
||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[01.2013 - 07.2015] 6GRFE..GRB53 |
17109-31181 |
from US $330.95 |
||
|
17141J
|
17141J
90126-08052 Bolt, Stud(For Oil Pan)[01.2013 - 07.2015] 6GRFE..GRB53 |
90126-08052 |
from US $0.90 |
||
|
17167
|
17167
17167-31080
Insulator, Exhaust Manifold Heat, No.1
[01.2013 - 07.2015] 6GRFE..GRB53 |
17167-31080 |
— | ||
|
17168
|
17168
17168-31080
Insulator, Exhaust Manifold Heat, No.2
[01.2013 - 07.2015] 6GRFE..GRB53 |
17168-31080 |
— | ||
|
17173
|
17173
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [01.2013 - 07.2015] 6GRFE..GRB53 |
17173-31050 |
from US $15.68 |
||
|
17173A
|
17173A
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [01.2013 - 07.2015] 6GRFE..GRB53 |
17173-31050 |
from US $15.68 |
||
|
17176
|
17176
17176-31140 Gasket, Air Surge Tank To Intake Manifold[01.2013 - 07.2015] 6GRFE..GRB53 |
17176-31140 |
from US $16 |
||
|
17177
|
17177
17177-31051 Gasket, Intake Manifold To Head, No.1[01.2013 - 07.2015] 6GRFE..GRB53 |
17177-31051 |
from US $5.62 |
||
|
17178
|
17178
17178-31041 Gasket, Intake Manifold To Head, No.2[01.2013 - 07.2015] 6GRFE..GRB53 |
17178-31041 |
from US $5.24 |
||
|
22267A
|
22267A
22267-31010 Bracket, Throttle Body[01.2013 - 07.2015] 6GRFE..GRB53 |
22267-31010 |
US $8.56 |
||
|
90119C0126
|
90119C0126
90119-C0126
New Genuine Part
|
90119-C0126 |
— | ||
|
90119C0132
|
90119C0132
90119-C0132
New Genuine Part
|
90119-C0132 |
— | ||
|
90119C0196
|
90119C0196
90119-C0196
New Genuine Part
|
90119-C0196 |
— | ||
|
90178C0034
|
90178C0034
90178-C0034
Nut (For Transmission Control Cable)
|
90178-C0034 |
— | ||
|
90178C0050
|
90178C0050
90178-C0050
New Genuine Part
|
90178-C0050 |
— | ||
|
9010708004
|
9010708004
90107-08004 New Genuine Part |
90107-08004 |
US $1.60 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
US $2.77 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.72 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.64 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
