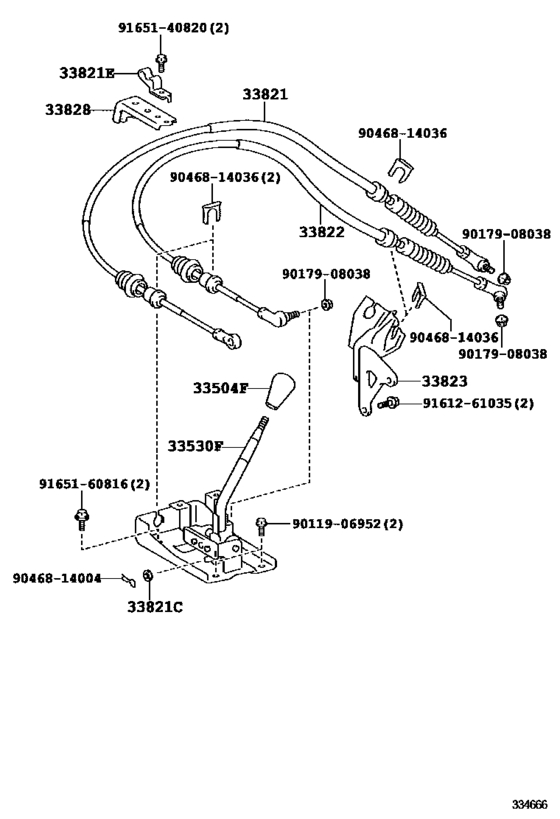

Shift Lever & Retainer ([01.2013 - ] (1301- )GRB53) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- GRB53
- grade
- STD
- ENGINE
- 6GRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-36051-C0 Knob Sub-Assy, Shift Lever[01.2013 - 07.2015] GRB53,TRB53,XZB53 BLACK,TRIM4# |
33504-36051-C0 |
US $25.99 |
||
|
33530F
|
33530F
33530-0S010
Lever Assy, Shift (For Floor Shift)
[01.2013 - 07.2015] GRB53 |
33530-0S010 |
— | ||
|
33821
|
33821
33821-0S040
Cable Transmission Control Shift (For Floor Shift)
[01.2013 - 07.2015] GRB53 |
33821-0S040 |
— | ||
|
33821C
|
33821C
90201-08023 Washer, Plate (For Transfer Control Cable)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90201-08023 |
US $0.73 |
||
|
33821E
|
33821E
33829-0S020
Clamp, No.1 (For Transmission Control Cable)
[01.2013 - 07.2015] GRB53 |
33829-0S020 |
— | ||
|
33822
|
33822
33822-0S040
Cable Transmission Control Select (For Floor Shift)
[01.2013 - 07.2015] GRB53 |
33822-0S040 |
— | ||
|
33823
|
33823
33804-36180
Bracket, Transmission Control Cable, No.1
[01.2013 - 07.2015] GRB53 |
33804-36180 |
— | ||
|
33828
|
33828
33828-36110
Bracket, Transmission Control Cable, No.4
[01.2013 - 07.2015] GRB53 |
33828-36110 |
— | ||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.72 |
||
|
9046814036
|
9046814036
90468-14036 CLIP |
90468-14036 |
US $2.91 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
