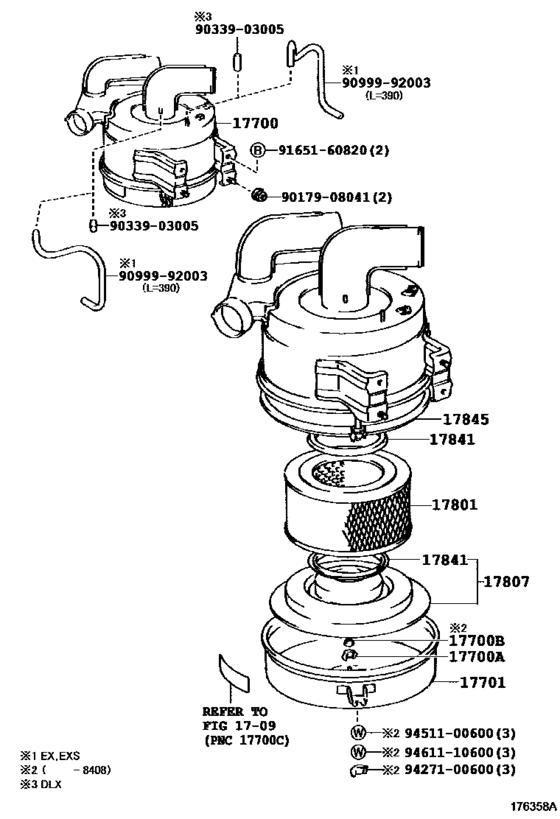

Air Cleaner ([05.1982 - 01.1990] (8205-9001)2H) Diagram Toyota COASTER
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- HB30
- grade
- EXS
- Roof
- HRF
- ENGINE
- 2H
- COOLER
- WC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-68100 Cleaner Assy, Air[05.1982 - 07.1983] 2H..HB30 |
17700-68100 |
US $1,150.24 |
||
| replacement | |||||
|
17700
|
17700
17700-68101 Cleaner Assy, Air[05.1982 - 07.1983] 2H..HB30 |
17700-68101 |
US $476.11 |
||
|
17700
|
17700
17700-68101 Cleaner Assy, Air[07.1983 - 01.1990] 2H..HB30,36 |
17700-68101 |
US $476.11 |
||
|
17700
|
17700
17700-68110 Cleaner Assy, Air[05.1982 - 07.1983] 2H..HB30 COLD SPEC |
17700-68110 |
US $1,244.88 |
||
| replacement | |||||
|
17700
|
17700
17700-68111 Cleaner Assy, Air[05.1982 - 07.1983] 2H..HB30 COLD SPEC |
17700-68111 |
US $1,244.88 |
||
|
17700
|
17700
17700-68111 Cleaner Assy, Air[07.1983 - 08.1988] 2H..HB30,36 COLD SPEC |
17700-68111 |
US $1,244.88 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1984 - 01.1993] 22R..RB2#; 14B,3B..BB2#,3#; 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
90175-08008 |
from US $2.81 |
||
|
17700A
|
17700A
94271-00800 Nut, Wing(For Air Cleaner)[05.1982 - 08.1984] 22R..RB20; 3B..BB2#,3#; 2H..HB30 |
94271-00800 |
US $1.12 |
||
|
17700B
|
17700B
90210-08004 Washer, Seal(For Air Cleaner)[05.1982 - 08.1984] 22R..RB20; 3B..BB2#,3#; 2H..HB30 |
90210-08004 |
US $4.22 |
||
| replacement | |||||
|
17700B
|
17700B
90210-08015 Washer, Seal(For Air Cleaner)[05.1982 - 08.1984] 22R..RB20; 3B..BB2#,3#; 2H..HB30 |
90210-08015 |
US $4.37 |
||
|
17701
|
17701
17701-68100
Case Sub-Assy, Air Cleaner
[05.1982 - 07.1983] 2H..HB30 |
17701-68100 |
— | ||
| replacement | |||||
|
17701
|
17701
17701-68101
Case Sub-Assy, Air Cleaner
[05.1982 - 07.1983] 2H..HB30 |
17701-68101 |
— | ||
|
17701
|
17701
17701-68101
Case Sub-Assy, Air Cleaner
[07.1983 - 01.1990] 12HT,2H..HB3# |
17701-68101 |
— | ||
|
17801
|
17801
17801-68020 Element Sub-Assy, Air Cleaner Filter[05.1982 - 01.1993] 1HZ,2H..HB30,36,HZB3# |
17801-68020 |
from US $60.65 |
||
|
17807
|
17807
17807-68010
Plate Sub-Assy, Air Cleaner Filter Set
[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17807-68010 |
— | ||
|
17841
|
17841
17841-68010 Gasket, Filter Element[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17841-68010 |
US $2.80 |
||
|
17845
|
17845
17845-68020
Gasket, Air Cleaner Cap
[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17845-68020 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-17010
Gasket, Air Cleaner Cap
[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17845-17010 |
— | ||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
|
9427100600
|
9427100600
94271-00600 Nut, Wing(For Air Cleaner) |
94271-00600 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
