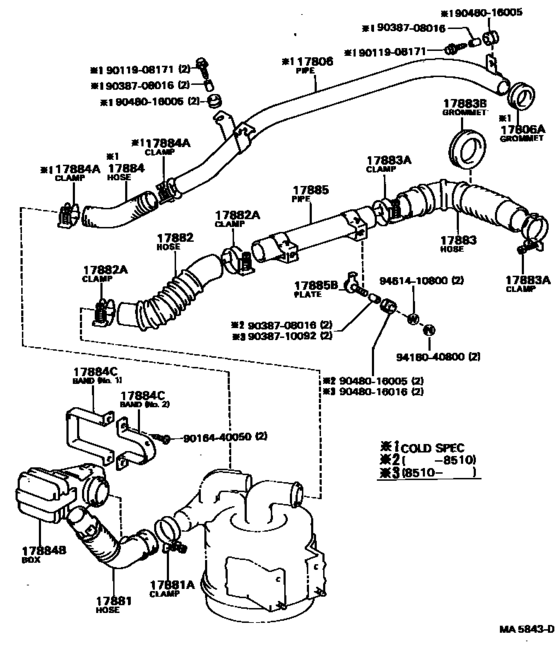

Air Cleaner ([05.1982 - 01.1990] (8205-9001)2H) Diagram Toyota COASTER
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- HB30
- grade
- EXS
- Roof
- HRF
- ENGINE
- 2H
- COOLER
- WC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17806
|
17806
59105-90B02
Pipe Sub-Assy, Air Cleaner, No.2
[05.1982 - 09.1982] 2H..HB30..CBU COLD SPEC |
59105-90B02 |
— | ||
|
17806
|
17806
59105-90B05 Pipe Sub-Assy, Air Cleaner, No.2[09.1982 - 01.1990] 2H..HB30,36..CBU COLD SPEC |
59105-90B05 |
US $238.78 |
||
|
17806A
|
17806A
90480-60386
Grommet, Air Cleaner Pipe
[05.1982 - 10.1985] 3B..BB2#,3#..CBU COLD SPEC; 2H..HB3#..CBU COLD SPEC |
90480-60386 |
— | ||
|
17881
|
17881
59131-90B01 Hose, Air Cleaner, No.1[05.1982 - 01.1993] 2H..HB30,36..CBU |
59131-90B01 |
US $55.76 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[05.1982 - 01.1993] 22R..RB2#..CBU; 14B,3B..BB2#,3#..CBU; 2H..HB30,36..CBU |
96111-10750 |
from US $3.04 |
||
|
17882
|
17882
59132-90B03 Hose, Air Cleaner, No.2[05.1982 - 01.1993] 2H..HB30,36..CBU |
59132-90B03 |
US $206.75 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1993] 14B,3B..BB2#,3#..CBU; 2H..HB30,36..CBU |
96111-10780 |
from US $5.58 |
||
|
17883
|
17883
59133-90B02 Hose, Air Cleaner, No.3[05.1982 - 01.1990] 2H..HB30,36..CBU |
59133-90B02 |
US $292.66 |
||
|
17883A
|
17883A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1990] 2H..HB30,36..CBU |
96111-10780 |
from US $5.58 |
||
|
17883B
|
17883B
90950-01349 Grommet, Air Cleaner Hose[05.1982 - 10.1985] 22R..RB2#..CBU; 3B..BB2#,3#..CBU; 2H..HB3#..CBU |
90950-01349 |
US $18.93 |
||
|
17884
|
17884
59171-90B01
Hose, Air Cleaner, No.4
[05.1982 - 09.1982] 2H..HB30..CBU COLD SPEC |
59171-90B01 |
— | ||
|
17884
|
17884
59172-90B01 Hose, Air Cleaner, No.4[09.1982 - 01.1990] 2H..HB30,36..CBU COLD SPEC |
59172-90B01 |
US $145.60 |
||
|
17884A
|
17884A
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1)[05.1982 - 01.1993] 14B,3B..BB2#,3#..CBU COLD SPEC; 2H..HB30,36..CBU COLD SPEC |
96111-10600 |
US $2.08 |
||
|
17884B
|
17884B
59137-90B00 Box, Air Cleaner, No.1[05.1982 - 01.1990] 12HT,2H..HB3#..CBU |
59137-90B00 |
US $24.75 |
||
|
17884C
|
17884C
59135-90B00 Band, Air Cleaner Box[05.1982 - 01.1990] 2H..HB30,36..CBU NO.2 |
59135-90B00 |
US $11.07 |
||
|
17884C
|
17884C
59136-90B00 Band, Air Cleaner Box[05.1982 - 01.1990] 12HT,2H..HB3#..CBU NO.1 |
59136-90B00 |
US $15.58 |
||
|
17885
|
17885
59101-90B00 Pipe, Air Cleaner[05.1982 - 01.1993] 22R..RB2#..CBU; 14B,3B..BB2#,3#..CBU; 2H..HB30,36..CBU |
59101-90B00 |
US $149.97 |
||
|
17885B
|
17885B
59117-90B00 Plate, Pipe Support[05.1982 - 10.1985] 22R..RB2#..CBU; 3B..BB2#,3#..CBU; 2H..HB3#..CBU |
59117-90B00 |
US $18.05 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.20 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
US $1.28 |
||
|
9038708016
|
9038708016
90387-08016 Collar(For Intake Air Connector) |
90387-08016 |
US $3.84 |
||
|
9038710092
|
9038710092
90387-10092 New Genuine Part |
90387-10092 |
US $2.48 |
||
|
9048016005
|
9048016005
90480-16005 Grommet(For Air Cleaner Bracket) |
90480-16005 |
US $9.92 |
||
|
9048016016
|
9048016016
90480-16016 New Genuine Part |
90480-16016 |
US $1.46 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
