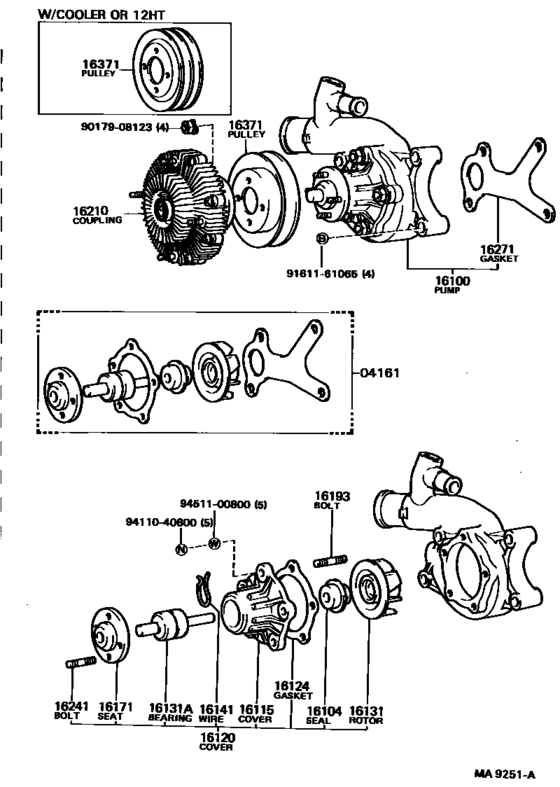

Water Pump ([10.1986 - 01.1990] (8610-9001)12HT,2H) Diagram Toyota COASTER
- Year
- 1986 - 1990
- Sales region
- General
- Frame
- HB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2H
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-68010
Pump Kit, Water
[10.1986 - 01.1990] 12HT,2H..HB3# |
04161-68010 |
— | ||
|
16100
|
16100
16100-69035
Pump Assy, Engine Water
[10.1986 - 01.1993] 12HT,2H..HB3# |
16100-69035 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-69037 Pump Assy, Engine Water[10.1986 - 01.1993] 12HT,2H..HB3# |
16100-69037 |
US $267.84 |
||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
16104-15020 |
US $22.13 |
||
|
16115
|
16115
16115-68010 Cover, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
16115-68010 |
US $37.86 |
||
|
16120
|
16120
16120-69015 Cover Assy, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
16120-69015 |
US $178.56 |
||
|
16124
|
16124
16129-68010
Gasket, Water Pump Cover
[10.1986 - 01.1990] 12HT,2H..HB3# |
16129-68010 |
— | ||
| replacement | |||||
|
16124
|
16124
16129-68011
Gasket, Water Pump Cover
[10.1986 - 01.1990] 12HT,2H..HB3# |
16129-68011 |
— | ||
|
16131
|
16131
16131-68010 Rotor, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
16131-68010 |
US $12.81 |
||
|
16131A
|
16131A
90369-35016 Bearing, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
90369-35016 |
US $43.68 |
||
| replacement | |||||
|
16131A
|
16131A
90029-36842 Bearing, Water Pump[10.1986 - 01.1990] 12HT,2H..HB3# |
90029-36842 |
US $55.47 |
||
|
16141
|
16141
16141-68010 Wire, Water Pump Bearing Retaining[10.1986 - 01.1990] 12HT,2H..HB3# |
16141-68010 |
US $2.48 |
||
|
16171
|
16171
16171-41170 Seat, Water Pump Pulley[10.1986 - 01.1990] 12HT,2H..HB3# |
16171-41170 |
US $14.85 |
||
|
16193
|
16193
16193-47020
Bolt, Stud(For Water Pump Cover)
[10.1986 - 01.1990] 12HT,2H..HB3# |
16193-47020 |
— | ||
|
16210
|
16210
16210-68040 Coupling Assy, Fluid[10.1986 - 01.1990] 12HT,2H..HB3# |
16210-68040 |
US $513.97 |
||
| replacement | |||||
|
16210
|
16210
16210-17010 Coupling Assy, Fluid[10.1986 - 01.1990] 12HT,2H..HB3# |
16210-17010 |
from US $304.30 |
||
|
16241
|
16241
90116-08112 Bolt, Stud(For Water Pump Coupling)[10.1986 - 01.1990] 12HT,2H..HB3# |
90116-08112 |
from US $0.86 |
||
|
16271
|
16271
16271-68010
Gasket, Water Pump
[10.1986 - 01.1990] 12HT,2H..HB3# |
16271-68010 |
— | ||
| replacement | |||||
|
16271
|
16271
16271-68020 Gasket, Water PumpWATER PUMP [10.1986 - 01.1990] 12HT,2H..HB3# |
16271-68020 |
US $16 |
||
|
16371
|
16371
16371-68010
Pulley, Fan
[10.1986 - 01.1990] 2H..HB30..WOC |
16371-68010 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.98 |
||
|
9161161065
|
9161161065
91611-61065
Bolt(For Transaxle & Engine Setting)
|
91611-61065 |
— | ||
| replacement | |||||
|
9161161065
|
9161161065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
