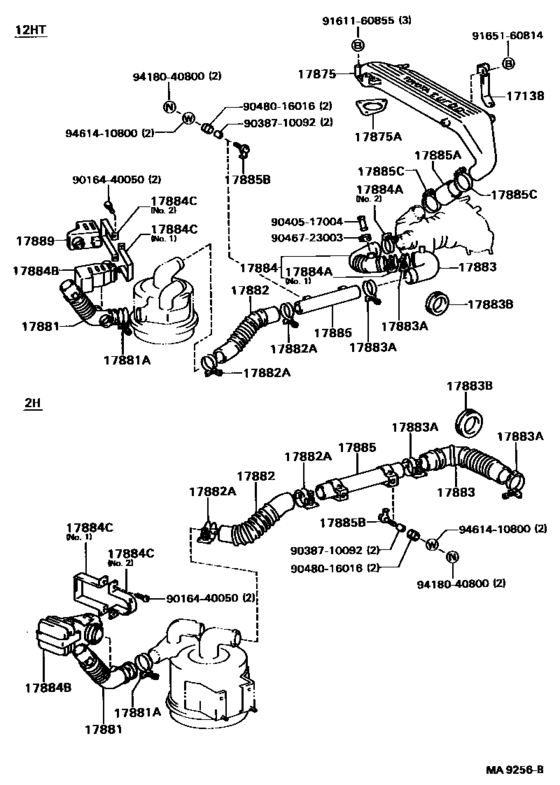

Air Cleaner ([10.1986 - 01.1990] (8610-9001)12HT,2H) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- HB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2H
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17881
|
17881
17781-90B02 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1986 - 01.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
17781-90B02 |
US $56.64 |
||
| replacement | |||||
|
17881
|
17881
17781-90B03 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1986 - 01.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
17781-90B03 |
US $55.76 |
||
|
17881
|
17881
59131-90B00 Hose, Air Cleaner, No.1[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59131-90B00 |
US $55.18 |
||
|
17881
|
17881
59131-90B01 Hose, Air Cleaner, No.1[10.1986 - 08.1988] 3F..FB30 OIL BATH; 2H..HB30 OIL BATH |
59131-90B01 |
US $55.76 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[01.1987 - 01.1993] 3F..FB30; 2H..HB30; 22R..RB20; 3B..BB21 |
96111-10750 |
from US $3.04 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[10.1986 - 04.1990] 3F..FB30 SNORKEL TYPE; 2H..HB30..GEN SNORKEL TYPE |
96111-10830 |
from US $2.88 |
||
|
17882
|
17882
59132-90B03 Hose, Air Cleaner, No.2[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59132-90B03 |
US $206.75 |
||
|
17882A
|
17882A
96111-10780 Clamp, Hose(For Air Connector)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30 |
96111-10780 |
from US $3.76 |
||
|
17883
|
17883
59133-90B02 Hose, Air Cleaner, No.3[10.1986 - 01.1993] 3F..FB30; 2H..HB30 |
59133-90B02 |
US $292.66 |
||
|
17883A
|
17883A
96111-10780 Clamp, Hose(For Air Connector)[02.1983 - 01.1993] 3F..FB30; 2H..HB30; 22R..RB20 |
96111-10780 |
from US $3.76 |
||
|
17883B
|
17883B
90480-99006 Grommet, Air Cleaner Hose[10.1985 - 01.1993] 13B,3B..BB20,21,22,30; 3F..FB30; 2H..HB30; 22R..RB20; 3B..BB20,21..22S,25S,26S SNORKEL TYPE,NO.1; 22R..RB20..GEN,ME SNORKEL TYPE,NO.1 |
90480-99006 |
US $30.87 |
||
|
17884B
|
17884B
59137-90B00 Box, Air Cleaner, No.1[10.1985 - 08.1988] 13B..BB22; 3F..FB30; 12HT,2H..HB3#; 3B..BB20..22S,26S;3B..BB21..RHD..(22S,26S);3B..BB21..LHD..(25S,26S) OIL BATH |
59137-90B00 |
US $24.75 |
||
|
17884C
|
17884C
59135-90B00 Band, Air Cleaner Box[10.1985 - 08.1988] 3F..FB30 NO.2; 2H..HB30 NO.2; 13B..BB22 NO.2; 3B..BB20,21..22S,25S,26S OIL BATH,NO.2 |
59135-90B00 |
US $11.07 |
||
|
17884C
|
17884C
59136-90B00 Band, Air Cleaner Box[10.1985 - 08.1988] 3F..FB30 NO.1; 2H..HB30 NO.1; 13B..BB22 NO.1; 3B..BB20,21..22S,25S,26S OIL BATH,NO.1 |
59136-90B00 |
US $15.58 |
||
|
17885
|
17885
59101-90B00 Pipe, Air Cleaner[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 3F..FB30; 2H..HB30; 22R..RB20 |
59101-90B00 |
US $149.97 |
||
|
17885B
|
17885B
59117-90B01 Plate, Pipe Support[10.1985 - 01.1993] 3F..FB30; 13B,14B,3B..BB2#,3#; 22R..RB20; 12HT,1H#,2H..HB3#,HDB30,HZB30 |
59117-90B01 |
US $18.05 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.88 |
||
|
9038710092
|
9038710092
90387-10092 New Genuine Part |
90387-10092 |
US $2.48 |
||
|
9040517004
|
9040517004
90405-17004 New Genuine Part |
90405-17004 |
US $3.79 |
||
|
9046723003
|
9046723003
90467-23003
Clip(For Ventilation Hose)
|
90467-23003 |
— | ||
| replacement | |||||
|
9046723003
|
9046723003
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.44 |
||
|
9048016016
|
9048016016
90480-16016 New Genuine Part |
90480-16016 |
US $1.46 |
||
|
9161160855
|
9161160855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.60 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9461410800
|
9461410800
94614-10800
Spacer (For Control Select Lever Support)
|
94614-10800 |
— | ||
| replacement | |||||
|
9461410800
|
9461410800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
