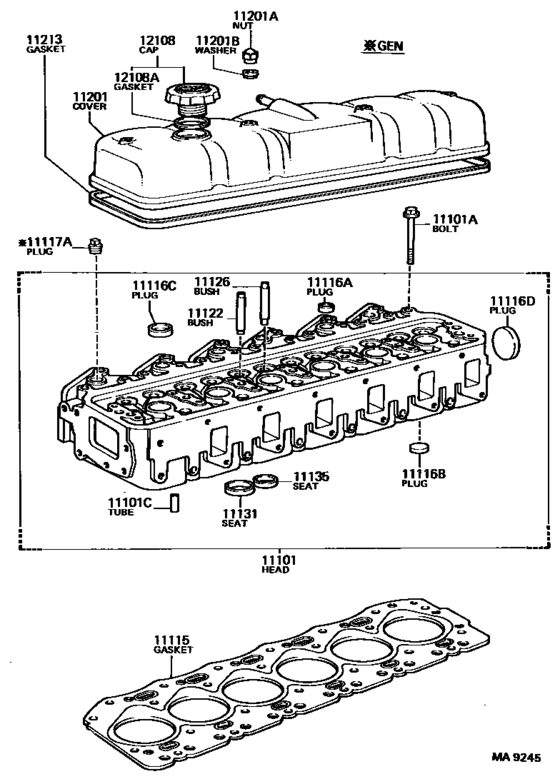

Cylinder Head ([10.1986 - 01.1990] (8610-9001)2H) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- HB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 2H
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-68011
Head Sub-Assy, Cylinder
[10.1986 - 08.1988] 2H..HB30 |
11101-68011 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-68012
Head Sub-Assy, Cylinder
[10.1986 - 08.1988] 2H..HB30 |
11101-68012 |
— | ||
|
11101
|
11101
87209-90B35
Pipe, Heater Water Outlet, B
[10.1986 - 08.1988] 2H..HB30 |
87209-90B35 |
— | ||
|
11101
|
11101
87245-90A19
Hose, Heater Water, Outlet E
[10.1986 - 08.1988] 2H..HB30 |
87245-90A19 |
— | ||
|
11101
|
11101
87248-90A31
Pipe, Heater Water Outlet, A
[10.1986 - 08.1988] 2H..HB30 |
87248-90A31 |
— | ||
|
11101
|
11101
87248-90K18
Pipe, Heater Water Outlet, A
[10.1986 - 08.1988] 2H..HB30 |
87248-90K18 |
— | ||
|
11101
|
11101
90467-21010 Clip(For Ventilation Hose No.2)[10.1986 - 08.1988] 2H..HB30 |
90467-21010 |
from US $5.85 |
||
|
11101
|
11101
11101-68012
Head Sub-Assy, Cylinder
[08.1988 - 01.1990] 2H..HB30 |
11101-68012 |
— | ||
|
11101A
|
11101A
90910-02070 Bolt(For Cylinder Head Set)[10.1986 - 01.1990] 12HT,2H..HB3# *12-1.25PX119-25 |
90910-02070 |
from US $9.23 |
||
|
11101C
|
11101C
90440-15141 Tube(For Cylinder Head)[10.1986 - 01.1990] 12HT,2H..HB3# |
90440-15141 |
US $8.91 |
||
|
11115
|
11115
11115-68020 Gasket, Cylinder Head[10.1986 - 01.1990] 2H..HB30 |
11115-68020 |
US $164.53 |
||
| replacement | |||||
|
11115
|
11115
11115-68040 Gasket, Cylinder HeadCYLINDER HEAD [10.1986 - 01.1990] 2H..HB30 |
11115-68040 |
from US $69.13 |
||
|
11116A
|
11116A
96411-42000 Plug, Tight, No.1[10.1986 - 01.1990] 2H..HB30 OD=20 |
96411-42000 |
from US $2.65 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[09.1985 - 08.1988] 3F..FB30 OD=25; 12HT,2H..HB3# OD=25; 13B,3B..BB2#,30 OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
96411-43000 Plug, Tight, No.1[10.1986 - 01.1990] 12HT,2H..HB3# OD=30 |
96411-43000 |
from US $3.84 |
||
|
11116D
|
11116D
96411-45000 Plug, Tight, No.1(For Cam Housing)[10.1986 - 01.1990] 12HT,2H..HB3# OD=50 |
96411-45000 |
from US $3.86 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[10.1986 - 01.1990] 2H..HB30..GEN |
90345-54005 |
from US $3.88 |
||
|
11122
|
11122
11122-68010 Bush, Intake Valve Guide[10.1986 - 01.1990] 12HT,2H..HB3# STD |
11122-68010 |
US $13.76 |
||
|
11126
|
11126
11122-68010 Bush, Intake Valve Guide[10.1986 - 01.1993] 12HT,2H..HB3# STD |
11122-68010 |
US $13.76 |
||
|
11131
|
11131
11131-68010 Seat, Intake Valve[10.1986 - 01.1990] 2H..HB30 STD |
11131-68010 |
US $29.99 |
||
|
11135
|
11135
11135-68010 Seat, Exhaust Valve[10.1986 - 01.1990] 12HT,2H..HB3# STD |
11135-68010 |
US $24.32 |
||
|
11201
|
11201
11201-68011
Cover Sub-Assy, Cylinder Head
[10.1986 - 01.1990] 2H..HB30 |
11201-68011 |
— | ||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[10.1986 - 01.1993] 3F..FB30; 12HT,2H..HB3# |
90176-08014 |
from US $2.65 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[10.1986 - 01.1993] 3F..FB30; 12HT,2H..HB3# |
90210-13001 |
from US $4 |
||
|
11213
|
11213
11213-68010 Gasket, Cylinder Head Cover[10.1986 - 01.1990] 2H..HB30 |
11213-68010 |
US $40.13 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
90430-37140 |
from US $1.25 |
||
