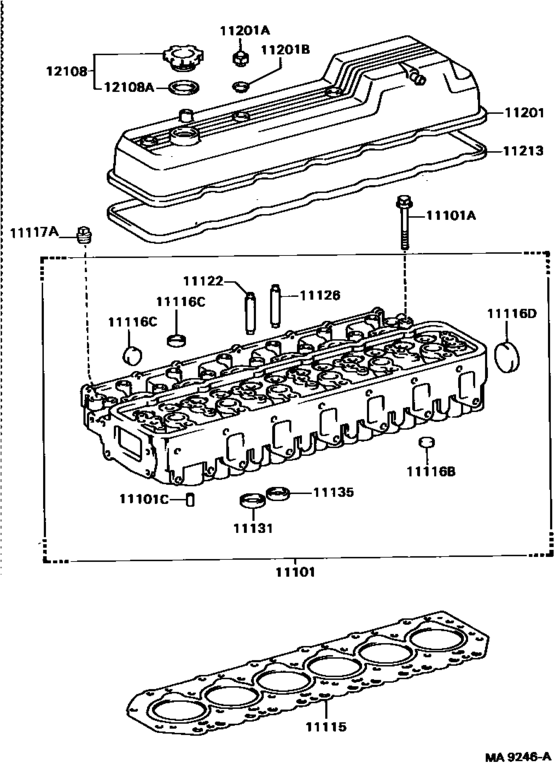

Cylinder Head ([10.1986 - 01.1990] (8610-9001)12HT) Diagram Toyota COASTER
- Year
- 1986 - 1990
- Sales region
- Europe
- Frame
- HB31
- grade
- STD
- Roof
- SRF
- ENGINE
- 12HT
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 10.1986
- To
- 01.1990
- Gear Shift Type
- 5F
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-68020
Head Sub-Assy, Cylinder
[10.1986 - 01.1990] 12HT..HB31 |
11101-68020 |
— | ||
|
11101A
|
11101A
90910-02070 Bolt(For Cylinder Head Set)[10.1986 - 01.1990] 12HT,2H..HB3# *12-1.25PX119-25 |
90910-02070 |
from US $9.23 |
||
|
11101C
|
11101C
90440-15141 Tube(For Cylinder Head)[10.1986 - 01.1990] 12HT,2H..HB3# |
90440-15141 |
US $8.91 |
||
|
11115
|
11115
11115-68030
Gasket, Cylinder Head
[10.1986 - 01.1990] 12HT..HB31 |
11115-68030 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-68050 Gasket, Cylinder Head[10.1986 - 01.1990] 12HT..HB31 |
11115-68050 |
US $141.52 |
||
|
11116B
|
11116B
96411-42500 Plug, Tight, No.1[09.1985 - 08.1988] 3F..FB30 OD=25; 12HT,2H..HB3# OD=25; 13B,3B..BB2#,30 OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116C
|
11116C
96411-43000 Plug, Tight, No.1[10.1986 - 01.1990] 12HT,2H..HB3# OD=30 |
96411-43000 |
from US $3.84 |
||
|
11116D
|
11116D
96411-45000 Plug, Tight, No.1(For Cam Housing)[10.1986 - 01.1990] 12HT,2H..HB3# OD=50 |
96411-45000 |
from US $3.86 |
||
|
11117A
|
11117A
90345-54005 Plug, W/head Taper Screw, No.1[10.1986 - 01.1990] 12HT..HB31 |
90345-54005 |
US $4.32 |
||
|
11122
|
11122
11122-68010 Bush, Intake Valve Guide[10.1986 - 01.1990] 12HT,2H..HB3# STD |
11122-68010 |
US $13.76 |
||
|
11126
|
11126
11122-68010 Bush, Intake Valve Guide[10.1986 - 01.1993] 12HT,2H..HB3# STD |
11122-68010 |
US $13.76 |
||
|
11131
|
11131
11131-68020
Seat, Intake Valve
[10.1986 - 01.1990] 12HT..HB31 STD |
11131-68020 |
— | ||
|
11135
|
11135
11135-68010 Seat, Exhaust Valve[10.1986 - 01.1990] 12HT,2H..HB3# STD |
11135-68010 |
US $24.32 |
||
|
11201
|
11201
11201-68020 Cover Sub-Assy, Cylinder Head[10.1986 - 01.1990] 12HT..HB31 |
11201-68020 |
US $227.14 |
||
|
11201A
|
11201A
90176-08014 Nut, Cap(For Cylinder Head Cover)[10.1986 - 01.1993] 3F..FB30; 12HT,2H..HB3# |
90176-08014 |
from US $4.16 |
||
|
11201B
|
11201B
90210-13001 Washer, Seal(For Cylinder Head Cover)[10.1986 - 01.1993] 3F..FB30; 12HT,2H..HB3# |
90210-13001 |
from US $4 |
||
|
11213
|
11213
11213-68020 Gasket, Cylinder Head Cover[10.1986 - 01.1990] 12HT..HB31 |
11213-68020 |
US $38 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1985 - 03.1990] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[05.1982 - 01.1993] 13B,14B,3B..BB2#,3#; 12HT,2H..HB3#; 22R..RB20 |
90430-37140 |
from US $1.25 |
||
