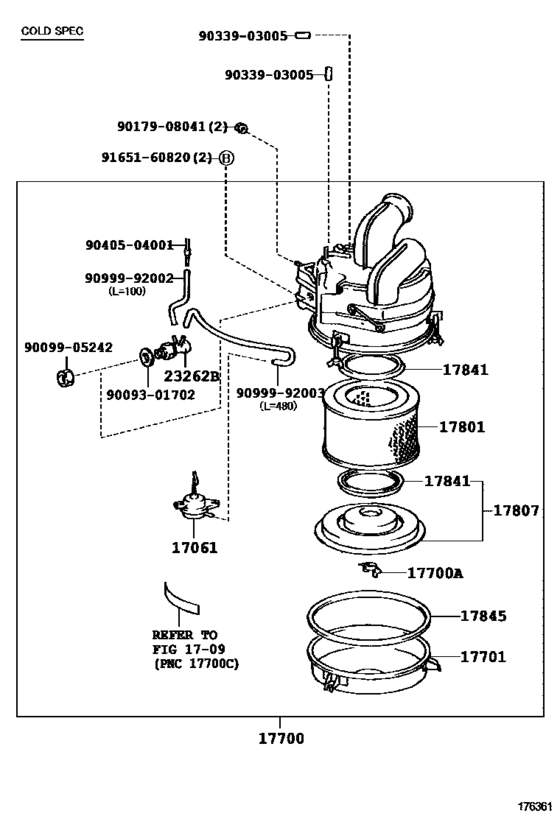

Air Cleaner ([08.1988 - 01.1990] (8808-9001)12HT) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- HB32
- grade
- EXS
- Roof
- HRF
- ENGINE
- 12HT
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-68020 Diaphragm Sub-Assy[08.1988 - 01.1990] 12HT..HB31,32 COLD SPEC |
17061-68020 |
US $55.62 |
||
|
17700
|
17700
17700-68190 Cleaner Assy, Air[10.1985 - 01.1990] 12HT..HB31,32 |
17700-68190 |
US $428.06 |
||
|
17700
|
17700
17700-68201 Cleaner Assy, Air[08.1988 - 01.1990] 12HT..HB31,32 COLD SPEC |
17700-68201 |
US $631.90 |
||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1984 - 01.1993] 22R..RB2#; 14B,3B..BB2#,3#; 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
90175-08008 |
from US $2.81 |
||
|
17701
|
17701
17701-68101
Case Sub-Assy, Air Cleaner
[07.1983 - 01.1990] 12HT,2H..HB3# |
17701-68101 |
— | ||
|
17801
|
17801
17801-68030 Element Sub-Assy, Air Cleaner Filter[10.1985 - 01.1993] 12HT,1HDT..HB31,32,HDB20,3# |
17801-68030 |
US $75.48 |
||
|
17807
|
17807
17807-68010
Plate Sub-Assy, Air Cleaner Filter Set
[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17807-68010 |
— | ||
|
17841
|
17841
17841-68010 Gasket, Filter Element[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17841-68010 |
US $2.80 |
||
|
17845
|
17845
17845-68020
Gasket, Air Cleaner Cap
[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17845-68020 |
— | ||
| replacement | |||||
|
17845
|
17845
17845-17010 Gasket, Air Cleaner Cap[05.1982 - 01.1993] 12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
17845-17010 |
US $70.28 |
||
|
23262B
|
23262B
25820-58010 Valve, Bimetal Vacuum Switching, No.1[08.1988 - 01.1990] 12HT,2H..HB3# COLD SPEC |
25820-58010 |
US $74.26 |
||
|
9009301702
|
9009301702
90093-01702
New Genuine Part
|
90093-01702 |
— | ||
|
9009905242
|
9009905242
90099-05242
New Genuine Part
|
90099-05242 |
— | ||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9040504001
|
9040504001
90405-04001 Union, Hose |
90405-04001 |
US $3.20 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.05 |
||
