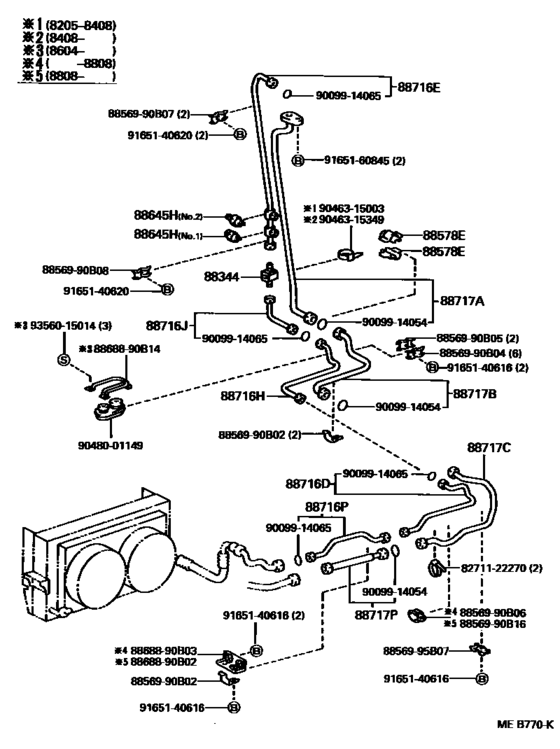

Heating & Air Conditioning - Cooler Piping ([05.1982 - 01.1990] (8205-9001)HB3#) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- HB32
- grade
- EXS
- Roof
- HRF
- ENGINE
- 12HT
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88344
|
88344
88344-90B00
Glass Sub-Assy, Sight
[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88344-90B00 |
— | ||
|
88578E
|
88578E
88578-90B01
Packing, Cooler Pipe, No.1
[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88578-90B01 |
— | ||
|
88645H
|
88645H
88645-30250
Switch, Pressure
[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC NO.2 |
88645-30250 |
— | ||
|
88645H
|
88645H
88645-90B00
Switch, Pressure No.1
[09.1984 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB2#..WC NO.1 |
88645-90B00 |
— | ||
|
88716D
|
88716D
88716-90B11 Pipe, Cooler Refrigerant Liquid, D[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC |
88716-90B11 |
US $136.86 |
||
|
88716E
|
88716E
88716-90B09 Pipe, Cooler Refrigerant Liquid, E[05.1982 - 01.1993] BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC |
88716-90B09 |
US $138.32 |
||
|
88716H
|
88716H
88716-90B10 Pipe, Cooler Refrigerant Liquid, H[03.1987 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC |
88716-90B10 |
US $154.34 |
||
|
88716J
|
88716J
88716-90B08 Pipe, Cooler Refrigerant Liquid, J[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88716-90B08 |
US $32.47 |
||
|
88717A
|
88717A
88717-90B09 Pipe, Cooler Refrigerant Suction, A[05.1982 - 01.1993] BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC |
88717-90B09 |
US $358.18 |
||
|
88717B
|
88717B
88717-90B04 Pipe, Cooler Refrigerant Suction, B[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88717-90B04 |
US $317.41 |
||
|
88717C
|
88717C
88717-90B22 Pipe, Cooler Refrigerant Suction, C[08.1988 - 01.1993] BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC |
88717-90B22 |
US $346.53 |
||
|
88717P
|
88717P
88717-90B05 Pipe, Cooler Refrigerant Suction, P[05.1982 - 01.1993] BB30,31,HB3#,HDB3#,HZB3#..WC |
88717-90B05 |
US $182 |
||
|
8856990B02
|
8856990B02
88569-90B02
Clamp (for Cooler Relay)
|
88569-90B02 |
— | ||
|
8856990B04
|
8856990B04
88569-90B04
Clamp (for Cooler Relay)
|
88569-90B04 |
— | ||
|
8856990B06
|
8856990B06
88569-90B06
Clamp (for Cooler Relay)
|
88569-90B06 |
— | ||
|
8856990B07
|
8856990B07
88569-90B07
Clamp (for Cooler Relay)
|
88569-90B07 |
— | ||
|
8856990B08
|
8856990B08
88569-90B08
Clamp (for Cooler Relay)
|
88569-90B08 |
— | ||
|
8856990B16
|
8856990B16
88569-90B16
Clamp (for Cooler Relay)
|
88569-90B16 |
— | ||
|
8856995B07
|
8856995B07
88569-95B07
Clamp (for Cooler Relay)
|
88569-95B07 |
— | ||
|
8866990B05
|
8866990B05
88669-90B05
Hose, Cooler Air
|
88669-90B05 |
— | ||
|
8868890B02
|
8868890B02
88688-90B02
Bracket, Cooler Diaphragm
|
88688-90B02 |
— | ||
|
8868890B03
|
8868890B03
88688-90B03
Bracket, Heater Water Hose
|
88688-90B03 |
— | ||
|
8868890B14
|
8868890B14
88688-90B14
Bracket, Cooler Diaphragm
|
88688-90B14 |
— | ||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
9009914054
|
9009914054
90099-14054
RING
|
90099-14054 |
— | ||
|
9009914065
|
9009914065
90099-14065
RING
|
90099-14065 |
— | ||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9046315349
|
9046315349
90463-15349
New Genuine Part
|
90463-15349 |
— | ||
|
9048001149
|
9048001149
90480-01149
New Genuine Part
|
90480-01149 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160845
|
9165160845
91651-60845
Bolt(For Rocker Support Set)
|
91651-60845 |
— | ||
| replacement | |||||
|
9165160845
|
9165160845
91651-B0845 Bolt, Flange (For Idler) |
91651-B0845 |
US $1.60 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
