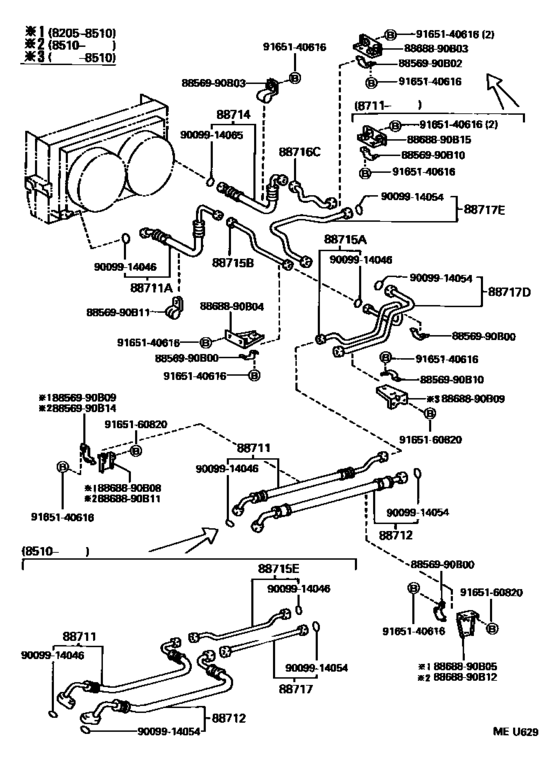

Heating & Air Conditioning - Cooler Piping ([05.1982 - 01.1990] (8205-9001)HB3#) Diagram Toyota COASTER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- HB32
- grade
- EXS
- Roof
- HRF
- ENGINE
- 12HT
- COOLER
- WC
- Model
- COASTER
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88711
|
88711
88711-90B08 Hose, Cooler Refrigerant Discharge, No.1[10.1985 - 01.1990] HB31,32 |
88711-90B08 |
US $198.02 |
||
|
88711A
|
88711A
88711-90B03 Hose, Cooler Refrigerant Discharge, No.2[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88711-90B03 |
US $104.83 |
||
|
88712
|
88712
88712-90B08 Hose, Cooler Refrigerant Suction, No.1[10.1985 - 01.1990] HB3#..WC |
88712-90B08 |
US $279.55 |
||
|
88714
|
88714
88721-90B00 Hose, Cooler Refrigerant Liquid, No.1[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88721-90B00 |
US $141.23 |
||
|
88715A
|
88715A
88715-90B01 Pipe, Cooler Refrigerant Discharge, A[05.1982 - 01.1990] HB3#..WC |
88715-90B01 |
US $81.54 |
||
|
88715B
|
88715B
88715-90B02 Pipe, Cooler Refrigerant Discharge, B[05.1982 - 01.1990] HB3#..WC |
88715-90B02 |
US $107.74 |
||
|
88715E
|
88715E
88715-90B03 Pipe, Cooler Refrigerant Discharge, E[10.1985 - 01.1990] HB3#..WC |
88715-90B03 |
US $96.10 |
||
|
88716C
|
88716C
88716-90B03 Pipe, Cooler Refrigerant Liquid, C[05.1982 - 01.1993] BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC |
88716-90B03 |
US $38.29 |
||
|
88717
|
88717
88717-90B15 Pipe, Cooler Refrigerant Suction, No.1[10.1985 - 01.1993] HB3#..WC |
88717-90B15 |
US $177.63 |
||
|
88717D
|
88717D
88717-90B17 Pipe, Cooler Refrigerant Suction, D[10.1985 - 01.1993] HB3#..WC |
88717-90B17 |
US $164.53 |
||
|
88717E
|
88717E
88717-90B20 Pipe, Cooler Refrigerant Suction, E[08.1988 - 01.1990] HB3#..WC |
88717-90B20 |
US $339.25 |
||
|
8856990B00
|
8856990B00
88569-90B00
Clamp (for Cooler Relay)
|
88569-90B00 |
— | ||
|
8856990B02
|
8856990B02
88569-90B02
Clamp (for Cooler Relay)
|
88569-90B02 |
— | ||
|
8856990B03
|
8856990B03
88569-90B03
Clamp (for Cooler Relay)
|
88569-90B03 |
— | ||
|
8856990B09
|
8856990B09
88569-90B09
Clamp (for Cooler Relay)
|
88569-90B09 |
— | ||
|
8856990B10
|
8856990B10
88569-90B10
Clamp (for Cooler Relay)
|
88569-90B10 |
— | ||
|
8856990B11
|
8856990B11
88569-90B11
Clamp (for Cooler Relay)
|
88569-90B11 |
— | ||
|
8856990B14
|
8856990B14
88569-90B14
Clamp (for Cooler Relay)
|
88569-90B14 |
— | ||
|
8868890B03
|
8868890B03
88688-90B03
Bracket, Heater Water Hose
|
88688-90B03 |
— | ||
|
8868890B04
|
8868890B04
88688-90B04
Bracket, Cooler Diaphragm
|
88688-90B04 |
— | ||
|
8868890B05
|
8868890B05
88688-90B05
Bracket, Cooler Diaphragm
|
88688-90B05 |
— | ||
|
8868890B08
|
8868890B08
88688-90B08
Bracket, Cooler Diaphragm
|
88688-90B08 |
— | ||
|
8868890B09
|
8868890B09
88688-90B09
Bracket, Cooler Diaphragm
|
88688-90B09 |
— | ||
|
8868890B11
|
8868890B11
88688-90B11
Bracket, Cooler Diaphragm
|
88688-90B11 |
— | ||
|
8868890B12
|
8868890B12
88688-90B12
Bracket, Cooler Diaphragm
|
88688-90B12 |
— | ||
|
8868890B15
|
8868890B15
88688-90B15
Bracket, Cooler Diaphragm
|
88688-90B15 |
— | ||
|
9009914046
|
9009914046
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose) |
90099-14046 |
US $0.55 |
||
|
9009914054
|
9009914054
90099-14054
RING
|
90099-14054 |
— | ||
|
9009914065
|
9009914065
90099-14065
RING
|
90099-14065 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
