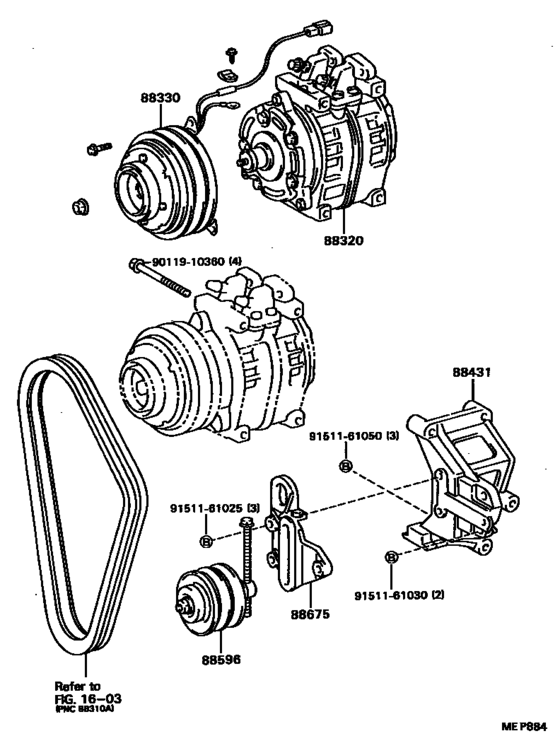

Heating & Air Conditioning - Compressor ([09.1991 - 01.1993] (9001-9301)HZB30..WC ; (9109-9301)EUR) Diagram Toyota COASTER
- Year
- 1991 - 1993
- Sales region
- Europe
- Frame
- HDB30
- grade
- STD
- Roof
- SRF
- ENGINE
- 1HDT
- DESTINATION
- EUR
- COOLER
- WOC
- Model
- COASTER
- From
- 09.1991
- To
- 01.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-36320
Compressor Assy, Cooler
[09.1991 - 01.1993] HDB30..EUR |
88320-36320 |
— | ||
|
88330
|
88330
88410-36320 Clutch Assy, Magnet[09.1991 - 01.1993] HDB30..EUR |
88410-36320 |
US $563.47 |
||
|
88431
|
88431
88431-36510
Bracket, Compressor Mounting, No.1
[08.1991 - 01.1993] HDB30..EUR |
88431-36510 |
— | ||
|
88596
|
88596
88440-36110 Pulley Assy, Idle, No.2[09.1991 - 01.1993] HDB30..EUR |
88440-36110 |
US $152.88 |
||
|
88675
|
88675
88444-36150
Bracket, Idle Pulley
[09.1991 - 01.1993] HDB30..EUR |
88444-36150 |
— | ||
|
9011910360
|
9011910360
90119-10360 BOLT |
90119-10360 |
US $3.20 |
||
|
9151161025
|
9151161025
91511-61025
New Genuine Part
|
91511-61025 |
— | ||
| replacement | |||||
|
9151161025
|
9151161025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151161050
|
9151161050
91511-61050
Bolt, Flange (For Idler)
|
91511-61050 |
— | ||
