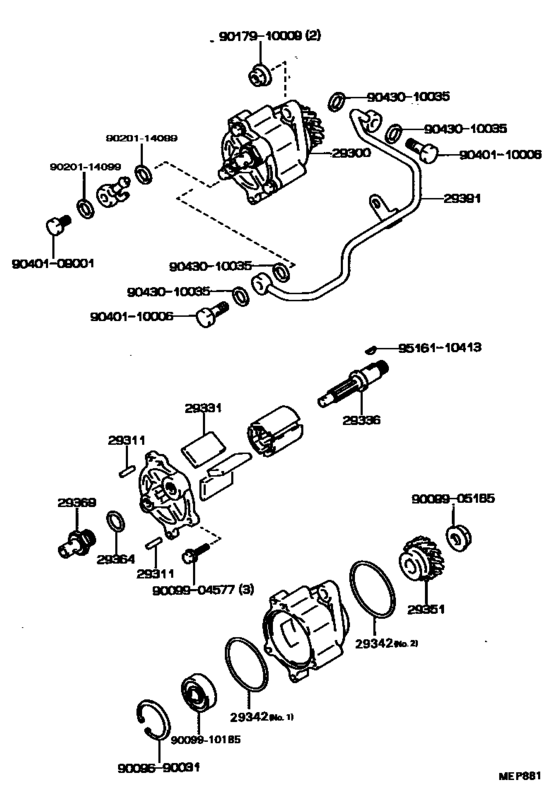

Vacuum Pump ([01.1990 - ] (9001- )1H#) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- HDB30
- grade
- STD
- Roof
- SRF
- ENGINE
- 1HDT
- DESTINATION
- GEN
- COOLER
- WOC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-17010 Pump Assy, Vacuum[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29300-17010 |
from US $471.80 |
||
|
29311
|
29311
29311-76010 Pin, Vacuum Pump Dowel, No.1[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29311-76010 |
US $1.92 |
||
|
29331
|
29331
29331-58050 Blade, Vacuum Pump, A[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29331-58050 |
US $8.39 |
||
|
29336
|
29336
29336-58050
Shaft, Vacuum Pump
[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29336-58050 |
— | ||
|
29342
|
29342
29342-17010 Packing, Vacuum Pump[01.1990 - 01.1993] 1H#..HDB30,HZB30 NO.2 |
29342-17010 |
from US $3.84 |
||
|
29342
|
29342
29342-58010 Packing, Vacuum Pump[01.1990 - 01.1993] 1H#..HDB30,HZB30 NO.1 |
29342-58010 |
from US $3.84 |
||
|
29351
|
29351
29351-17010 Gear, Vacuum Pump[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29351-17010 |
from US $23.41 |
||
|
29364
|
29364
29364-66010 Washer, Vacuum Pump[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29364-66010 |
US $2.88 |
||
|
29369
|
29369
29369-64030 Valve Sub-Assy, Check[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29369-64030 |
US $23.76 |
||
|
29391
|
29391
29391-17010 Tube, Vacuum Pump[01.1990 - 01.1993] 1H#..HDB30,HZB30 |
29391-17010 |
from US $10.88 |
||
|
9009690031
|
9009690031
90096-90031
RING HOLE SNAP
|
90096-90031 |
— | ||
|
9009904577
|
9009904577
90099-04577
New Genuine Part
|
90099-04577 |
— | ||
|
9009905185
|
9009905185
90099-05185 NUT |
90099-05185 |
US $1.67 |
||
|
9009910185
|
9009910185
90099-10185 Bearing, Ball |
90099-10185 |
from US $7.69 |
||
|
9017910009
|
9017910009
90179-10009 NUT |
90179-10009 |
US $1.46 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.56 |
||
|
9040109001
|
9040109001
90401-09001 Bolt, Union(For Vacuum Pump Union) |
90401-09001 |
US $2.48 |
||
| replacement | |||||
|
9040109001
|
9040109001
90401-09003 Bolt, Union(For Vacuum Pump Union) |
90401-09003 |
from US $2.56 |
||
|
9040110006
|
9040110006
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-10006 |
from US $2.96 |
||
|
9043010035
|
9043010035
90430-10035 Gasket(For Water Hole) |
90430-10035 |
from US $1.05 |
||
| replacement | |||||
|
9043010035
|
9043010035
9008943009
Gasket V P Oil Inlet
|
9008943009 |
— | ||
|
9516110413
|
9516110413
95161-10413
Key(For Alternator Pulley)
|
95161-10413 |
— | ||
