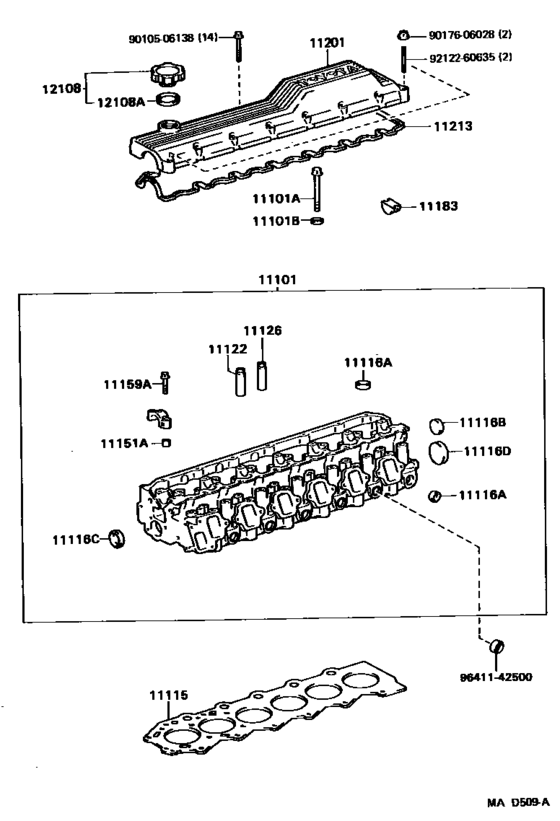

Cylinder Head ([01.1990 - ] (9001- )1HDT) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- HDB31
- grade
- SULNG
- Roof
- HRF
- ENGINE
- 1HDT
- COOLER
- WC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-17020 Head Sub-Assy, Cylinder[01.1990 - 01.1993] 1HDT..HDB20,3# |
11101-17020 |
US $3,134.48 |
||
|
11101A
|
11101A
90910-02096 Bolt(For Cylinder Head Set)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90910-02096 |
from US $3.84 |
||
|
11101B
|
11101B
90201-11027
Washer, Plate(For Cylinder Head Set)
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90201-11027 |
— | ||
| replacement | |||||
|
11101B
|
11101B
90201-11032 Washer, Plate(For Cylinder Head Set)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90201-11032 |
from US $1.11 |
||
|
11115
|
11115
11115-17010-01 Gasket, Cylinder Head[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 1,MARK 1 |
11115-17010-01 |
from US $113.76 |
||
|
11115
|
11115
11115-17010-03 Gasket, Cylinder Head[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 3,MARK 3 |
11115-17010-03 |
from US $116.12 |
||
|
11115
|
11115
11115-17010-05 Gasket, Cylinder Head[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# MARK 5,MARK 5 |
11115-17010-05 |
from US $115.11 |
||
|
11116A
|
11116A
96411-42500 Plug, Tight, No.1[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# OD=25 |
96411-42500 |
from US $2.95 |
||
|
11116B
|
11116B
96411-43500 Plug, Tight, No.1[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11116C
|
11116C
96411-44000 Plug, Tight, No.1[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# OD=40 |
96411-44000 |
from US $4.17 |
||
|
11116D
|
11116D
96411-44500 Plug, Tight, No.4[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# OD=45 |
96411-44500 |
from US $4.02 |
||
|
11122
|
11122
11122-54020
Bush, Intake Valve Guide
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
11122-54020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-17020 Bush, Intake Valve Guide[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
11122-17020 |
from US $8.54 |
||
|
11122
|
11122
11123-54020 Bush, Intake Valve Guide[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-54020 |
US $6.46 |
||
|
11126
|
11126
11122-54020
Bush, Intake Valve Guide
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
11122-54020 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-17020 Bush, Intake Valve Guide[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# ＳＴＤ,STD |
11122-17020 |
from US $8.54 |
||
|
11126
|
11126
11123-54020 Bush, Intake Valve Guide[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-54020 |
US $6.46 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.50 |
||
|
11159A
|
11159A
90119-08789 Bolt(For Head To Camshaft Bearing Cap)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90119-08789 |
US $1.44 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
11183-54011 |
from US $6.40 |
||
|
11201
|
11201
11201-17010
Cover Sub-Assy, Cylinder Head
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
11201-17010 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-17020 Cover Sub-Assy, Cylinder Head[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
11201-17020 |
from US $103.78 |
||
|
11213
|
11213
11213-17010 Gasket, Cylinder Head Cover[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
11213-17010 |
from US $15.66 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90430-37004 |
from US $1.35 |
||
|
9010506138
|
9010506138
90105-06138 BOLT WASHER BASED |
90105-06138 |
from US $0.88 |
||
|
9017606028
|
9017606028
90176-06028 Nut, Cap(For Cylinder Head Cover) |
90176-06028 |
from US $1.09 |
||
|
9212260635
|
9212260635
92122-60635 BOLT STUD |
92122-60635 |
US $1.28 |
||
|
9641142500
|
9641142500
96411-42500 Plug, Tight, No.1 |
96411-42500 |
from US $2.95 |
||
