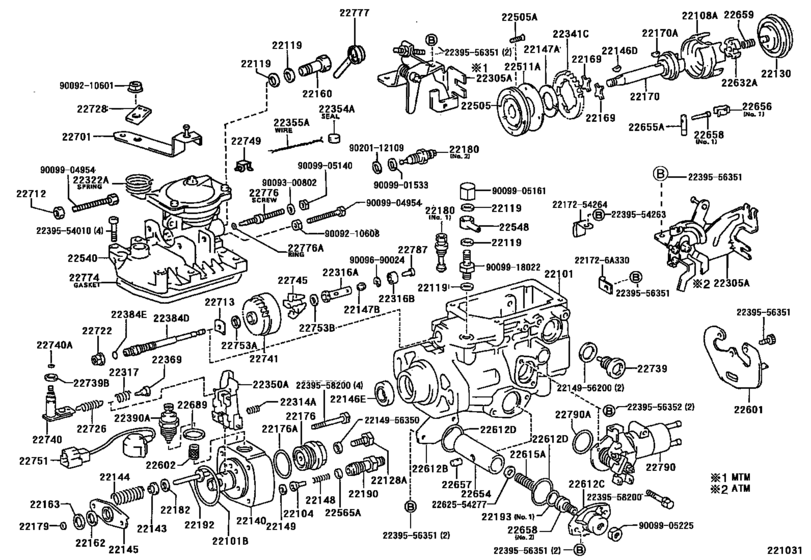

Injection Pump Body ([01.1990 - ] (9001- )1HDT) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- HDB31
- grade
- SULNG
- Roof
- HRF
- ENGINE
- 1HDT
- COOLER
- WC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-6A440
Housing Sub-Assy, Injection Pump
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22101-6A440 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-17140
Valve Sub-Assy, Injection Pump Delivery
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22104-17140 |
— | ||
|
22108A
|
22108A
22108-17140
Ring Sub-Assy, Roller
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22108-17140 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90201-12109 |
from US $1.38 |
||
|
22128A
|
22128A
22128-54580
Bolt, Distributive Head
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22128-54580 |
— | ||
|
22130
|
22130
22130-17140
Camplate Sub-Assy, Face
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22130-17140 |
— | ||
|
22140
|
22140
22140-17140 Head Sub-Assy, Distributive Pump[01.1990 - 01.1993] 1HDT..HDB20,3# |
22140-17140 |
US $368.59 |
||
|
22143
|
22143
22143-56350
Seat, Spring Upper
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22143-56350 |
— | ||
|
22144
|
22144
22144-17140
Spring, Pump Plunger
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22144-17140 |
— | ||
|
22145
|
22145
22145-56350
Seat, Spring, Lower
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22145-56350 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-13018 |
from US $6.88 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[05.1985 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22544-64740 |
US $4.39 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290 Ring, Governor Sleeve[04.1984 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22147-54290 |
US $3.71 |
||
|
22148
|
22148
22148-17140
Spring, Delivery Valve
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22148-17140 |
— | ||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-56350
Screw Sub-Assy, Overflow
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22160-56350 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22163-54010 |
US $3.84 |
||
|
22169
|
22169
22169-54180 Joint, Rubber[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22169-54180 |
US $17.06 |
||
|
22170
|
22170
22170-96300
Shaft Sub-Assy, Drive
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22170-96300 |
— | ||
| replacement | |||||
|
22170
|
22170
22170-56350
Shaft Sub-Assy, Drive
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22170-56350 |
— | ||
|
22170A
|
22170A
90099-13017
Key(For Drive Gear)
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-13017 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22193-54772 |
from US $2.97 |
||
|
22179
|
22179
22179-17140
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝１．９５,T=1.95 |
22179-17140 |
— | ||
|
22179
|
22179
22179-17141
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．０５,T=2.05 |
22179-17141 |
— | ||
|
22179
|
22179
22179-17142
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．１５,T=2.15 |
22179-17142 |
— | ||
|
22179
|
22179
22179-17143
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．２５,T=2.25 |
22179-17143 |
— | ||
|
22179
|
22179
22179-17144
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．３５,T=2.35 |
22179-17144 |
— | ||
|
22179
|
22179
22179-17145
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．４５,T=2.45 |
22179-17145 |
— | ||
|
22179
|
22179
22179-17146
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．５５,T=2.55 |
22179-17146 |
— | ||
|
22179
|
22179
22179-17147
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．６５,T=2.65 |
22179-17147 |
— | ||
|
22179
|
22179
22179-17148
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．７５,T=2.75 |
22179-17148 |
— | ||
|
22179
|
22179
22179-17149
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．８５,T=2.85 |
22179-17149 |
— | ||
|
22179
|
22179
22179-17150
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．９４,T=2.94 |
22179-17150 |
— | ||
|
22179
|
22179
22179-17151
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝２．９９,T=2.99 |
22179-17151 |
— | ||
|
22179
|
22179
22179-17152
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝３．０４,T=3.04 |
22179-17152 |
— | ||
|
22179
|
22179
22179-17153
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝３．０９,T=3.09 |
22179-17153 |
— | ||
|
22179
|
22179
22179-17154
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝３．１４,T=3.14 |
22179-17154 |
— | ||
|
22179
|
22179
22179-17155
Shim, Plunger Adjusting
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB30 厚さ＝３．１９,T=3.19 |
22179-17155 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．９,T=1.9; 14B,3B..BB2#,3# 厚さ＝１．９,T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．０,T=2.0; 14B,3B..BB2#,3# 厚さ＝２．０,T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．１,T=2.1; 14B,3B..BB2#,3# 厚さ＝２．１,T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．２,T=2.2; 14B,3B..BB2#,3# 厚さ＝２．２,T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．３,T=2.3; 14B,3B..BB2#,3# 厚さ＝２．３,T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．４,T=2.4; 14B,3B..BB2#,3# 厚さ＝２．４,T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．５,T=2.5; 14B,3B..BB2#,3# 厚さ＝２．５,T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．６,T=2.6; 14B,3B..BB2#,3# 厚さ＝２．６,T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．７,T=2.7; 14B,3B..BB2#,3# 厚さ＝２．７,T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．８,T=2.8; 14B,3B..BB2#,3# 厚さ＝２．８,T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．９,T=2.9; 14B,3B..BB2#,3# 厚さ＝２．９,T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-17140
Valve Sub-Assy, Regulator
[01.1990 - 01.1993] 1HDT..HDB20,3# NO.2 |
22180-17140 |
— | ||
|
22180
|
22180
22180-56351
Valve Sub-Assy, Regulator
[08.1988 - 01.1993] 1HDT..HDB20,3# NO.1; 14B..BB23,24 NO.1 |
22180-56351 |
— | ||
|
22182
|
22182
22182-54010 Plate, Tappet Adjusting Shim[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝０．５,T=0.5; 14B,3B..BB2#,3# 厚さ＝０．５,T=0.5 |
22182-54010 |
US $4.56 |
||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[02.1983 - 01.1993] 14B,3B..BB2#,3# 厚さ＝０．８,T=0.8; 1H#..HDB3#,HZB3# 厚さ＝０．８,T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[02.1983 - 01.1993] 14B,3B..BB2#,3# 厚さ＝１．０,T=1.0; 1H#..HDB3#,HZB3# 厚さ＝１．０,T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[02.1983 - 01.1993] 14B,3B..BB2#,3# 厚さ＝１．２,T=1.2; 1H#..HDB3#,HZB3# 厚さ＝１．２,T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．５,T=1.5; 14B,3B..BB2#,3# 厚さ＝１．５,T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．８,T=1.8; 14B,3B..BB2#,3# 厚さ＝１．８,T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝２．０,T=2.0; 14B,3B..BB2#,3# 厚さ＝２．０,T=2.0 |
22188-54010 |
US $4.45 |
||
|
22190
|
22190
22190-17140 Valve Sub-Assy, Snubber[01.1990 - 01.1993] 1HDT..HDB20,3# |
22190-17140 |
US $10.63 |
||
|
22192
|
22192
22192-56350
Guide Sub-Assy, Plunger Spring
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22192-56350 |
— | ||
|
22193
|
22193
22193-54561
Ring, O(For Lever Connecting Pin)
[01.1990 - 01.1993] 1HDT..HDB20,3# NO.2 |
22193-54561 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[01.1990 - 01.1993] 1HDT..HDB20,3# NO.1 |
22193-64750 |
from US $0.84 |
||
|
22305A
|
22305A
22305-17140
Idle-Up Sub-Assy
[01.1990 - 01.1993] 1HDT..HDB3#..5F |
22305-17140 |
— | ||
|
22314A
|
22314A
22314-54010 Spring, Lever Support[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22314-54010 |
US $5.99 |
||
|
22316A
|
22316A
22316-17140
Sleeve, Governor
[01.1990 - 01.1993] 1HDT..HDB3#..5F 内径＝０．６０,ID=0.60 |
22316-17140 |
— | ||
|
22316A
|
22316A
22316-17141
Sleeve, Governor
[01.1990 - 01.1993] 1HDT..HDB3#..5F 内径＝０．６５,ID=0.65 |
22316-17141 |
— | ||
|
22316A
|
22316A
22316-17142
Sleeve, Governor
[01.1990 - 01.1993] 1HDT..HDB3#..5F 内径＝０．７０,ID=0.70 |
22316-17142 |
— | ||
|
22316B
|
22316B
90099-10148 Bearing, Ball(For Governor Sleeve)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,31 |
90099-10148 |
US $14.43 |
||
|
22317
|
22317
22317-54730
Spring, Governor Domper
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22317-54730 |
— | ||
|
22322A
|
22322A
22322-54020
Spring, Return
[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F |
22322-54020 |
— | ||
|
22341C
|
22341C
22341-54010 Gear, Governor Drive[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22341-54010 |
US $22.68 |
||
|
22350A
|
22350A
22350-17270
Governor Assy, Torque Control
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22350-17270 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[01.1985 - 01.1993] 1H#..HDB20,3#,HZB3#; 3B..BB21,26,3# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[01.1985 - 01.1993] 1H#..HDB20,3#,HZB3#; 3B..BB21,26,3# |
22355-78030 |
US $1.31 |
||
|
22369
|
22369
22369-54010 Seat, Governor Spring[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22369-54010 |
US $10.10 |
||
|
22384D
|
22384D
22380-54020 Shaft, Governor[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22380-54020 |
from US $32.32 |
||
|
22384E
|
22384E
90099-14049
Ring, O(For Governor Main Shaft)
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-14049 |
— | ||
|
22390A
|
22390A
22390-56290
Solenoid Assy, Fuel Cut
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,31 |
22390-56290 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22390-56291 Solenoid Assy, Fuel Cut[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,31 |
22390-56291 |
from US $108.33 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723 Screw(For Fuel Feed Pump)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-00723 |
US $0.78 |
||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22511-58650 |
US $7.12 |
||
|
22540
|
22540
22540-17270
Compensator Sub-Assy, Boost
[01.1990 - 01.1993] 1HDT..HDB3#..5F |
22540-17270 |
— | ||
|
22548
|
22548
22548-17140
Nipple, Swivel
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22548-17140 |
— | ||
| replacement | |||||
|
22548
|
22548
22548-1C100
Nipple, Swivel
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22548-1C100 |
— | ||
|
22565A
|
22565A
22565-17140
Seat, Snubber Valve
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22565-17140 |
— | ||
|
22601
|
22601
22601-17140 Bracket Sub-Assy, Idle Up[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22601-17140 |
US $18.33 |
||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,31 |
22602-56350 |
from US $10.31 |
||
|
22612B
|
22612B
22612-56350
Cover, Timer
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17140
Cover, Timer
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22612-17140 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22193-17840 |
from US $2.93 |
||
|
22615A
|
22615A
22615-17140
Spring, Timer Outer
[01.1990 - 01.1993] 1HDT..HDB20,3# バネ定数ＯＲコイル巻数＝１．３０,K=1.30 |
22615-17140 |
— | ||
|
22615A
|
22615A
22615-17141
Spring, Timer Outer
[01.1990 - 01.1993] 1HDT..HDB20,3# バネ定数ＯＲコイル巻数＝１．４５,K=1.45 |
22615-17141 |
— | ||
|
22615A
|
22615A
22615-17142
Spring, Timer Outer
[01.1990 - 01.1993] 1HDT..HDB20,3# バネ定数ＯＲコイル巻数＝１．６０,K=1.60 |
22615-17142 |
— | ||
|
22615A
|
22615A
22615-17144
Spring, Timer Outer
[01.1990 - 01.1993] 1HDT..HDB20,3# バネ定数ＯＲコイル巻数＝１．９５,K=1.95 |
22615-17144 |
— | ||
|
22632A
|
22632A
22632-56350
Coupling, Injection Pump
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22632-56350 |
— | ||
|
22654
|
22654
22662-17140
Piston, Timer
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22662-17140 |
— | ||
|
22655A
|
22655A
22655-54010 Pin, Timer Slide[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22655-54010 |
US $35.96 |
||
|
22656
|
22656
22656-54010
Clip, Timer
[01.1990 - 01.1993] 1HDT..HDB20,3# NO.1 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840 Clip, Timer[01.1990 - 01.1993] 1HDT..HDB20,3# NO.1 |
22656-17840 |
US $0.92 |
||
|
22656
|
22656
22656-54490
Clip, Timer
[01.1990 - 01.1993] 1HDT..HDB20,3# NO.2 |
22656-54490 |
— | ||
|
22657
|
22657
22657-54010 Clip, Timer[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22657-54010 |
US $28.86 |
||
|
22658
|
22658
22658-54010
Stopper, Timer
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# NO.1; 14B,3B..BB2#,3# NO.1 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840 Stopper, Timer[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# NO.1; 14B,3B..BB2#,3# NO.1 |
22658-17840 |
US $1.01 |
||
|
22658
|
22658
22658-54450
Stopper, Timer
[08.1988 - 01.1993] 1HDT..HDB20,3# NO.2; 3B..BB21,26,31 NO.2 |
22658-54450 |
— | ||
|
22659
|
22659
22659-58650 Spring, Coupling[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22659-58650 |
US $1.60 |
||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B..BB23,24 |
22689-56350 |
US $0.70 |
||
|
22701
|
22701
22701-17010 Lever Sub-Assy, Adjusting[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F MARK"383" |
22701-17010 |
US $9.78 |
||
|
22701
|
22701
22701-17011 Lever Sub-Assy, Adjusting[01.1990 - 01.1993] 1H#..HDB3#,HZB3#..5F MARK"384" |
22701-17011 |
US $9.73 |
||
|
22701
|
22701
22701-56350 Lever Sub-Assy, Adjusting[08.1988 - 01.1993] 1H#..HDB3#,HZB3#..5F MARK"247"; 14B..BB23,24..5F MARK"247" |
22701-56350 |
from US $8.74 |
||
|
22712
|
22712
22775-77121 Nut, Rock[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22775-77121 |
US $3.26 |
||
|
22713
|
22713
22713-54010 Washer, Governor Gear Adjusting[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．０５,T=1.05; 14B,3B..BB2#,3# 厚さ＝１．０５,T=1.05 |
22713-54010 |
US $6.84 |
||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．２５,T=1.25; 14B,3B..BB2#,3# 厚さ＝１．２５,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．４５,T=1.45; 14B,3B..BB2#,3# 厚さ＝１．４５,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．６５,T=1.65; 14B,3B..BB2#,3# 厚さ＝１．６５,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010
Washer, Governor Gear Adjusting
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3# 厚さ＝１．８５,T=1.85; 14B,3B..BB2#,3# 厚さ＝１．８５,T=1.85 |
22717-54010 |
— | ||
|
22722
|
22722
22722-54470 Nut, Governor Shaft Rock[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22722-54470 |
US $11.10 |
||
|
22726
|
22726
22726-17140
Spring, Speed Control
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22726-17140 |
— | ||
|
22726
|
22726
22726-18010
Spring, Speed Control
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22726-18010 |
— | ||
|
22728
|
22728
22728-54010 Guide, Return Spring[08.1988 - 01.1993] 1H#..HDB3#,HZB3#..5F; 14B..BB23,24..5F |
22728-54010 |
US $2.71 |
||
|
22739
|
22739
22739-54020 Bolt, Governor Link Support[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22739-54020 |
US $12.11 |
||
|
22739B
|
22739B
22378-64010 Washer, Governor Thrust[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22378-64010 |
US $0.42 |
||
|
22740
|
22740
22740-58480
Shaft Sub-Assy, Governor Adjusting
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22740-58480 |
— | ||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[02.1983 - 11.1991] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[02.1983 - 11.1991] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22193-54770 |
US $2.45 |
||
|
22741
|
22741
22741-54020 Holder Sub-Assy, Flyweight[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22741-54020 |
US $79.46 |
||
|
22745
|
22745
22745-56350
Flyweight, Distributive Pump
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22745-56350 |
— | ||
|
22749
|
22749
22749-17250
Collar, Smoke Set Adjusting
[12.1990 - 01.1993] 1HDT..HDB3#..5F |
22749-17250 |
— | ||
|
22751
|
22751
22751-18010
Wire Sub-Assy, Fuel Cut Solenoid
[01.1990 - 01.1993] 1H#..HDB20,3#,HZB3# |
22751-18010 |
— | ||
|
22753A
|
22753A
22753-54010 Washer, Flyweight, No.1[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22753-54010 |
US $1.56 |
||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B..BB23,24 |
22753-54020 |
US $1.68 |
||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[02.1983 - 11.1991] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[02.1983 - 11.1991] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[08.1988 - 01.1993] 1HDT..HDB20,3#; 14B..BB23,24 |
22776-55030 |
— | ||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[02.1983 - 01.1993] 1H#..HDB20,3#,HZB3#; 14B,3B..BB2#,3# |
22193-54771 |
US $1.37 |
||
|
22777
|
22777
22777-54261
Cap, Rubber(For Bellows)
[01.1990 - 01.1993] 1HDT..HDB20,3# |
22777-54261 |
— | ||
|
22787
|
22787
22787-54027 Plug, Governor Sleeve[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝３．４,L=3.4; 14B..BB23,24 長さ＝３．４,L=3.4; 3B..BB21,26,31 長さ＝３．４,L=3.4 |
22787-54027 |
US $19.27 |
||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝３．６,L=3.6; 14B..BB23,24 長さ＝３．６,L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝３．８,L=3.8; 14B..BB23,24 長さ＝３．８,L=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝４．０,L=4.0; 14B..BB23,24 長さ＝４．０,L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝４．１,L=4.1; 14B..BB23,24 長さ＝４．１,L=4.1 |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝３．０,L=3.0; 14B..BB23,24 長さ＝３．０,L=3.0 |
22787-64641 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝３．２,L=3.2; 14B..BB23,24 長さ＝３．２,L=3.2 |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[08.1988 - 01.1993] 1H#..HDB20,3#,HZB3# 長さ＝４．２,L=4.2; 14B..BB23,24 長さ＝４．２,L=4.2 |
22787-64680 |
— | ||
|
22790
|
22790
22790-17141
Cover Sub-Assy, Timer
[01.1990 - 01.1993] 1HDT..HDB3#..5F |
22790-17141 |
— | ||
|
22790A
|
22790A
90099-14051
Ring, O, Distributor Housing
[01.1990 - 01.1993] 1HDT..HDB20,3#; 1HZ..HZB3# COLD SPEC |
90099-14051 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[01.1990 - 01.1993] 1HDT..HDB20,3#; 1HZ..HZB3# COLD SPEC |
22193-17840 |
from US $2.93 |
||
|
221726A330
|
221726A330
22172-6A330 Clip, Connector Support, Solenoid |
22172-6A330 |
US $5.40 |
||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
from US $0.90 |
||
|
2214956350
|
2214956350
22149-56350
Gasket, Delivery Valve
|
22149-56350 |
— | ||
|
2217254264
|
2217254264
22172-54264 Clip, Connector Support, Solenoid |
22172-54264 |
US $5.67 |
||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554263
|
2239554263
22395-54263 Bolt, Socket(for Injection Pump Governor Cover) |
22395-54263 |
US $1.48 |
||
|
2239556351
|
2239556351
22395-56351 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56351 |
US $1.48 |
||
|
2239556352
|
2239556352
22395-56352 Bolt, Socket(for Injection Pump Governor Cover) |
22395-56352 |
US $1.48 |
||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2262554277
|
2262554277
22625-54277
Washer, Timer Adjusting
|
22625-54277 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009690024
|
9009690024
90096-90024 Ring, O(For Stopper Lever) |
90096-90024 |
US $1.70 |
||
|
9009901533
|
9009901533
90099-01533
Washer, Air Bleeder Nipple
|
90099-01533 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225 NUT |
90099-05225 |
US $0.92 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.38 |
||
