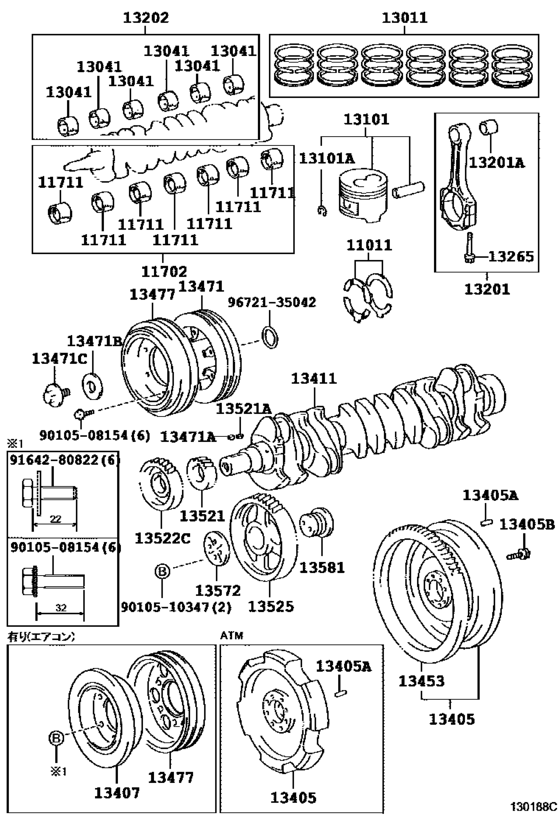

Crankshaft & Piston ([01.1993 - 07.1999] (9301-9907)1HD#,1HZ) Diagram Toyota COASTER
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- HDB51
- grade
- EX
- Roof
- HRF
- ENGINE
- 1HDFT
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 05.1997
- To
- 07.1999
- Gear Shift Type
- 6F
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- TD4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-17010 Washer Set, Crankshaft Thrust[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# ＳＴＤ |
11011-17010 |
from US $40.33 |
||
|
11702
|
11702
11704-17010
Bearing Set, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．２５ |
11704-17010 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-17011 Bearing Set, Crankshaft (US 0.25)[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．２５ |
11704-17011 |
from US $151.28 |
||
|
11702
|
11702
11704-17011 Bearing Set, Crankshaft (US 0.25)[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# Ｕ／Ｓ ０．２５ |
11704-17011 |
from US $151.28 |
||
|
11702
|
11702
11705-17010
Bearing Set, Crankshaft 0.5
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．５０ |
11705-17010 |
— | ||
| replacement | |||||
|
11702
|
11702
11705-17011 Bearing Set, Crankshaft (US 0.50)[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．５０ |
11705-17011 |
from US $164.33 |
||
|
11702
|
11702
11705-17011 Bearing Set, Crankshaft (US 0.50)[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# Ｕ／Ｓ ０．５０ |
11705-17011 |
from US $164.33 |
||
|
11711
|
11711
11701-17010-02
Bearing, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 2,修理書参照 |
11701-17010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-02 Bearing, Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 2,修理書参照 |
11701-17011-02 |
from US $18.64 |
||
|
11711
|
11711
11701-17010-03
Bearing, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 3,修理書参照 |
11701-17010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-03 Bearing, Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 3,修理書参照 |
11701-17011-03 |
from US $18.53 |
||
|
11711
|
11711
11701-17010-04
Bearing, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 4,修理書参照 |
11701-17010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-04 Bearing, Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 4,修理書参照 |
11701-17011-04 |
from US $18.53 |
||
|
11711
|
11711
11701-17010-05
Bearing, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 5,修理書参照 |
11701-17010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-05 Bearing, Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 5,修理書参照 |
11701-17011-05 |
from US $19.32 |
||
|
11711
|
11711
11701-17010-06
Bearing, Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 6,修理書参照 |
11701-17010-06 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-17011-06 Bearing, Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 6,修理書参照 |
11701-17011-06 |
from US $19.31 |
||
|
11711
|
11711
11701-17011-02 Bearing, Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# MARK 2,修理書参照 |
11701-17011-02 |
from US $18.64 |
||
|
11711
|
11711
11701-17011-03 Bearing, Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# MARK 3,修理書参照 |
11701-17011-03 |
from US $18.53 |
||
|
11711
|
11711
11701-17011-04 Bearing, Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# MARK 4,修理書参照 |
11701-17011-04 |
from US $18.53 |
||
|
11711
|
11711
11701-17011-05 Bearing, Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# MARK 5,修理書参照 |
11701-17011-05 |
from US $19.32 |
||
|
11711
|
11711
11701-17011-06 Bearing, Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# MARK 6,修理書参照 |
11701-17011-06 |
from US $19.31 |
||
|
13011
|
13011
13011-17030 Ring Set, Piston (STD)[01.1995 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# ＳＴＤ |
13011-17030 |
from US $272.16 |
||
|
13011
|
13011
13013-17030 Ring Set, Piston (OS 0.50)[01.1995 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# Ｏ／Ｓ ０．５０ |
13013-17030 |
from US $277.92 |
||
|
13041
|
13041
13041-17011-02 Bearing, Connecting Rod[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 2,修理書参照 |
13041-17011-02 |
from US $13.77 |
||
|
13041
|
13041
13041-17011-03 Bearing, Connecting Rod[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 3,修理書参照 |
13041-17011-03 |
from US $13.98 |
||
|
13041
|
13041
13041-17011-04 Bearing, Connecting Rod[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 4,修理書参照 |
13041-17011-04 |
from US $13.79 |
||
|
13041
|
13041
13041-17011-05 Bearing, Connecting Rod[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 5,修理書参照 |
13041-17011-05 |
from US $14.10 |
||
|
13041
|
13041
13041-17011-06 Bearing, Connecting Rod[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# MARK 6,修理書参照 |
13041-17011-06 |
from US $14.84 |
||
|
13101
|
13101
13101-17090-01 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 1,修理書参照 |
13101-17090-01 |
US $272.27 |
||
| replacement | |||||
|
13101
|
13101
13101-17091-01 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 1,修理書参照 |
13101-17091-01 |
US $309.25 |
||
|
13101
|
13101
13101-17090-02
Piston Sub-Assy, W/pin
[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 2,修理書参照 |
13101-17090-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-17091-02 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 2,修理書参照 |
13101-17091-02 |
from US $192.47 |
||
|
13101
|
13101
13101-17090-03 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 3,修理書参照 |
13101-17090-03 |
US $272.27 |
||
| replacement | |||||
|
13101
|
13101
13101-17091-03 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# ＳＴＤ,MARK 3,修理書参照 |
13101-17091-03 |
US $272.27 |
||
|
13101
|
13101
13101-17091-01 Piston Sub-Assy, W/pin[01.1998 - 07.1999] 1HDFT..HDB5# ＳＴＤ,MARK 1,修理書参照 |
13101-17091-01 |
US $309.25 |
||
|
13101
|
13101
13101-17091-02 Piston Sub-Assy, W/pin[01.1998 - 07.1999] 1HDFT..HDB5# ＳＴＤ,MARK 2,修理書参照 |
13101-17091-02 |
from US $192.47 |
||
|
13101
|
13101
13101-17091-03 Piston Sub-Assy, W/pin[01.1998 - 07.1999] 1HDFT..HDB5# ＳＴＤ,MARK 3,修理書参照 |
13101-17091-03 |
US $272.27 |
||
|
13101
|
13101
13103-17090 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# Ｏ／Ｓ ０．５０ |
13103-17090 |
US $326.14 |
||
| replacement | |||||
|
13101
|
13101
13103-17091 Piston Sub-Assy, W/pin[02.1997 - 01.1998] 1HDFT..HDB5# Ｏ／Ｓ ０．５０ |
13103-17091 |
US $340.20 |
||
|
13101
|
13101
13103-17091 Piston Sub-Assy, W/pin[01.1998 - 07.1999] 1HDFT..HDB5# Ｏ／Ｓ ０．５０ |
13103-17091 |
US $340.20 |
||
|
13101A
|
13101A
90521-36001 Ring, Hole Snap(For Piston Pin)[05.1995 - 07.1999] 1HDFT..HDB5# |
90521-36001 |
US $2.72 |
||
|
13201
|
13201
13201-17022 Rod Sub-Assy, Connecting[01.1995 - 07.1999] 1HD#..HDB5# |
13201-17022 |
from US $261.38 |
||
|
13201A
|
13201A
90999-73137 Bush(For Connecting Rod Small End)[01.1995 - 07.1999] 1HD#..HDB5# |
90999-73137 |
US $16 |
||
|
13202
|
13202
13204-17011 Bearing Set, Connecting Rod (US 0.25)[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．２５ |
13204-17011 |
from US $99.06 |
||
|
13202
|
13202
13205-17011 Bearing Set, Connecting Rod (US 0.50)[08.1994 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# Ｕ／Ｓ ０．５０ |
13205-17011 |
from US $98.51 |
||
|
13265
|
13265
13265-17010 Bolt, Connecting Rod[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
13265-17010 |
from US $4.43 |
||
|
13405
|
13405
13405-17020 Flywheel Sub-Assy[05.1995 - 07.1999] 1HDFT..HDB5#..MTM |
13405-17020 |
from US $665.48 |
||
|
13405A
|
13405A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[05.1995 - 07.1999] 1HDFT..HDB5#..MTM 長さ＝２２，外径＝１０ |
90250-10192 |
from US $1.05 |
||
|
13405B
|
13405B
90105-12169 Bolt, Flywheel Setting[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5#..MTM |
90105-12169 |
US $2.56 |
||
|
13411
|
13411
13411-17010
Crankshaft
[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# |
13411-17010 |
— | ||
| replacements | |||||
|
13411
|
13411
13411-17012 Crankshaft[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# |
13411-17012 |
from US $1,579.91 |
||
|
13411
|
13411
90311-95008 Seal, Engine Rear Oil[01.1993 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# |
90311-95008 |
from US $25.08 |
||
|
13411
|
13411
13411-17011
Crankshaft
[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# |
13411-17011 |
— | ||
| replacements | |||||
|
13411
|
13411
13411-17012 Crankshaft[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# |
13411-17012 |
from US $1,579.91 |
||
|
13411
|
13411
90311-95008 Seal, Engine Rear Oil[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# |
90311-95008 |
from US $25.08 |
||
|
13453
|
13453
13453-17010 Gear, Flywheel Ring[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5#..MTM |
13453-17010 |
US $101.34 |
||
|
13471
|
13471
13408-17020 Pulley, Crankshaft[05.1995 - 07.1999] 1HDFT..HDB5# |
13408-17020 |
from US $266.40 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
95161-30516 |
from US $1.17 |
||
|
13471B
|
13471B
90201-27001 Washer, Plate(For Crankshaft Pulley Set)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90201-27001 |
from US $6.88 |
||
|
13471C
|
13471C
90105-24001 Bolt(For Crankshaft Pulley Set)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90105-24001 |
from US $7.70 |
||
|
13477
|
13477
88451-36130 Pulley, Crankshaft, No.2[05.1995 - 07.1999] 1HDFT..HDB5# |
88451-36130 |
US $160.16 |
||
|
13521
|
13521
13521-17020
Gear Or Sprocket, Crankshaft Timing
[05.1995 - 07.1999] 1HDFT..HDB5# |
13521-17020 |
— | ||
|
13521A
|
13521A
95161-30516 Key(For Oil Pump Drive Spline)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
95161-30516 |
from US $1.17 |
||
|
13522C
|
13522C
13522-17010 Gear, Pump Drive Shaft[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
13522-17010 |
from US $34.94 |
||
|
13525
|
13525
13525-17020
Gear, Idle, No.1
[05.1995 - 07.1999] 1HDFT..HDB5# |
13525-17020 |
— | ||
|
13572
|
13572
13572-17020
Plate, Idle Gear Thrust
[01.1995 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# |
13572-17020 |
— | ||
| replacement | |||||
|
13572
|
13572
13572-17021 Plate, Idle Gear Thrust[01.1995 - 01.1998] 1HD#,1HZ..HDB5#,HZB4#,5# |
13572-17021 |
from US $8.62 |
||
|
13572
|
13572
13572-17021 Plate, Idle Gear Thrust[01.1998 - 07.1999] 1H#..HDB5#,HZB4#,5# |
13572-17021 |
from US $8.62 |
||
|
13581
|
13581
13581-17011
Shaft, Idle Gear, No.1
[03.1995 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
13581-17011 |
— | ||
| replacement | |||||
|
13581
|
13581
13581-17012 Shaft, Idle Gear, No.1[03.1995 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
13581-17012 |
from US $22.66 |
||
|
9010508154
|
9010508154
90105-08154 Bolt, No.1(For Alternator) |
90105-08154 |
US $1.44 |
||
|
9010510347
|
9010510347
90105-10347 BOLT WASHER BASED |
90105-10347 |
US $1.75 |
||
|
9164280822
|
9164280822
91642-80822 New Genuine Part |
91642-80822 |
US $1.89 |
||
|
9672135042
|
9672135042
96721-35042 RING |
96721-35042 |
from US $2.83 |
||
