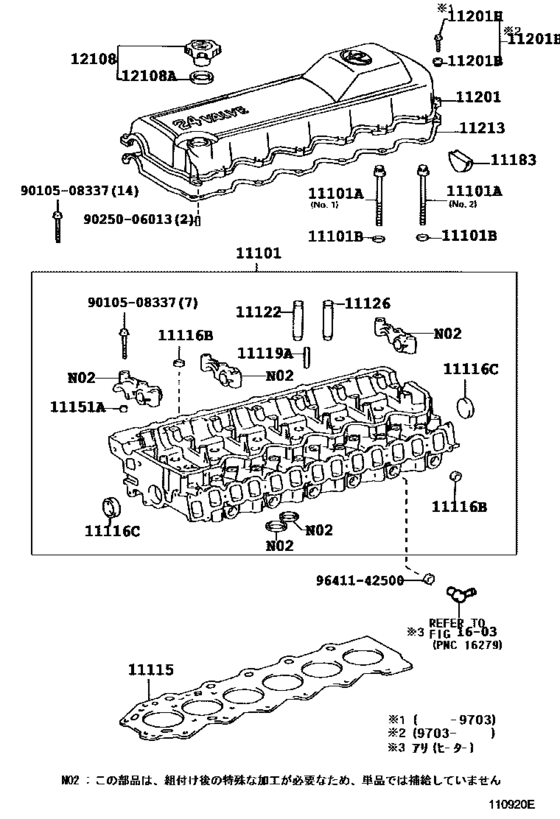

Cylinder Head ([05.1995 - 07.1999] (9505-9907)1HDFT) Diagram Toyota COASTER
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- HDB51
- grade
- EX
- Roof
- HRF
- ENGINE
- 1HDFT
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 05.1997
- To
- 07.1999
- Gear Shift Type
- 6F
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- TD4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-17041
Head Sub-Assy, Cylinder
[05.1996 - 01.1998] 1HDFT..HDB5# |
11101-17041 |
— | ||
|
11101
|
11101
11101-17042
Head Sub-Assy, Cylinder
[01.1998 - 07.1999] 1HDFT..HDB5# |
11101-17042 |
— | ||
| replacements | |||||
|
11101
|
11101
11101-17044 Head Sub-Assy, Cylinder[01.1998 - 07.1999] 1HDFT..HDB5# |
11101-17044 |
US $3,236.69 |
||
|
11101
|
11101
13711-17021 Valve, Intake[01.1998 - 07.1999] 1HDFT..HDB5# |
13711-17021 |
from US $22.56 |
||
|
11101A
|
11101A
90910-02096 Bolt(For Cylinder Head Set)[05.1995 - 07.1999] 1HDFT..HDB5# 長さ＝１３３．５ |
90910-02096 |
from US $3.84 |
||
|
11101A
|
11101A
90910-02119 Bolt(For Cylinder Head Set)[05.1995 - 07.1999] 1HDFT..HDB5# 長さ＝１２１．５ |
90910-02119 |
from US $6.56 |
||
|
11101B
|
11101B
90201-11032 Washer, Plate(For Cylinder Head Set)[01.1995 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90201-11032 |
from US $1.11 |
||
|
11115
|
11115
11115-17030-01
Gasket, Cylinder Head
[05.1995 - 01.1998] 1HDFT..HDB5# MARK 1,マーク １ |
11115-17030-01 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-17031-01 Gasket, Cylinder Head[05.1995 - 01.1998] 1HDFT..HDB5# MARK 1,マーク １ |
11115-17031-01 |
from US $123.65 |
||
|
11115
|
11115
11115-17030-03
Gasket, Cylinder Head
[05.1995 - 01.1998] 1HDFT..HDB5# MARK 3,マーク ３ |
11115-17030-03 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-17031-03 Gasket, Cylinder Head[05.1995 - 01.1998] 1HDFT..HDB5# MARK 3,マーク ３ |
11115-17031-03 |
from US $116.47 |
||
|
11115
|
11115
11115-17030-05
Gasket, Cylinder Head
[05.1995 - 01.1998] 1HDFT..HDB5# MARK 5,マーク ５ |
11115-17030-05 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-17031-05 Gasket, Cylinder Head[05.1995 - 01.1998] 1HDFT..HDB5# MARK 5,マーク ５ |
11115-17031-05 |
from US $116.57 |
||
|
11115
|
11115
11115-17031-01 Gasket, Cylinder Head[01.1998 - 07.1999] 1HDFT..HDB5# MARK 1,マーク １ |
11115-17031-01 |
from US $123.65 |
||
|
11115
|
11115
11115-17031-03 Gasket, Cylinder Head[01.1998 - 07.1999] 1HDFT..HDB5# MARK 3,マーク ３ |
11115-17031-03 |
from US $116.47 |
||
|
11115
|
11115
11115-17031-05 Gasket, Cylinder Head[01.1998 - 07.1999] 1HDFT..HDB5# MARK 5,マーク ５ |
11115-17031-05 |
from US $116.57 |
||
|
11116B
|
11116B
96411-62500 Plug, Tight, No.1[05.1995 - 07.1999] 1HDFT..HDB5# |
96411-62500 |
from US $3.20 |
||
|
11116C
|
11116C
96411-64000 Plug, Tight, No.2[06.1995 - 07.1999] 1HDFT..HDB5# |
96411-64000 |
from US $3.68 |
||
|
11119A
|
11119A
90250-09007 Pin, Straight[05.1995 - 07.1999] 1HDFT..HDB5# 長さ＝５３．５，外径＝９ |
90250-09007 |
US $3.84 |
||
|
11122
|
11122
11122-17010 Bush, Intake Valve Guide[05.1995 - 07.1999] 1HDFT..HDB5# ＳＴＤ |
11122-17010 |
from US $11.35 |
||
|
11122
|
11122
11123-17010 Bush, Intake Valve Guide[05.1995 - 07.1999] 1HDFT..HDB5# Ｏ／Ｓ ０．０５ |
11123-17010 |
US $9.77 |
||
|
11126
|
11126
11122-17010 Bush, Intake Valve Guide[05.1995 - 07.1999] 1HDFT..HDB5# ＳＴＤ |
11122-17010 |
from US $11.35 |
||
|
11126
|
11126
11123-17010 Bush, Intake Valve Guide[05.1995 - 07.1999] 1HDFT..HDB5# Ｏ／Ｓ ０．０５ |
11123-17010 |
US $9.77 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.50 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
11183-54011 |
from US $6.40 |
||
|
11201
|
11201
11201-17030
Cover Sub-Assy, Cylinder Head
[05.1995 - 01.1998] 1HDFT..HDB5# |
11201-17030 |
— | ||
|
11201
|
11201
11201-17031
Cover Sub-Assy, Cylinder Head
[01.1998 - 07.1999] 1HDFT..HDB5# |
11201-17031 |
— | ||
|
11201B
|
11201B
90902-02002
Washer, Seal(For Cylinder Head Cover)
[03.1997 - 01.1998] 1HDFT..HDB5# |
90902-02002 |
— | ||
| replacement | |||||
|
11201B
|
11201B
90901-19047 Bolt, Washer (For Cylinder Head Cover)[03.1997 - 01.1998] 1HDFT..HDB5# |
90901-19047 |
from US $1.79 |
||
|
11201H
|
11201H
90901-19047 Bolt, Washer (For Cylinder Head Cover)[03.1997 - 01.1998] 1HDFT..HDB5# |
90901-19047 |
from US $1.79 |
||
|
11213
|
11213
11213-17020 Gasket, Cylinder Head Cover[05.1995 - 01.1998] 1HDFT..HDB5# |
11213-17020 |
US $29.94 |
||
|
11213
|
11213
11213-17030 Gasket, Cylinder Head Cover[01.1998 - 07.1999] 1HDFT..HDB5# |
11213-17030 |
from US $24.53 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90430-37004 |
from US $1.35 |
||
|
9010508337
|
9010508337
90105-08337
Bolt(For Head To Camshaft Bearing Cap)
|
90105-08337 |
— | ||
| replacement | |||||
|
9010508337
|
9010508337
90105-08353 Bolt(For Head To Camshaft Bearing Cap) |
90105-08353 |
from US $1.60 |
||
|
9025006013
|
9025006013
90250-06013 Pin, Straight, No.1 |
90250-06013 |
US $0.61 |
||
|
9641142500
|
9641142500
96411-42500 Plug, Tight, No.1 |
96411-42500 |
from US $2.95 |
||
