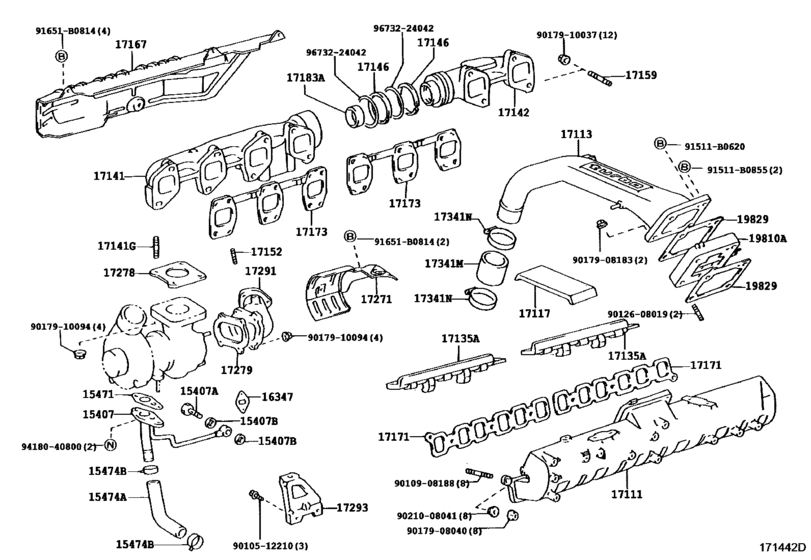

Manifold ([05.1995 - 07.1999] (9505-9907)1HDFT) Diagram Toyota COASTER
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- HDB51
- grade
- EX
- Roof
- HRF
- ENGINE
- 1HDFT
- TRANSMISSION
- MTM
- COOLER
- WC
- Model
- COASTER
- From
- 05.1997
- To
- 07.1999
- Gear Shift Type
- 6F
- Seating Capacity
- 29S
- Vehicle Model
- Coaster
- Fuel Induction
- TD4
- Building Condition
- CBU
- Rear Tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-17013
Pipe Sub-Assy, Turbo Oil Inlet
[01.1997 - 01.1998] 1HDFT..HDB5# |
15407-17013 |
— | ||
|
15407
|
15407
15407-17020 Pipe Sub-Assy, Turbo Oil Inlet[01.1998 - 07.1999] 1HDFT..HDB5# |
15407-17020 |
from US $24.55 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1993 - 07.1999] 1HD#..HDB5# |
90401-12097 |
from US $3.08 |
||
|
15407B
|
15407B
90430-12221 Gasket[01.1993 - 07.1999] 1HD#..HDB5# |
90430-12221 |
from US $1.13 |
||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[01.1993 - 07.1999] 1HD#..HDB5# |
15471-58010 |
from US $2.59 |
||
|
15474A
|
15474A
90910-05206 Hose, Turbo Oil Outlet[01.1993 - 07.1999] 1HD#..HDB5# |
90910-05206 |
from US $5.93 |
||
|
15474B
|
15474B
90467-26001
Clip Or Clamp(For Ventilation Hose)
[01.1993 - 07.1999] 1HD#..HDB5# |
90467-26001 |
— | ||
| replacement | |||||
|
15474B
|
15474B
96134-52600 Clip Or Clamp(For Ventilation Hose)[01.1993 - 07.1999] 1HD#..HDB5# |
96134-52600 |
from US $3.14 |
||
|
16347
|
16347
16347-42020 Gasket, Water By-Pass[01.1993 - 07.1999] 1HD#..HDB5# |
16347-42020 |
from US $2.85 |
||
|
17111
|
17111
17101-17020
Manifold, Intake
[05.1995 - 07.1999] 1HDFT..HDB5# |
17101-17020 |
— | ||
|
17113
|
17113
17113-17040
Pipe, Intake
[05.1995 - 07.1999] 1HDFT..HDB5# |
17113-17040 |
— | ||
|
17117
|
17117
17117-17020
Insulator, Intake Pipe
[05.1995 - 07.1999] 1HDFT..HDB5# |
17117-17020 |
— | ||
|
17135A
|
17135A
17135-17010 Insulator, Intake Manifold, No.1[05.1995 - 07.1999] 1HDFT..HDB5# |
17135-17010 |
US $40.13 |
||
|
17141
|
17141
17141-17030
Manifold, Exhaust
[05.1995 - 04.1999] 1HDFT..HDB5# |
17141-17030 |
— | ||
| replacement | |||||
|
17141
|
17141
17141-17031 Manifold, Exhaust[05.1995 - 04.1999] 1HDFT..HDB5# |
17141-17031 |
US $370.41 |
||
|
17141
|
17141
17141-17031 Manifold, Exhaust[04.1999 - 07.1999] 1HDFT..HDB5# |
17141-17031 |
US $370.41 |
||
|
17141G
|
17141G
90116-10117 Bolt, Stud(For Turbine Housing)[01.1993 - 07.1999] 1HD#..HDB5# |
90116-10117 |
from US $1.52 |
||
|
17142
|
17142
17142-17020 Case, Exhaust Manifold, No.2[05.1995 - 07.1999] 1HDFT..HDB5# |
17142-17020 |
US $400.11 |
||
|
17146
|
17146
17151-17010 Ring, Exhaust Manifold[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
17151-17010 |
from US $7.72 |
||
|
17152
|
17152
90126-10006 Bolt, Stud(For Manifold To Exhaust Pipe)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90126-10006 |
from US $4.78 |
||
|
17159
|
17159
90116-10171 Bolt, Stud(For Manifold To Cylinder Head)[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
90116-10171 |
from US $1.19 |
||
|
17167
|
17167
17167-17050
Insulator, Exhaust Manifold Heat, No.1
[05.1995 - 07.1999] 1HDFT..HDB5# |
17167-17050 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-17052
Insulator, Exhaust Manifold Heat, No.1
[05.1995 - 07.1999] 1HDFT..HDB5# |
17167-17052 |
— | ||
|
17171
|
17171
17171-17020 Gasket, Intake To Exhaust Manifold[05.1995 - 07.1999] 1HDFT..HDB5# |
17171-17020 |
from US $35.70 |
||
|
17173
|
17173
17173-17020 Gasket, Exhaust Manifold To Head[05.1995 - 07.1999] 1HDFT..HDB5# |
17173-17020 |
from US $26.33 |
||
|
17183A
|
17183A
17183-17010 Collar, Manifold[01.1993 - 07.1999] 1HD#,1HZ..HDB5#,HZB4#,5# |
17183-17010 |
from US $3.98 |
||
|
17271
|
17271
17271-17020 Insulator, Turbo, No.1[01.1993 - 07.1999] 1HD#..HDB5# |
17271-17020 |
US $43.97 |
||
|
17278
|
17278
17278-17010 Gasket, Turbo To Exhaust Manifold[01.1995 - 07.1999] 1HD#..HDB5# |
17278-17010 |
from US $23.46 |
||
|
17279
|
17279
17279-17020 Gasket, Turbine Outlet Elbow[01.1995 - 07.1999] 1HD#..HDB5# |
17279-17020 |
from US $12.66 |
||
|
17291
|
17291
17291-17020 Elbow, Turbine Outlet[01.1993 - 07.1999] 1HD#..HDB5# |
17291-17020 |
US $196.56 |
||
|
17293
|
17293
17293-17010
Stay, Turbocharger
[01.1993 - 01.1998] 1HD#..HDB5# |
17293-17010 |
— | ||
| replacement | |||||
|
17293
|
17293
17293-17020 Stay, Turbocharger[01.1993 - 01.1998] 1HD#..HDB5# |
17293-17020 |
from US $34.28 |
||
|
17293
|
17293
17293-17020 Stay, Turbocharger[01.1998 - 07.1999] 1HDFT..HDB5# |
17293-17020 |
from US $34.28 |
||
|
17341M
|
17341M
17341-17012 Hose, Air, No.1[03.1994 - 07.1999] 1HD#..HDB5# |
17341-17012 |
from US $37.38 |
||
|
17341N
|
17341N
90467-56001 Clamp Or Clip(For Air Hose, No.1)[01.1993 - 07.1999] 1HD#..HDB5# |
90467-56001 |
from US $6.65 |
||
|
19810A
|
19810A
19810-17020 Heater Assy, Intake[05.1995 - 07.1999] 1HDFT..HDB5# |
19810-17020 |
US $501.45 |
||
|
19829
|
19829
19829-17010 Gasket, Intake Heater[05.1995 - 07.1999] 1HDFT..HDB5# |
19829-17010 |
from US $4.23 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.76 |
||
|
91511B0855
|
91511B0855
91511-B0855 BOLT FLANGE |
91511-B0855 |
US $2.72 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9010512210
|
9010512210
90105-12210 BOLT, WASHER BASED |
90105-12210 |
from US $3.37 |
||
|
9010908188
|
9010908188
90109-08188 BOLT |
90109-08188 |
from US $0.94 |
||
|
9012608019
|
9012608019
90126-08019
New Genuine Part
|
90126-08019 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.15 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.73 |
||
|
9021008041
|
9021008041
90210-08041 WASHER |
90210-08041 |
from US $1.23 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9673224042
|
9673224042
96732-24042 GASKET |
96732-24042 |
from US $2.34 |
||
