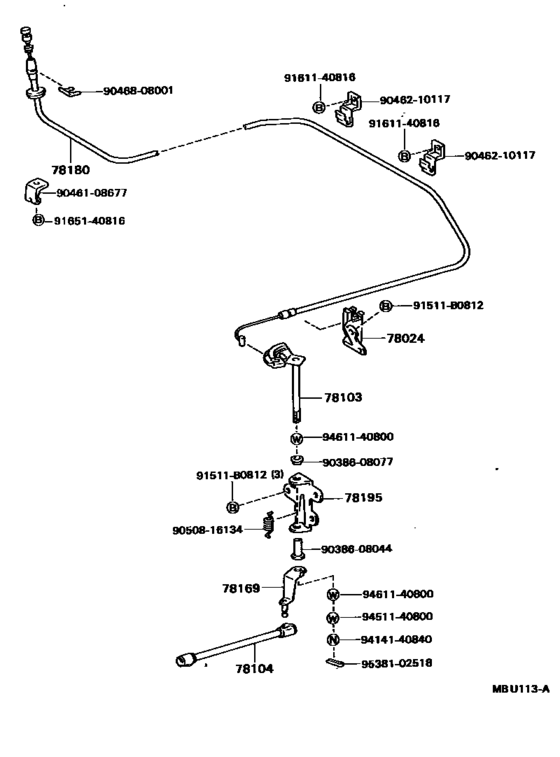

Accelerator Link ([01.1990 - ] (9001- )HZB30..LHD) Diagram Toyota COASTER
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- HZB30
- grade
- DLX
- Roof
- SRF
- ENGINE
- 1HZ
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 01.1990
- To
- 01.1993
- Gear Shift Type
- 5F
- Seating Capacity
- 30S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-60010 Bracket Sub-Assy, Accelerator Control Cable[01.1990 - 01.1993] HZB30 |
78024-60010 |
US $24.29 |
||
|
78103
|
78103
78103-90B00 Rod Sub-Assy, Accelerator Connecting, No.1[05.1982 - 01.1993] HZB30,RB20 |
78103-90B00 |
US $39.89 |
||
|
78104
|
78104
78104-90B01 Rod Sub-Assy, Accelerator Connecting, No.2[08.1984 - 01.1993] HZB30,RB20 |
78104-90B01 |
US $20.09 |
||
|
78169
|
78169
78169-60010 Hanger, Accelerator Spring[01.1990 - 01.1993] HZB30 |
78169-60010 |
US $3.68 |
||
|
78180
|
78180
78180-90B15 Wire Assy, AcceleratorACCELERATOR [01.1990 - 01.1993] HDB30,HZB30..LHD |
78180-90B15 |
US $85.90 |
||
|
78195
|
78195
78195-60010
Bracket, Accelerator Link
[01.1990 - 08.1992] HZB30 |
78195-60010 |
— | ||
| replacement | |||||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[01.1990 - 08.1992] HZB30 |
78195-60011 |
US $5.42 |
||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[08.1992 - 01.1993] HZB30 |
78195-60011 |
US $5.42 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
US $1.76 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046108677
|
9046108677
90461-08677 New Genuine Part |
90461-08677 |
US $3.64 |
||
|
9046210117
|
9046210117
90462-10117 New Genuine Part |
90462-10117 |
US $3.64 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9050816134
|
9050816134
90508-16134 Spring, Clamp, No.4 |
90508-16134 |
US $0.96 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9414140840
|
9414140840
94141-40840 New Genuine Part |
94141-40840 |
US $1.60 |
||
|
9451140800
|
9451140800
94511-40800
New Genuine Part
|
94511-40800 |
— | ||
|
9461140800
|
9461140800
94611-40800 New Genuine Part |
94611-40800 |
US $1.89 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
