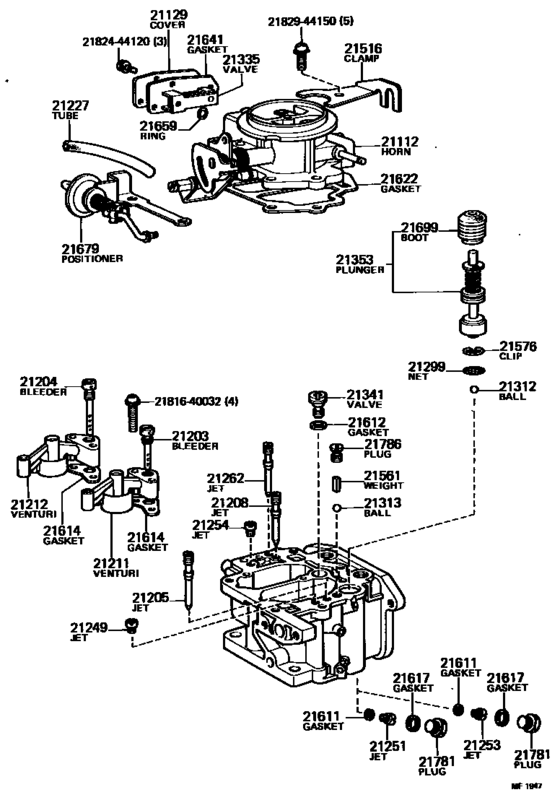

Carburetor ([08.1977 - 11.1979] (7708-7911)5R) Diagram Toyota COASTER
- Year
- 1977 - 1979
- Sales region
- Europe
- Frame
- RB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 5R
- DESTINATION
- GEN
- Model
- COASTER
- From
- 08.1977
- To
- 11.1979
- Gear Shift Type
- 4H
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21012-44122
Horn, Air
[08.1977 - 11.1979] 5R..RB10 |
21012-44122 |
— | ||
|
21129
|
21129
21398-44120
Cover(For Thermostatic Valve)
[08.1977 - 11.1979] 5R..RB10 |
21398-44120 |
— | ||
|
21203
|
21203
21203-44120 Bleeder Sub-Assy, 1St Main Air1ST MAIN AIR [08.1977 - 11.1979] 5R..RB10 |
21203-44120 |
US $12.96 |
||
|
21204
|
21204
21203-44051 Bleeder Sub-Assy, 2Nd Main Air2ND MAIN AIR [08.1977 - 11.1979] 5R..RB10 |
21203-44051 |
US $9.17 |
||
|
21205
|
21205
21205-44250 Jet Sub-Assy, SlowSLOW [08.1977 - 11.1979] 5R..RB10 ID=0.48 |
21205-44250 |
US $9.90 |
||
|
21208
|
21208
21208-44120
Jet Sub-Assy, Step
[08.1977 - 11.1979] 5R..RB10 ID=0.60 |
21208-44120 |
— | ||
|
21211
|
21211
21201-44120
Venturi, 1St Small
[08.1977 - 11.1979] 5R..RB10 |
21201-44120 |
— | ||
|
21212
|
21212
21202-44122
Venturi, 2Nd Small
[08.1977 - 11.1979] 5R..RB10 |
21202-44122 |
— | ||
|
21227
|
21227
21681-44171
Tube, Air Vent
[08.1977 - 11.1979] 5R..RB10 |
21681-44171 |
— | ||
|
21249
|
21249
21249-34400 Jet, Air Bleed, No.2AIR BLEED, NO.2 [08.1977 - 11.1979] 5R..RB10 ID=1.60 |
21249-34400 |
US $7.13 |
||
|
21251
|
21251
21251-44250 Jet, 1St Main[08.1977 - 11.1979] 5R..RB10 ID=1.03 |
21251-44250 |
US $5.39 |
||
|
21253
|
21253
21253-34400 Jet, 2Nd Main[08.1977 - 11.1979] 5R..RB10 ID=1.55 |
21253-34400 |
US $4.08 |
||
|
21254
|
21254
21204-44122 Jet, Step Air BleedSTEP AIR BLEED [08.1977 - 11.1979] 5R..RB10 ID=1.00 |
21204-44122 |
US $4.08 |
||
|
21262
|
21262
21262-44250 Jet, Main Air BleedMAIN AIR BLEED [08.1977 - 11.1979] 5R..RB10 ID=0.42 |
21262-44250 |
US $6.70 |
||
|
21299
|
21299
21299-40020 Net, Pump FilterPUMP FILTER [08.1977 - 11.1979] 5R..RB10 |
21299-40020 |
US $2.62 |
||
|
21312
|
21312
21312-40020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1977 - 11.1979] 5R..RB10 |
21312-40020 |
US $3.64 |
||
|
21313
|
21313
21312-40020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1977 - 11.1979] 5R..RB10 |
21312-40020 |
US $3.64 |
||
|
21335
|
21335
21038-44122 Valve, ThermostaticTHERMOSTATIC [08.1977 - 11.1979] 5R..RB10 |
21038-44122 |
US $31.60 |
||
|
21341
|
21341
21302-36120 Valve, PowerPOWER [08.1977 - 11.1979] 5R..RB10 |
21302-36120 |
US $13.83 |
||
| replacement | |||||
|
21341
|
21341
21302-73110 Jet, Power[08.1977 - 11.1979] 5R..RB10 |
21302-73110 |
US $13.40 |
||
|
21353
|
21353
21035-44052 Plunger, PumpPUMP [08.1977 - 11.1979] 5R..RB10 |
21035-44052 |
US $58.39 |
||
|
21516
|
21516
21516-44170
Clamp, Connector
[08.1977 - 11.1979] 5R..RB10 |
21516-44170 |
— | ||
|
21561
|
21561
21561-40020 Weight, Pump DischargePUMP DISCHARGE [08.1977 - 11.1979] 5R..RB10 |
21561-40020 |
US $3.49 |
||
|
21576
|
21576
21576-40020 Clip, Pump StrainerPUMP STRAINER [08.1977 - 11.1979] 5R..RB10 |
21576-40020 |
US $2.77 |
||
|
21611
|
21611
21611-40021
Gasket, Main Jet
[08.1977 - 11.1979] 5R..RB10 |
21611-40021 |
— | ||
|
21612
|
21612
21612-31100
Gasket, Power Valve
[08.1977 - 11.1979] 5R..RB10 |
21612-31100 |
— | ||
|
21614
|
21614
21614-44120 Gasket, VenturiVENTURI [08.1977 - 11.1979] 5R..RB10 |
21614-44120 |
US $3.64 |
||
|
21617
|
21617
21633-44150
Gasket, Main Passage Plug
[08.1977 - 11.1979] 5R..RB10 |
21633-44150 |
— | ||
|
21622
|
21622
21622-44120 Gasket, Air HornAIR HORN [08.1977 - 11.1979] 5R..RB10 |
21622-44120 |
US $5.97 |
||
| replacement | |||||
|
21622
|
21622
21622-44301 Gasket, Air Horn[08.1977 - 11.1979] 5R..RB10 |
21622-44301 |
US $9.46 |
||
|
21641
|
21641
21626-44120 Gasket(For Thermostatic Valve Cover)[08.1977 - 11.1979] 5R..RB10 |
21626-44120 |
US $3.79 |
||
|
21659
|
21659
21655-31100 Ring, O(For Thermostatic Valve)[08.1977 - 11.1979] 5R..RB10 |
21655-31100 |
US $3.64 |
||
|
21679
|
21679
21039-44122 Positioner[08.1977 - 11.1979] 5R..RB10 |
21039-44122 |
US $31.01 |
||
|
21699
|
21699
21656-40021 Boot(For Pump Plunger)[08.1977 - 11.1979] 5R..RB10 |
21656-40021 |
US $5.24 |
||
|
21781
|
21781
21781-44150 Plug, Main Passage(For Carburetor Jet)MAIN PASSAGE(FOR CARBURETOR JET) [08.1977 - 11.1979] 5R..RB10 |
21781-44150 |
US $2.48 |
||
|
21786
|
21786
21787-40021 Plug, Pump PassagePUMP PASSAGE [08.1977 - 11.1979] 5R..RB10 |
21787-40021 |
US $3.49 |
||
|
2181640032
|
2181640032
21816-40032 Screw, Small Venturi Set, No.1 |
21816-40032 |
US $3.20 |
||
|
2182444120
|
2182444120
21824-44120 Screw, Set(for 1st Idle Cam Follower Set) |
21824-44120 |
US $2.48 |
||
|
2182944150
|
2182944150
21829-44150 Screw, High Speed Valve Set |
21829-44150 |
US $2.33 |
||
