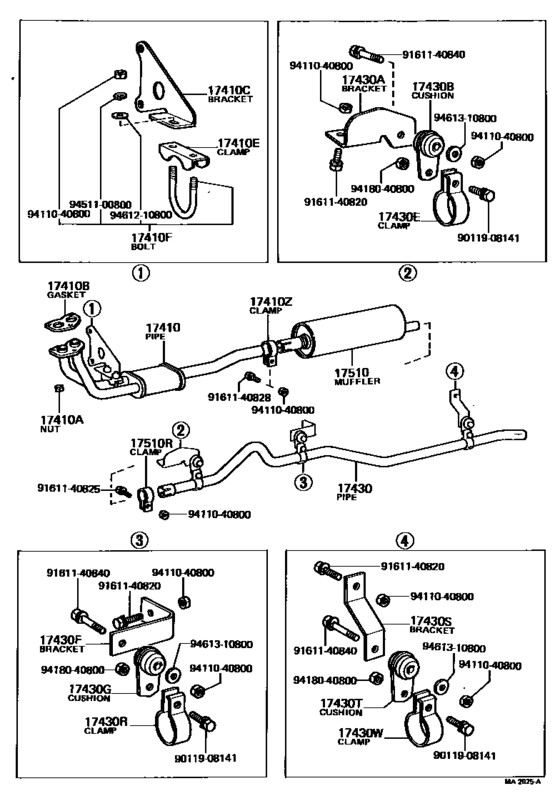

Exhaust Pipe ([08.1977 - 11.1979] (7708-7911)5R) Diagram Toyota COASTER
- Year
- 1977 - 1979
- Sales region
- Europe
- Frame
- RB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 5R
- DESTINATION
- GEN
- Model
- COASTER
- From
- 08.1977
- To
- 11.1979
- Gear Shift Type
- 4H
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-44024 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1977 - 11.1979] 5R..RB10 |
17410-44024 |
US $110.66 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [08.1977 - 08.1978] 20R,5R..RB1# |
90179-10118 |
US $4.32 |
||
|
17410B
|
17410B
17451-41010
Gasket, Exhaust Pipe
[08.1977 - 11.1979] 5R..RB10 |
17451-41010 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-28010 Gasket, Exhaust Pipe[08.1977 - 11.1979] 5R..RB10 |
17451-28010 |
US $12.80 |
||
|
17410C
|
17410C
17571-46060
Bracket, Exhaust Pipe Front (For Front)
[08.1977 - 11.1979] 5R..RB10 |
17571-46060 |
— | ||
|
17410E
|
17410E
90917-04016 Clamp No.1, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
90917-04016 |
US $8.30 |
||
|
17410F
|
17410F
90999-99003 Bolt Or Ring, Exhaust Pipe Front (For Front)EXHAUST PIPE FRONT (FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
90999-99003 |
US $8.01 |
||
|
17410Z
|
17410Z
90461-23071
Clamp No.2, Exhaust Pipe Center, Rear
[08.1977 - 11.1979] 5R..RB10 |
90461-23071 |
— | ||
| replacement | |||||
|
17410Z
|
17410Z
90461-23087
Clamp No.2, Exhaust Tail Pipe(For Front)
[08.1977 - 11.1979] 5R..RB10 |
90461-23087 |
— | ||
|
17430
|
17430
17431-44052 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.1977 - 11.1979] 5R..RB10 |
17431-44052 |
US $56.78 |
||
|
17430A
|
17430A
17572-40020 Bracket, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
17572-40020 |
US $5.82 |
||
|
17430B
|
17430B
90917-08004 Cushion, Exhaust Pipe Front (For Front)[08.1977 - 11.1979] 20R,2B,5R..BB10,RB1# |
90917-08004 |
US $12.80 |
||
|
17430E
|
17430E
90461-23170 Clamp No.2, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
90461-23170 |
US $7.13 |
||
|
17430F
|
17430F
17573-48040
Bracket, Exhaust Tail Pipe(For Center)
[08.1977 - 11.1979] 20R,5R..RB1# |
17573-48040 |
— | ||
|
17430G
|
17430G
90917-08004 Cushion, Exhaust Pipe Front (For Front)[08.1977 - 11.1979] 20R,2B,5R..BB10,RB1# |
90917-08004 |
US $12.80 |
||
|
17430R
|
17430R
90461-23170 Clamp No.2, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
90461-23170 |
US $7.13 |
||
|
17430S
|
17430S
17573-40010
Bracket, Exhaust Tail Pipe (For Rear)
[08.1977 - 11.1979] 20R,5R..RB1# |
17573-40010 |
— | ||
|
17430T
|
17430T
90917-08004 Cushion, Exhaust Pipe Front (For Front)[08.1977 - 11.1979] 20R,2B,5R..BB10,RB1# |
90917-08004 |
US $12.80 |
||
|
17430W
|
17430W
90461-23170 Clamp No.2, Exhaust Tail Pipe(For Front)EXHAUST TAIL PIPE(FOR FRONT) [08.1977 - 11.1979] 5R..RB10 |
90461-23170 |
US $7.13 |
||
|
17510
|
17510
17510-44020 Muffler Assy[08.1977 - 11.1979] 5R..RB10 |
17510-44020 |
US $84.45 |
||
|
17510R
|
17510R
90461-23080 Clamp No.2, Muffler, RearMUFFLER, REAR [08.1977 - 11.1979] 5R..RB10 |
90461-23080 |
US $3.64 |
||
|
9011908141
|
9011908141
90119-08141 New Genuine Part |
90119-08141 |
US $2.77 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9161140828
|
9161140828
91611-40828
Bolt(For Clutch Release Cylinder Setting)
|
91611-40828 |
— | ||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.76 |
||
|
9161140840
|
9161140840
91611-40840
New Genuine Part
|
91611-40840 |
— | ||
| replacement | |||||
|
9161140840
|
9161140840
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
