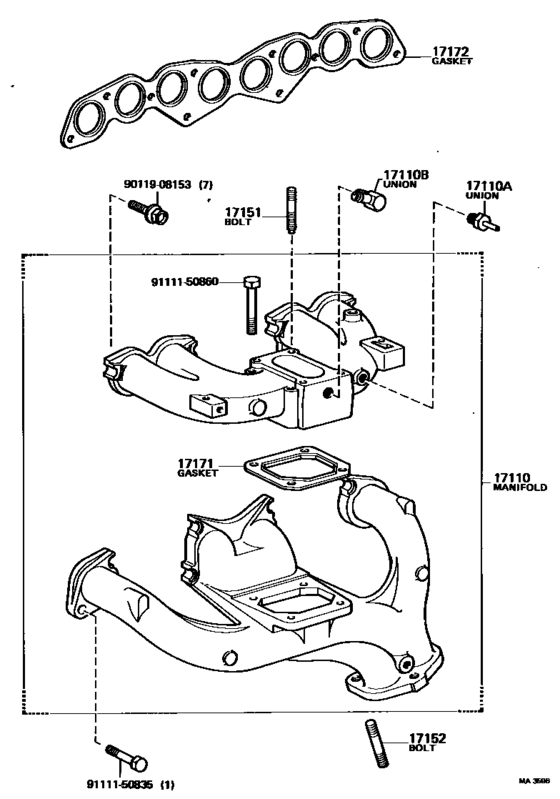

Manifold ([08.1977 - 11.1979] (7708-7911)5R) Diagram Toyota COASTER
- Year
- 1977 - 1979
- Sales region
- Europe
- Frame
- RB10
- grade
- DLX
- Roof
- SRF
- ENGINE
- 5R
- DESTINATION
- GEN
- Model
- COASTER
- From
- 08.1977
- To
- 11.1979
- Gear Shift Type
- 4H
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110
|
17110
17110-44072
Manifold Assy
[08.1977 - 07.1978] 5R..RB10 |
17110-44072 |
— | ||
| replacements | |||||
|
17110
|
17110
17110-44074 Manifold Assy[08.1977 - 07.1978] 5R..RB10 |
17110-44074 |
US $768.77 |
||
|
17110
|
17110
12281-44011 Hanger, Engine, No.1ENGINE, NO.1 [08.1977 - 07.1978] 5R..RB10 |
12281-44011 |
US $13.10 |
||
|
17110
|
17110
90345-51025 Plug, W/head Taper Screw, No.2[08.1977 - 07.1978] 5R..RB10 |
90345-51025 |
US $3.36 |
||
|
17110
|
17110
17110-44073 Manifold Assy[07.1978 - 11.1979] 5R..RB10 |
17110-44073 |
US $728 |
||
| replacements | |||||
|
17110
|
17110
90345-51025 Plug, W/head Taper Screw, No.2[07.1978 - 11.1979] 5R..RB10 |
90345-51025 |
US $3.36 |
||
|
17110
|
17110
17110-44074 Manifold Assy[07.1978 - 11.1979] 5R..RB10 |
17110-44074 |
US $768.77 |
||
|
17110A
|
17110A
90404-51093 Union, Vacuum Hose[08.1977 - 11.1979] 5R..RB10 |
90404-51093 |
from US $2.45 |
||
|
17110B
|
17110B
90407-10040
Union(For Ventilation Hose To Manifold)
[08.1977 - 11.1979] 5R..RB10 |
90407-10040 |
— | ||
| replacement | |||||
|
17110B
|
17110B
90407-52007 Union, No.2[08.1977 - 11.1979] 5R..RB10 |
90407-52007 |
US $7.28 |
||
|
17151
|
17151
90116-08276 Bolt, Stud(For Manifold To Carburetor)STUD(FOR MANIFOLD TO CARBURETOR) [08.1977 - 11.1979] 5R..RB10 L=40,S=11&11 |
90116-08276 |
US $2.33 |
||
|
17152
|
17152
90116-10027 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1979 - 11.1979] 5R..RB10 L=37,S=20&14 |
90116-10027 |
US $3.35 |
||
|
17152
|
17152
90116-10042 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1977 - 07.1979] 5R..RB10 L=37,S=20&13 |
90116-10042 |
US $4.32 |
||
|
17171
|
17171
17171-44010
Gasket, Intake To Exhaust Manifold
[08.1977 - 11.1979] 5R..RB10 |
17171-44010 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-44011 Gasket, Intake To Exhaust Manifold[08.1977 - 11.1979] 5R..RB10 |
17171-44011 |
US $9.03 |
||
|
17172
|
17172
17172-44011
Gasket, Manifold To Cylinder Head
[08.1977 - 11.1979] 5R..RB10 |
17172-44011 |
— | ||
| replacement | |||||
|
17172
|
17172
17172-44012 Gasket, Manifold To Cylinder Head[08.1977 - 11.1979] 5R..RB10 |
17172-44012 |
US $13.40 |
||
|
9011908153
|
9011908153
90119-08153 New Genuine Part |
90119-08153 |
US $1.89 |
||
|
9111150835
|
9111150835
91111-50835 Bolt(For Clutch Pedal Stopper) |
91111-50835 |
US $1.89 |
||
| replacement | |||||
|
9111150835
|
9111150835
91131-50835 Bolt(For Clutch Pedal Stopper) |
91131-50835 |
US $2.62 |
||
|
9111150860
|
9111150860
91111-50860 Shaft, Clutch Pedal |
91111-50860 |
US $4.22 |
||
