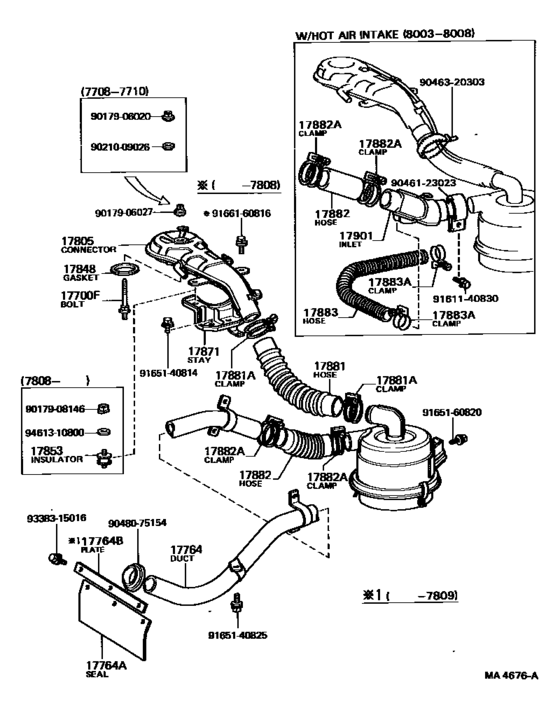

Air Cleaner ([08.1977 - ] (7708- )20R,22R) Diagram Toyota COASTER
- Year
- 1979 - 1980
- Sales region
- Japan
- Frame
- RB12
- grade
- STD
- Roof
- SRF
- ENGINE
- 20R
- Model
- COASTER
- From
- 11.1979
- To
- 08.1980
- Gear Shift Type
- 5F
- Seating Capacity
- 22S
- Vehicle Model
- Coaster
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700F
|
17700F
90116-06143
Bolt, Stud(For Air Cleaner Setting)
[08.1977 - 08.1980] 20R..RB1# |
90116-06143 |
— | ||
|
17764
|
17764
58609-90500
Duct, Air Cleaner
[08.1977 - 04.1982] 2B..BB1#; 20R,22R..RB1# |
58609-90500 |
— | ||
|
17764A
|
17764A
58395-90740
Seal, Air Cleaner Duct
[08.1977 - 04.1982] 2B..BB1#; 20R,22R..RB1# |
58395-90740 |
— | ||
|
17805
|
17805
17861-38012
Connector Sub-Assy, Intake Air
[11.1979 - 08.1980] 20R..RB12 |
17861-38012 |
— | ||
|
17848
|
17848
17849-38010
Gasket, Air Cleaner To Carburetor
[08.1977 - 08.1980] 20R..RB1# |
17849-38010 |
— | ||
|
17853
|
17853
17853-38010
Bush(For Sub Radiator)
[08.1978 - 04.1982] 20R,22R..RB1# |
17853-38010 |
— | ||
|
17871
|
17871
17871-38011
Stay, Air Connector
[08.1978 - 04.1982] 20R,22R..RB1# |
17871-38011 |
— | ||
|
17881
|
17881
17881-38020 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [08.1977 - 04.1982] 20R,22R..RB1# |
17881-38020 |
US $123.76 |
||
|
17881A
|
17881A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[08.1977 - 04.1982] 20R,22R..RB1# ID=75 |
96111-10750 |
from US $3.04 |
||
|
17882
|
17882
17882-38040 Hose, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1977 - 04.1982] 2B..BB1#; 20R,22R..RB1# |
17882-38040 |
US $63.19 |
||
|
17882
|
17882
17882-38070
Hose, Air Cleaner, No.2
[03.1980 - 08.1980] 20R..RB12 W/HOT AIR INTAKE |
17882-38070 |
— | ||
|
17882A
|
17882A
96111-10750 Clamp, Hose(For Air Cleaner Duct)[08.1977 - 04.1982] 2B..BB1# ID=75; 20R,22R..RB1# ID=75 |
96111-10750 |
from US $3.04 |
||
|
17883
|
17883
17883-38010 Hose, Air Cleaner, No.3[03.1980 - 08.1980] 20R..RB12 W/HOT AIR INTAKE |
17883-38010 |
US $38.58 |
||
| replacement | |||||
|
17883
|
17883
17881-74040
Hose, Air Cleaner, No.1
[03.1980 - 08.1980] 20R..RB12 W/HOT AIR INTAKE |
17881-74040 |
— | ||
|
17883A
|
17883A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[03.1980 - 08.1980] 20R..RB12 W/HOT AIR INTAKE |
96111-10460 |
from US $2.98 |
||
|
17901
|
17901
17901-38010
Inlet Sub-Assy, Hot Air
[03.1980 - 08.1980] 20R..RB12 W/HOT AIR INTAKE |
17901-38010 |
— | ||
|
9017906020
|
9017906020
90179-06020 New Genuine Part |
90179-06020 |
US $2.48 |
||
| replacement | |||||
|
9017906020
|
9017906020
90179-06012 New Genuine Part |
90179-06012 |
US $2.48 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9021009026
|
9021009026
90210-09026 Washer, Seal(For Air Cleaner) |
90210-09026 |
from US $2.63 |
||
|
9046123023
|
9046123023
90461-23023
New Genuine Part
|
90461-23023 |
— | ||
|
9046320303
|
9046320303
90463-20303 New Genuine Part |
90463-20303 |
US $3.49 |
||
|
9048075154
|
9048075154
90480-75154
New Genuine Part
|
90480-75154 |
— | ||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
|
9338315016
|
9338315016
93383-15016 New Genuine Part |
93383-15016 |
US $1.16 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
