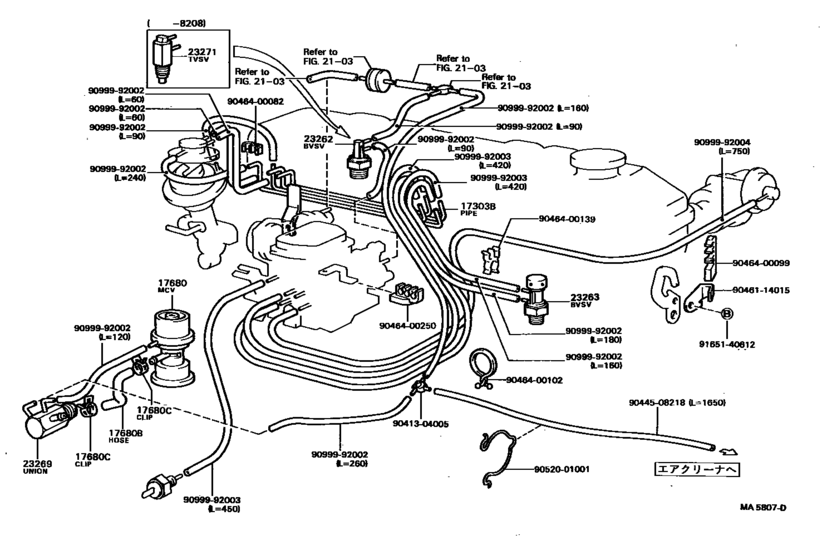

Vacuum Piping ([05.1982 - 08.1984] (8205-8408)22R) Diagram Toyota COASTER
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- RB20
- grade
- STD
- Roof
- SRF
- ENGINE
- 22R
- COOLER
- WOC
- Model
- COASTER
- From
- 05.1982
- To
- 10.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-35070
Pipe Sub-Assy, Air, No.1
[05.1982 - 01.1993] 22R..RB2# |
17303-35070 |
— | ||
|
17680
|
17680
17680-35020 Valve Assy, Mixture Control[05.1982 - 01.1993] 22R..RB2# |
17680-35020 |
US $173.26 |
||
|
17680B
|
17680B
17346-35020
Hose(For Mixture Control Valve)
[05.1982 - 01.1993] 22R..RB2# |
17346-35020 |
— | ||
|
17680C
|
17680C
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
[05.1982 - 01.1993] 22R..RB2# |
90467-13007 |
— | ||
| replacement | |||||
|
17680C
|
17680C
96132-51300 Clip(For Ventilation Hose No.2)[05.1982 - 01.1993] 22R..RB2# |
96132-51300 |
from US $1.56 |
||
|
23262
|
23262
90925-05066
Valve, Bimetal Vacuum Switching, No.1
[08.1982 - 09.1987] 22R..RB2# |
90925-05066 |
— | ||
|
23263
|
23263
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[05.1982 - 08.1984] 22R..RB20 |
25820-13010 |
— | ||
|
23263
|
23263
25820-13020 Valve, Bimetal Vacuum Switching, No.1[08.1984 - 09.1987] 22R..RB2# |
25820-13020 |
US $88.80 |
||
|
23269
|
23269
90404-54020 Union(For Gas Filter)[05.1982 - 01.1993] 22R..RB2# |
90404-54020 |
US $16.02 |
||
|
23271
|
23271
90925-02028 Valve, Thermostatic Vacuum Switching, No.1[05.1982 - 08.1982] 22R..RB20 |
90925-02028 |
US $74.26 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9044508218
|
9044508218
90445-08218 Hose, Fuel, No.1(For Charcoal Canister) |
90445-08218 |
US $34.36 |
||
| replacement | |||||
|
9044508218
|
9044508218
90999-92007 Hose, Vacuum Tank |
90999-92007 |
US $37.54 |
||
|
9046114015
|
9046114015
90461-14015 New Genuine Part |
90461-14015 |
US $3.20 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400099
|
9046400099
90464-00099 New Genuine Part |
90464-00099 |
US $4.37 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9046400139
|
9046400139
90464-00139 Clamp (For Idle Up Divice), No.1 |
90464-00139 |
US $3.32 |
||
|
9046400250
|
9046400250
90464-00250 New Genuine Part |
90464-00250 |
US $4.51 |
||
|
9052001001
|
9052001001
90520-01001 New Genuine Part |
90520-01001 |
US $4.37 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9099992004
|
9099992004
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $9.46 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
