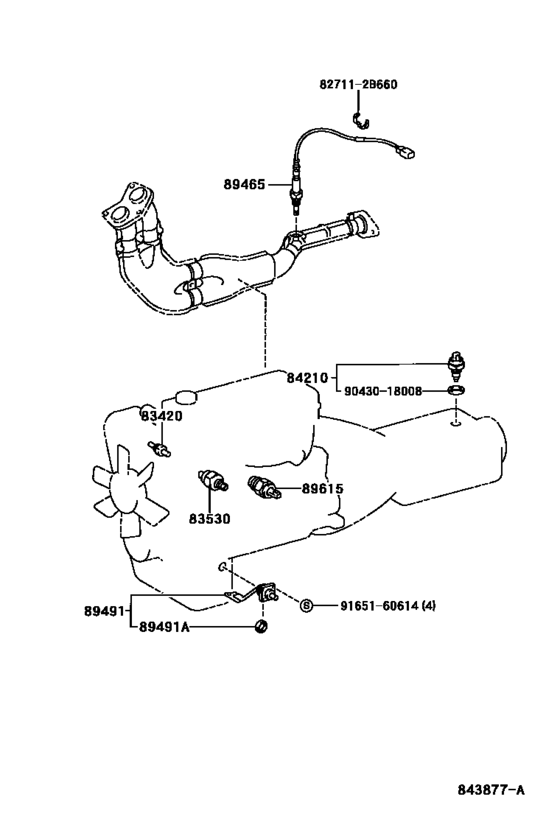

Switch & Relay & Computer ([12.2000 - ] ENGINE & TRANSMISSION (0012- )RZB5#) Diagram Toyota COASTER
- Year
- 2003 - 2007
- Sales region
- General
- Frame
- RZB54
- grade
- STD
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 10.2003
- To
- 01.2007
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[10.2003 - 01.2007] RZB5# |
83420-20040 |
from US $37.91 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[10.2003 -] RZB5#,TRB53 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [10.2003 -] RZB5#,TRB53 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[10.2003 -] RZB5#,TRB53 DENSO |
83530-0E010 |
from US $51.25 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[10.2003 - 06.2012] BB5#,RZB5#,TRB53,XZB53 |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[10.2003 - 06.2012] BB5#,RZB5#,TRB53,XZB53 |
84210-52050 |
from US $20.67 |
||
|
89465
|
89465
89465-36020
Sensor, Oxygen
[10.2003 - 01.2007] RZB5# |
89465-36020 |
— | ||
|
89491
|
89491
89491-36091 Sensor, Engine Oil LevelENGINE OIL LEVEL [10.2003 - 01.2007] RZB5# |
89491-36091 |
US $305.76 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[10.2003 -] RZB5#,TRB53 |
89493-60010 |
from US $2.24 |
||
|
89615
|
89615
89615-26010 Sensor, Knock Control[10.2003 - 01.2007] RZB5# |
89615-26010 |
from US $213.37 |
||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $3.04 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
