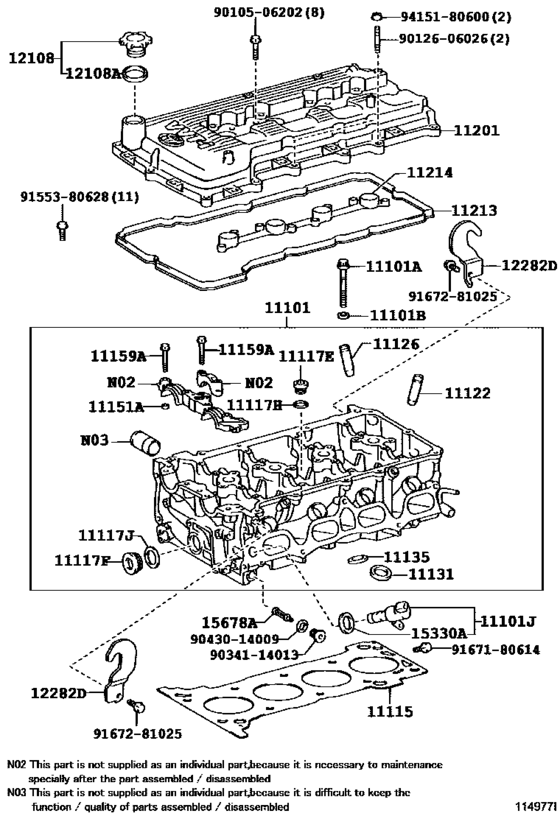

Cylinder Head ([08.2007 - ] (0708- )2TRFE) Diagram Toyota COASTER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- TRB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2007
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-75200
Head Sub-Assy, Cylinder
[08.2007 - 01.2014] 2TRFE..TRB40,50 |
11101-75200 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-75201
Head Sub-Assy, Cylinder
[08.2007 - 01.2014] 2TRFE..TRB40,50 |
11101-75201 |
— | ||
|
11101
|
11101
11101-75201
Head Sub-Assy, Cylinder
[02.2014 - 01.2015] 2TRFE..TRB40,50 |
11101-75201 |
— | ||
|
11101A
|
11101A
90910-02091
Bolt(For Cylinder Head Set)
[08.2007 - 03.2013] 2TRFE..TRB40,50 |
90910-02091 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[08.2007 - 03.2013] 2TRFE..TRB40,50 |
90910-02187 |
from US $3.84 |
||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[03.2013 - 01.2015] 2TRFE..TRB40,50 |
90910-02187 |
from US $3.84 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90201-11034 |
from US $0.94 |
||
|
11101J
|
11101J
15330-75010 Valve Assy, Camshaft Timing Oil Control[08.2007 - 08.2010] 2TRFE..TRB40,50 |
15330-75010 |
from US $75.08 |
||
|
11101J
|
11101J
15330-75020 Valve Assy, Camshaft Timing Oil Control[08.2010 - 11.2014] 2TRFE..TRB40,50 |
15330-75020 |
US $96.10 |
||
| replacement | |||||
|
11101J
|
11101J
15330-75030 Valve Assy, Camshaft Timing Oil Control[08.2010 - 11.2014] 2TRFE..TRB40,50 |
15330-75030 |
from US $60.51 |
||
|
11101J
|
11101J
15330-75030 Valve Assy, Camshaft Timing Oil Control[12.2014 - 01.2015] 2TRFE..TRB40,50 |
15330-75030 |
from US $60.51 |
||
|
11115
|
11115
11115-75050
Gasket, Cylinder Head
[08.2007 - 10.2007] 2TRFE..TRB40,50 |
11115-75050 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-75052 Gasket, Cylinder Head[08.2007 - 10.2007] 2TRFE..TRB40,50 |
11115-75052 |
from US $67.70 |
||
|
11115
|
11115
11115-75051
Gasket, Cylinder Head
[10.2007 - 01.2015] 2TRFE..TRB40,50 |
11115-75051 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-75052 Gasket, Cylinder Head[10.2007 - 01.2015] 2TRFE..TRB40,50 |
11115-75052 |
from US $67.70 |
||
|
11115
|
11115
11115-75052 Gasket, Cylinder Head[03.2016 -] 2TRFE..TRB40,50 |
11115-75052 |
from US $67.70 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90341-32002 Plug, W/head Straight Screw, No.2[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90341-32002 |
US $4.89 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90430-20004 |
from US $1.01 |
||
|
11117J
|
11117J
90430-32004 Gasket(For Cylinder Head Screw Plug)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90430-32004 |
US $0.93 |
||
|
11122
|
11122
11122-75020 Bush, Intake Valve Guide[08.2007 - 01.2015] 2TRFE..TRB40,50 STD |
11122-75020 |
from US $8.60 |
||
|
11122
|
11122
11123-75020 Bush, Intake Valve Guide[08.2007 - 01.2015] 2TRFE..TRB40,50 O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11126
|
11126
11122-75020 Bush, Intake Valve Guide[08.2007 - 01.2015] 2TRFE..TRB40,50 STD |
11122-75020 |
from US $8.60 |
||
|
11126
|
11126
11123-75020 Bush, Intake Valve Guide[08.2007 - 01.2015] 2TRFE..TRB40,50 O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11131
|
11131
11131-75080 Seat, Intake Valve[08.2007 - 02.2014] 2TRFE..TRB40,50 STD |
11131-75080 |
US $10.48 |
||
|
11131
|
11131
11131-75081 Seat, Intake Valve[02.2014 - 01.2015] 2TRFE..TRB40,50 STD |
11131-75081 |
US $9.46 |
||
|
11131
|
11131
11132-75080 Seat, Intake Valve[08.2007 - 02.2014] 2TRFE..TRB40,50 O/S 0.03 |
11132-75080 |
US $10.48 |
||
|
11131
|
11131
11132-75081 Seat, Intake Valve[02.2014 - 01.2015] 2TRFE..TRB40,50 O/S 0.03 |
11132-75081 |
US $9.46 |
||
|
11135
|
11135
11135-75100 Seat, Exhaust Valve[08.2007 - 01.2015] 2TRFE..TRB40,50 STD |
11135-75100 |
US $10.77 |
||
|
11135
|
11135
11136-75100 Seat, Exhaust Valve[08.2007 - 01.2015] 2TRFE..TRB40,50 O/S 0.03 |
11136-75100 |
US $11.53 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[08.2007 - 01.2015] 2TRFE..TRB40,50 L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90119-07013 |
US $1.31 |
||
|
11201
|
11201
11201-75070
Cover Sub-Assy, Cylinder Head
[08.2007 - 09.2009] 2TRFE..TRB40,50 |
11201-75070 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-75073
Cover Sub-Assy, Cylinder Head
[08.2007 - 09.2009] 2TRFE..TRB40,50 |
11201-75073 |
— | ||
|
11201
|
11201
11201-75071
Cover Sub-Assy, Cylinder Head
[09.2009 - 08.2011] 2TRFE..TRB40,50 |
11201-75071 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-75073
Cover Sub-Assy, Cylinder Head
[09.2009 - 08.2011] 2TRFE..TRB40,50 |
11201-75073 |
— | ||
|
11201
|
11201
11201-75072
Cover Sub-Assy, Cylinder Head
[08.2011 - 10.2013] 2TRFE..TRB40,50 |
11201-75072 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-75073
Cover Sub-Assy, Cylinder Head
[08.2011 - 10.2013] 2TRFE..TRB40,50 |
11201-75073 |
— | ||
|
11201
|
11201
11201-75073
Cover Sub-Assy, Cylinder Head
[10.2013 - 01.2015] 2TRFE..TRB40,50 |
11201-75073 |
— | ||
|
11213
|
11213
11213-75040
Gasket, Cylinder Head Cover
[08.2007 - 08.2008] 2TRFE..TRB40,50 |
11213-75040 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-75041 Gasket, Cylinder Head Cover[08.2007 - 08.2008] 2TRFE..TRB40,50 |
11213-75041 |
from US $15.35 |
||
|
11213
|
11213
11213-75041 Gasket, Cylinder Head Cover[08.2008 - 01.2015] 2TRFE..TRB40,50 |
11213-75041 |
from US $15.35 |
||
|
11214
|
11214
11214-75010
Gasket, Cylinder Head Cover, No.2
[08.2007 - 08.2008] 2TRFE..TRB40,50 |
11214-75010 |
— | ||
| replacement | |||||
|
11214
|
11214
11214-75012 Gasket, Cylinder Head Cover, No.2[08.2007 - 08.2008] 2TRFE..TRB40,50 |
11214-75012 |
from US $11.08 |
||
|
11214
|
11214
11214-75011
Gasket, Cylinder Head Cover, No.2
[08.2008 - 01.2011] 2TRFE..TRB40,50 |
11214-75011 |
— | ||
| replacement | |||||
|
11214
|
11214
11214-75012 Gasket, Cylinder Head Cover, No.2[08.2008 - 01.2011] 2TRFE..TRB40,50 |
11214-75012 |
from US $11.08 |
||
|
11214
|
11214
11214-75012 Gasket, Cylinder Head Cover, No.2[01.2011 - 01.2015] 2TRFE..TRB40,50 |
11214-75012 |
from US $11.08 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.2007 - 01.2015] 2TRFE..TRB40,50 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90430-37004 |
from US $1.35 |
||
|
12282D
|
12282D
12281-75040 Hanger, Engine, No.1[08.2007 - 02.2010] 2TRFE..TRB40,50 |
12281-75040 |
US $17.33 |
||
| replacement | |||||
|
12282D
|
12282D
12281-75050 Hanger, Engine, No.1[08.2007 - 02.2010] 2TRFE..TRB40,50 |
12281-75050 |
US $17.78 |
||
|
12282D
|
12282D
12281-75050 Hanger, Engine, No.1[02.2010 - 01.2015] 2TRFE..TRB40,50 |
12281-75050 |
US $17.78 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90099-14137 |
from US $2.22 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[08.2007 - 01.2015] 2TRFE..TRB40,50 |
15678-21010 |
from US $5.34 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.84 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.70 |
||
|
9034114013
|
9034114013
90341-14013 Plug, W/head Taper Screw, No.1 |
90341-14013 |
from US $1.92 |
||
|
9043014009
|
9043014009
90430-14009 Gasket(For Cylinder Head Screw Plug) |
90430-14009 |
US $1.28 |
||
|
9155380628
|
9155380628
91553-80628 BOLT FLANGE |
91553-80628 |
US $0.96 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
