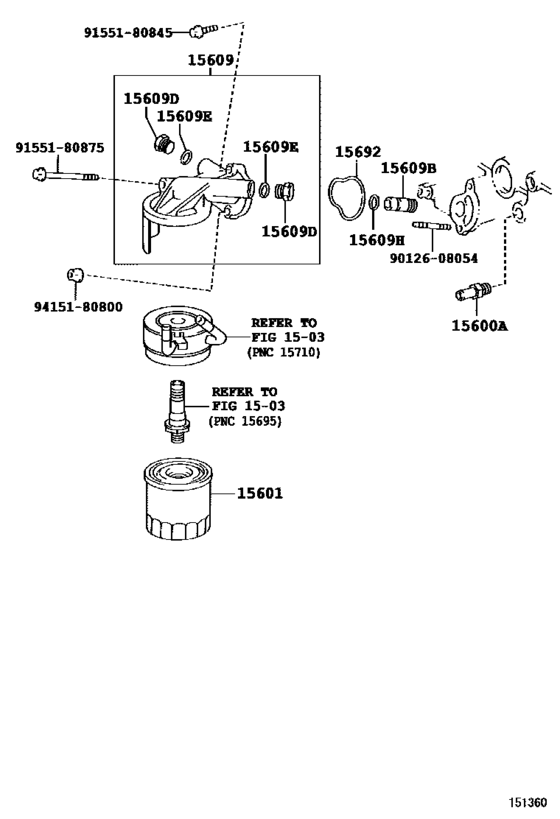

Oil Filter ([08.2007 - ] (0708- )2TRFE) Diagram Toyota COASTER
- Year
- 2007 - 2016
- Sales region
- General
- Frame
- TRB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- COOLER
- WC
- Model
- COASTER
- From
- 08.2007
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
90404-53001 Union(For Cylinder Block)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90404-53001 |
US $5.76 |
||
|
15601
|
15601
90915-20003
Oil Filter Sub-Assy (THAILAND)
[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90915-20003 |
— | ||
| replacements | |||||
|
15601
|
15601
90915-YZZD2 Oil Filter (THAILAND)Made in Thailand [08.2007 - 01.2015] 2TRFE..TRB40,50 |
90915-YZZD2 |
US $7.43 |
||
|
15601
|
15601
90915-20005 Oil Filter (THAILAND)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90915-20005 |
from US $18.76 |
||
|
15609
|
15609
15609-75070 Bracket Sub-Assy, Oil FilterOIL FILTER [08.2007 - 01.2015] 2TRFE..TRB40,50 |
15609-75070 |
from US $79.54 |
||
|
15609B
|
15609B
90404-19017 Union(For Oil Filter)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90404-19017 |
US $6.40 |
||
|
15609D
|
15609D
90341-22002 Plug, W/head Straight Screw(For Oil Filter Bracket)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90341-22002 |
US $2.77 |
||
|
15609E
|
15609E
90430-22011 Gasket, Straight Screw Plug No.3(For Cylinder Block)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90430-22011 |
from US $1.54 |
||
|
15609H
|
15609H
90301-17017 Ring, O(For Oil Filter Bracket)[08.2007 - 01.2015] 2TRFE..TRB40,50 |
90301-17017 |
from US $2.67 |
||
|
15692
|
15692
15692-75011 Gasket, Oil Filter[08.2007 - 01.2015] 2TRFE..TRB40,50 |
15692-75011 |
from US $3.33 |
||
|
9012608054
|
9012608054
90126-08054 STUD HEXALOBULAR |
90126-08054 |
US $1.60 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
US $1.76 |
||
|
9155180875
|
9155180875
91551-80875 Bolt, Compressor, No.1 |
91551-80875 |
US $1.92 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
