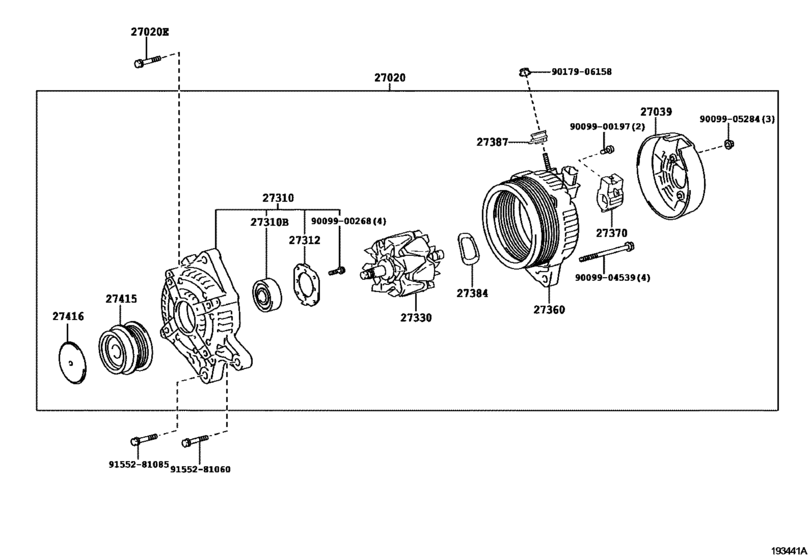

Alternator ([06.2010 - ] 12V 100A (1006- )2TRFE..GCC) Diagram Toyota COASTER
- Year
- 2007 - 2016
- Sales region
- Europe
- Frame
- TRB40
- grade
- STD
- Roof
- SRF
- ENGINE
- 2TRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- COOLER
- WC
- Model
- COASTER
- From
- 08.2007
- To
- 12.2016
- Gear Shift Type
- 5F
- Seating Capacity
- 26S
- Vehicle Model
- Coaster
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-75310 Alternator Assy[08.2007 - 10.2009] 2TRFE..TRB40,50 12V 80A |
27060-75310 |
US $1,371.55 |
||
| replacement | |||||
|
27020
|
27020
27060-75311 Alternator Assy[08.2007 - 10.2009] 2TRFE..TRB40,50 12V 80A |
27060-75311 |
from US $814.63 |
||
|
27020
|
27020
27060-75311 Alternator Assy[11.2009 - 05.2014] 2TRFE..TRB40,50 12V 80A |
27060-75311 |
from US $814.63 |
||
|
27020
|
27020
27060-75460 Alternator Assy[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC 12V 100A |
27060-75460 |
US $1,019.30 |
||
|
27020E
|
27020E
91552-81040 Bolt(For Alternator)[08.2007 - 04.2010] 2TRFE..TRB40,50 |
91552-81040 |
US $1.92 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27039-31390 |
— | ||
|
27310
|
27310
27310-75270
Frame Assy, Drive End, Alternator
[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27310-75270 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27312-72100 |
US $3.92 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC 12V 80A |
27330-30070 |
— | ||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [04.2009 - 01.2015] 2TRFE..TRB40,50 |
27330-30130 |
US $246.36 |
||
|
27330
|
27330
27330-62220
Rotor Assy, Alternator
[08.2007 - 04.2009] 2TRFE..TRB40,50 |
27330-62220 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [08.2007 - 04.2009] 2TRFE..TRB40,50 |
27330-30130 |
US $246.36 |
||
|
27360
|
27360
27360-75410
Coil Assy, Alternator
[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27360-75410 |
— | ||
|
27370
|
27370
27370-23120 Holder Assy, Alternator Brush[08.2007 - 01.2015] 2TRFE..TRB40,50 12V 80A |
27370-23120 |
from US $16.28 |
||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC 12V 100A |
27370-58460 |
from US $16.25 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[06.2010 - 01.2015] 2TRFE..TRB40,50..GCC |
27387-20130 |
US $4.02 |
||
|
27415
|
27415
27415-0W062
Pulley, Alternator W/clutch
[05.2010 - 09.2013] 2TRFE..TRB40,50..GCC |
27415-0W062 |
— | ||
| replacements | |||||
|
27415
|
27415
27415-0W063 Pulley, Alternator W/clutch[05.2010 - 09.2013] 2TRFE..TRB40,50..GCC |
27415-0W063 |
from US $64.82 |
||
|
27415
|
27415
27416-0W050 Cap, Alternator Pulley[05.2010 - 09.2013] 2TRFE..TRB40,50..GCC |
27416-0W050 |
from US $4.19 |
||
|
27415
|
27415
27415-0W063 Pulley, Alternator W/clutch[10.2013 - 01.2015] 2TRFE..TRB40,50..GCC |
27415-0W063 |
from US $64.82 |
||
|
27416
|
27416
27416-0W020 Cap, Alternator Pulley[05.2010 - 10.2013] 2TRFE..TRB40,50..GCC |
27416-0W020 |
US $5.44 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[10.2013 - 01.2015] 2TRFE..TRB40,50..GCC |
27416-0W050 |
from US $4.19 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9155281060
|
9155281060
91552-81060 Bolt, No.3(For Alternator) |
91552-81060 |
from US $1.40 |
||
|
9155281085
|
9155281085
91552-81085 Bolt(For Alternator) |
91552-81085 |
US $3.36 |
||
