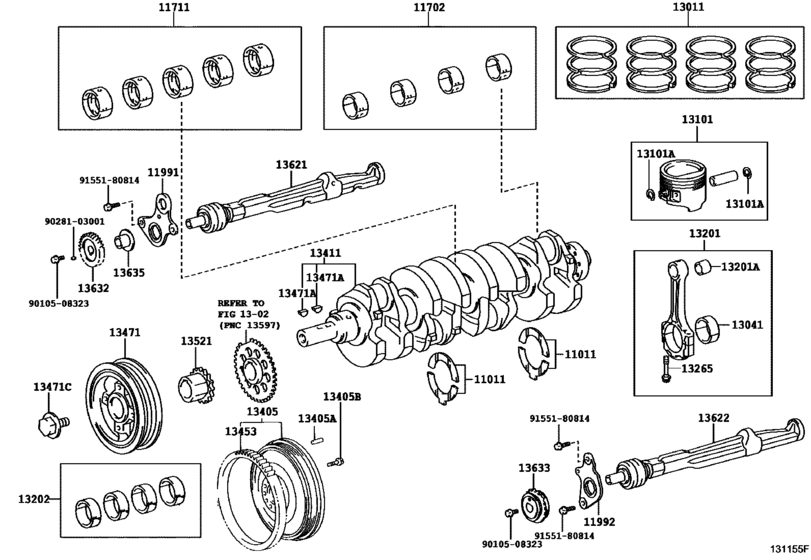

Crankshaft & Piston ([01.2013 - ] (1301- )3TRFE) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-75020 Washer Set, Crankshaft Thrust[01.2013 - 12.2014] 3TRFE..TRB53 STD |
11011-75020 |
from US $23.56 |
||
|
11011
|
11011
11011-75021
Washer Set, Crankshaft Thrust
[01.2015 - 07.2015] 3TRFE..TRB53 STD |
11011-75021 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-75020 Washer Set, Crankshaft Thrust[01.2015 - 07.2015] 3TRFE..TRB53 STD |
11011-75020 |
from US $23.56 |
||
|
11702
|
11702
11704-75031
Bearing Set, Crankshaft
[01.2013 - 06.2014] 3TRFE..TRB53 U/S 0.25 |
11704-75031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[01.2013 - 06.2014] 3TRFE..TRB53 U/S 0.25 |
11704-75033 |
from US $99.20 |
||
|
11702
|
11702
11704-75032 Bearing Set, Crankshaft[06.2014 - 01.2015] 3TRFE..TRB53 U/S 0.25 |
11704-75032 |
US $202.38 |
||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[06.2014 - 01.2015] 3TRFE..TRB53 U/S 0.25 |
11704-75033 |
from US $99.20 |
||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[01.2015 - 07.2015] 3TRFE..TRB53 U/S 0.25 |
11704-75033 |
from US $99.20 |
||
|
11711
|
11711
11701-75031-01
Bearing, Crankshaft
[01.2013 - 05.2014] 3TRFE..TRB53 MARK1,REFER REPAIR MANUAL |
11701-75031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-01 Bearing, Crankshaft[01.2013 - 05.2014] 3TRFE..TRB53 MARK1,REFER REPAIR MANUAL |
11701-75033-01 |
from US $17.84 |
||
|
11711
|
11711
11701-75031-02
Bearing, Crankshaft
[01.2013 - 05.2014] 3TRFE..TRB53 MARK2,REFER REPAIR MANUAL |
11701-75031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-02 Bearing, Crankshaft[01.2013 - 05.2014] 3TRFE..TRB53 MARK2,REFER REPAIR MANUAL |
11701-75033-02 |
from US $17.28 |
||
|
11711
|
11711
11701-75031-03
Bearing, Crankshaft
[01.2013 - 05.2014] 3TRFE..TRB53 MARK3,REFER REPAIR MANUAL |
11701-75031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-03 Bearing, Crankshaft[01.2013 - 05.2014] 3TRFE..TRB53 MARK3,REFER REPAIR MANUAL |
11701-75033-03 |
from US $17.16 |
||
|
11711
|
11711
11701-75032-01
Bearing, Crankshaft
[06.2014 - 12.2014] 3TRFE..TRB53 MARK 1,REFER REPAIR MANUAL |
11701-75032-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-01 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 1,REFER REPAIR MANUAL |
11701-75033-01 |
from US $17.84 |
||
|
11711
|
11711
11701-75032-02 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 2,REFER REPAIR MANUAL |
11701-75032-02 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11701-75033-02 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 2,REFER REPAIR MANUAL |
11701-75033-02 |
from US $17.28 |
||
|
11711
|
11711
11701-75032-03 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 3,REFER REPAIR MANUAL |
11701-75032-03 |
US $33.63 |
||
| replacement | |||||
|
11711
|
11711
11701-75033-03 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 3,REFER REPAIR MANUAL |
11701-75033-03 |
from US $17.16 |
||
|
11711
|
11711
11701-75032-04
Bearing, Crankshaft
[06.2014 - 12.2014] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
11701-75032-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-04
Bearing, Crankshaft
[06.2014 - 12.2014] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
11701-75033-04 |
— | ||
|
11711
|
11711
11701-75032-05
Bearing, Crankshaft
[06.2014 - 12.2014] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
11701-75032-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-75033-05 Bearing, Crankshaft[06.2014 - 12.2014] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
11701-75033-05 |
US $39.31 |
||
|
11711
|
11711
11701-75033-01 Bearing, Crankshaft[01.2015 - 07.2015] 3TRFE..TRB53 MARK 1,REFER REPAIR MANUAL |
11701-75033-01 |
from US $17.84 |
||
|
11711
|
11711
11701-75033-02 Bearing, Crankshaft[01.2015 - 07.2015] 3TRFE..TRB53 MARK 2,REFER REPAIR MANUAL |
11701-75033-02 |
from US $17.28 |
||
|
11711
|
11711
11701-75033-03 Bearing, Crankshaft[01.2015 - 07.2015] 3TRFE..TRB53 MARK 3,REFER REPAIR MANUAL |
11701-75033-03 |
from US $17.16 |
||
|
11711
|
11711
11701-75033-04
Bearing, Crankshaft
[01.2015 - 07.2015] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
11701-75033-04 |
— | ||
|
11711
|
11711
11701-75033-05 Bearing, Crankshaft[01.2015 - 07.2015] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
11701-75033-05 |
US $39.31 |
||
|
11991
|
11991
11991-75010 Washer, Balanceshaft Thrust[01.2013 - 07.2015] 3TRFE..TRB53 |
11991-75010 |
from US $10.47 |
||
|
11992
|
11992
11992-75010 Washer, Balanceshaft Thrust, No.2[01.2013 - 07.2015] 3TRFE..TRB53 |
11992-75010 |
from US $9.96 |
||
|
13011
|
13011
13011-75110 Ring Set, Piston[01.2013 - 07.2015] 3TRFE..TRB53 STD |
13011-75110 |
from US $139.56 |
||
|
13011
|
13011
13013-75110 Ring Set, Piston (0.50)[01.2013 - 07.2015] 3TRFE..TRB53 O/S 0.50 |
13013-75110 |
from US $175.91 |
||
|
13041
|
13041
13041-75050-04
Bearing, Connecting Rod
[01.2013 - 12.2014] 3TRFE..TRB53 MARK4,REFER REPAIR MANUAL |
13041-75050-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-75070-04 Bearing, Connecting Rod[01.2013 - 12.2014] 3TRFE..TRB53 MARK4,REFER REPAIR MANUAL |
13041-75070-04 |
from US $12.40 |
||
|
13041
|
13041
13041-75050-05
Bearing, Connecting Rod
[01.2013 - 12.2014] 3TRFE..TRB53 MARK5,REFER REPAIR MANUAL |
13041-75050-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-75070-05 Bearing, Connecting Rod[01.2013 - 12.2014] 3TRFE..TRB53 MARK5,REFER REPAIR MANUAL |
13041-75070-05 |
from US $12.64 |
||
|
13041
|
13041
13041-75050-06 Bearing, Connecting Rod[01.2013 - 12.2014] 3TRFE..TRB53 MARK6,REFER REPAIR MANUAL |
13041-75050-06 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-75070-06 Bearing, Connecting Rod[01.2013 - 12.2014] 3TRFE..TRB53 MARK6,REFER REPAIR MANUAL |
13041-75070-06 |
from US $12.81 |
||
|
13041
|
13041
13041-75052-04
Bearing, Connecting Rod
[01.2015 - 07.2015] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
13041-75052-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-75070-04 Bearing, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
13041-75070-04 |
from US $12.40 |
||
|
13041
|
13041
13041-75052-05 Bearing, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
13041-75052-05 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-75070-05 Bearing, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
13041-75070-05 |
from US $12.64 |
||
|
13041
|
13041
13041-75052-06 Bearing, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 MARK 6,REFER REPAIR MANUAL |
13041-75052-06 |
US $20.38 |
||
| replacement | |||||
|
13041
|
13041
13041-75070-06 Bearing, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 MARK 6,REFER REPAIR MANUAL |
13041-75070-06 |
from US $12.81 |
||
|
13041
|
13041
13041-75070-04 Bearing, Connecting Rod[01.2016 -] 3TRFE..TRB53 MARK 4,REFER REPAIR MANUAL |
13041-75070-04 |
from US $12.40 |
||
|
13041
|
13041
13041-75070-05 Bearing, Connecting Rod[01.2016 -] 3TRFE..TRB53 MARK 5,REFER REPAIR MANUAL |
13041-75070-05 |
from US $12.64 |
||
|
13041
|
13041
13041-75070-06 Bearing, Connecting Rod[01.2016 -] 3TRFE..TRB53 MARK 6,REFER REPAIR MANUAL |
13041-75070-06 |
from US $12.81 |
||
|
13101
|
13101
13101-75130 Piston Sub-Assy, W/pin[01.2013 - 07.2015] 3TRFE..TRB53 STD |
13101-75130 |
from US $54.97 |
||
|
13101
|
13101
13103-75130 Piston Sub-Assy, W/pin[01.2013 - 07.2015] 3TRFE..TRB53 O/S 0.50 |
13103-75130 |
from US $69.36 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[01.2013 - 07.2015] 3TRFE..TRB53 |
90520-22025 |
from US $1.76 |
||
|
13201
|
13201
13201-79615 Rod Sub-Assy, ConnectingCONNECTING [01.2013 - 01.2015] 3TRFE..TRB53 |
13201-79615 |
US $163.07 |
||
| replacement | |||||
|
13201
|
13201
13201-79617 Rod Sub-Assy, Connecting[01.2013 - 01.2015] 3TRFE..TRB53 |
13201-79617 |
from US $147.06 |
||
|
13201
|
13201
13201-79616
Rod Sub-Assy, Connecting
[01.2015 - 07.2015] 3TRFE..TRB53 |
13201-79616 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-79617 Rod Sub-Assy, Connecting[01.2015 - 07.2015] 3TRFE..TRB53 |
13201-79617 |
from US $147.06 |
||
|
13201
|
13201
13201-79617 Rod Sub-Assy, Connecting[01.2016 -] 3TRFE..TRB53 |
13201-79617 |
from US $147.06 |
||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[01.2013 - 07.2015] 3TRFE..TRB53 |
90999-73144 |
from US $2.52 |
||
|
13202
|
13202
13204-75050
Bearing Set, Connecting Rod
[01.2013 - 01.2015] 3TRFE..TRB53 U/S 0.25 |
13204-75050 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[01.2013 - 01.2015] 3TRFE..TRB53 U/S 0.25 |
13204-75070 |
from US $58.89 |
||
|
13202
|
13202
13204-75052 Bearing Set, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 U/S 0.25 |
13204-75052 |
US $99.01 |
||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[01.2015 - 07.2015] 3TRFE..TRB53 U/S 0.25 |
13204-75070 |
from US $58.89 |
||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[01.2016 -] 3TRFE..TRB53 U/S 0.25 |
13204-75070 |
from US $58.89 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[01.2013 - 07.2015] 3TRFE..TRB53 |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[01.2013 - 07.2015] 3TRFE..TRB53 |
13265-28020 |
from US $3.08 |
||
|
13405
|
13405
13405-75060 Flywheel Sub-Assy[01.2013 - 07.2015] 3TRFE..TRB53 |
13405-75060 |
from US $256.84 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.2013 - 07.2015] 3TRFE..TRB53 L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90910-02116 Bolt, Flywheel Setting[01.2013 - 07.2015] 3TRFE..TRB53 |
90910-02116 |
from US $1.92 |
||
|
13411
|
13411
13401-75040
Crankshaft
[01.2013 - 08.2014] 3TRFE..TRB53 |
13401-75040 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-75041
Crankshaft
[01.2013 - 08.2014] 3TRFE..TRB53 |
13401-75041 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-75021 Crankshaft[01.2013 - 08.2014] 3TRFE..TRB53 |
13401-75021 |
US $1,034.34 |
||
|
13411
|
13411
13401-75041
Crankshaft
[08.2014 - 07.2015] 3TRFE..TRB53 |
13401-75041 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-75021 Crankshaft[08.2014 - 07.2015] 3TRFE..TRB53 |
13401-75021 |
US $1,034.34 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.2013 - 07.2015] 3TRFE..TRB53 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-75050 Pulley, Crankshaft[01.2013 - 07.2015] 3TRFE..TRB53 |
13408-75050 |
from US $159.84 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[01.2013 - 07.2015] 3TRFE..TRB53 |
90280-05005 |
from US $0.98 |
||
|
13471C
|
13471C
90105-16041 Bolt(For Crankshaft Pulley Set)[01.2013 - 07.2015] 3TRFE..TRB53 |
90105-16041 |
from US $5.05 |
||
|
13521
|
13521
13521-75020
Gear Or Sprocket, Crankshaft Timing
[01.2013 - 05.2014] 3TRFE..TRB53 |
13521-75020 |
— | ||
| replacement | |||||
|
13521
|
13521
13521-75021 Gear Or Sprocket, Crankshaft Timing[01.2013 - 05.2014] 3TRFE..TRB53 |
13521-75021 |
from US $30.07 |
||
|
13521
|
13521
13521-75021 Gear Or Sprocket, Crankshaft Timing[05.2014 - 07.2015] 3TRFE..TRB53 |
13521-75021 |
from US $30.07 |
||
|
13621
|
13621
13621-75020 Balanceshaft, No.1[01.2013 - 07.2015] 3TRFE..TRB53 |
13621-75020 |
from US $51.69 |
||
|
13622
|
13622
13622-75020 Balanceshaft, No.2[01.2013 - 07.2015] 3TRFE..TRB53 |
13622-75020 |
from US $51.09 |
||
|
13632
|
13632
13632-75010 Gear, Balanceshaft Driven, No.1[01.2013 - 07.2015] 3TRFE..TRB53 |
13632-75010 |
from US $8.21 |
||
|
13633
|
13633
13633-75010 Gear, Balanceshaft Driven, No.2[01.2013 - 07.2015] 3TRFE..TRB53 |
13633-75010 |
from US $31.16 |
||
|
13635
|
13635
13635-75010 Spacer, Balanceshaft Thrust[01.2013 - 07.2015] 3TRFE..TRB53 |
13635-75010 |
from US $2.48 |
||
|
9010508323
|
9010508323
90105-08323 BOLT WASHER BASED |
90105-08323 |
US $0.58 |
||
|
9028103001
|
9028103001
90281-03001 KEY SLIDING |
90281-03001 |
from US $0.17 |
||
|
9155180814
|
9155180814
91551-80814 Bolt, Hexagon (For Rear Spring Seat Bolt) |
91551-80814 |
US $1.28 |
||
