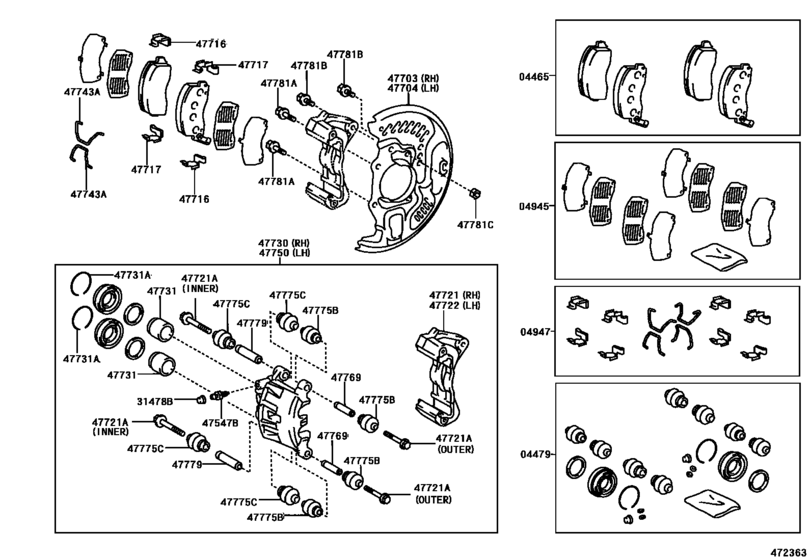

Front Disc Brake Caliper & Dust Cover ([01.2013 - ] (1301- )) Diagram Toyota COASTER
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRB53
- grade
- STD
- ENGINE
- 3TRFE
- TRANSMISSION
- MTM
- Model
- COASTER (CHINA)
- From
- 01.2013
- Seating Capacity
- 20S
- Vehicle Model
- Coaster
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-36020 Pad Kit, Disc Brake, Front[01.2013 - 07.2015] GRB53,TRB53,XZB53 MARK AISIN PC519 |
04465-36020 |
from US $165.85 |
||
|
04479
|
04479
04479-36020 Cylinder Kit, Disc Brake, Front[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
04479-36020 |
from US $63.84 |
||
|
04945
|
04945
04945-36010 Shim Kit, Anti Squeal, Front[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
04945-36010 |
from US $20.06 |
||
|
04947
|
04947
04947-36020 Fitting Kit, Disc Brake, Front[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
04947-36020 |
US $42.10 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
31478-30010 |
from US $1.66 |
||
|
47547B
|
47547B
47547-12010 Plug, Bleeder(For Release Cylinder)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47547-12010 |
from US $2.46 |
||
|
47703
|
47703
47703-0S010
Cover Sub-Assy, Disc Brake Dust, Front Rh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47703-0S010 |
— | ||
|
47704
|
47704
47704-0S010
Cover Sub-Assy, Disc Brake Dust, Front Lh
[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47704-0S010 |
— | ||
|
47716
|
47716
47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47716-36020 |
US $4.16 |
||
|
47717
|
47717
47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47717-36020 |
US $4.16 |
||
|
47721
|
47721
47721-36030 Mounting, Front Disc Brake Cylinder, Rh[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47721-36030 |
US $78.70 |
||
|
47721A
|
47721A
90119-08992 Bolt(For Front Disc Brake Cylinder Slide)[01.2013 - 07.2015] GRB53,TRB53,XZB53 *8-1.25PX62-30 |
90119-08992 |
from US $1.48 |
||
|
47721A
|
47721A
90119-12256 Bolt(For Front Disc Brake Cylinder Slide)[01.2013 - 07.2015] GRB53,TRB53,XZB53 *12-1.25PX75-30 |
90119-12256 |
from US $2.93 |
||
|
47722
|
47722
47722-36030 Mounting, Front Disc Brake Cylinder, Lh[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47722-36030 |
US $78.70 |
||
|
47730
|
47730
47730-36030 Cylinder Assy, Front Disc Brake, Rh[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47730-36030 |
US $506.69 |
||
|
47731
|
47731
47731-36020 Piston, Front Disc Brake[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47731-36020 |
from US $25.08 |
||
|
47731A
|
47731A
90522-61001 Ring, Set(For Front Disc Brake Piston)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90522-61001 |
US $0.93 |
||
|
47743A
|
47743A
47743-36020 Spring, Anti-Squeal(For Front Disc Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47743-36020 |
from US $1.17 |
||
|
47750
|
47750
47750-36030 Cylinder Assy, Disc Brake, Lh[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47750-36030 |
from US $475.43 |
||
|
47769
|
47769
47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47769-36030 |
US $5.28 |
||
|
47775B
|
47775B
47775-36040 Boot, Bush Dust, No.1[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47775-36040 |
US $4.48 |
||
|
47775C
|
47775C
47775-36050 Boot, Bush Dust, No.1[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47775-36050 |
US $7.36 |
||
|
47779
|
47779
47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
47779-36010 |
from US $10.40 |
||
|
47781A
|
47781A
90105-16044 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.2013 - 07.2015] GRB53,TRB53,XZB53 |
90105-16044 |
US $5.92 |
||
|
47781B
|
47781B
90105-16045 Bolt(For Backing Plate To Steering Knuckle Arm Setting)[01.2013 - 07.2015] GRB53,TRB53,XZB53 *16-1.5PX35.5-26.5 |
90105-16045 |
US $3.84 |
||
|
47781C
|
47781C
90170-C0012
Nut(For Dust Cover To Steering Knuckle Arm Setting)
[09.2013 - 07.2015] GRB53,TRB53,XZB53 |
90170-C0012 |
— | ||
|
47781C
|
47781C
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)[01.2013 - 09.2013] GRB53,TRB53 |
94130-01602 |
from US $1.05 |
